Why Choose the ABB ZW376 WR Vertical Profile 10RE?

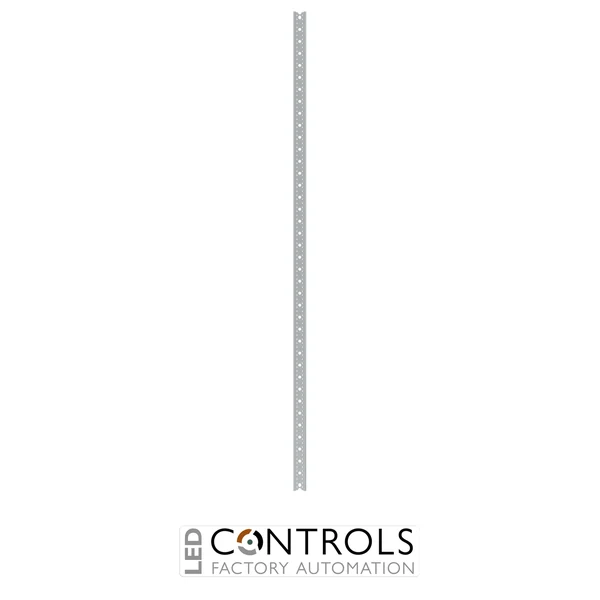

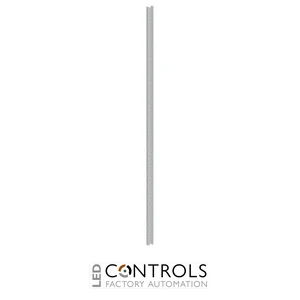

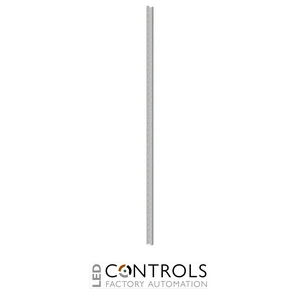

The ABB ZW376 is a vertical WR profile rail from the ABB CombiLine interior expansion system, designed as a structural component for compatible WR mounting frames. Supplied under ABB order code 2CPX041859R9999, the profile provides a coordinated solution for building and adapting the internal mounting structure of ABB sub-distribution assemblies.
Designed for a height of 10 RE, the ZW376 corresponds to a nominal system height of 1500 mm. It is specifically intended for height compensation when transverse profile rails are used, enabling the internal WR mounting structure to be configured to suit the required modular field arrangement.
The ZW376 is manufactured from steel with a galvanised surface and is installed vertically using screw mounting. Supplied as an unassembled kit, it integrates with the ABB WR mounting frame system and provides panel builders with a manufacturer-matched structural component for professional CombiLine distribution-board construction.
Key Advantages
- Purpose-designed vertical profile rail for ABB WR mounting frames.
- 10 RE configuration corresponds to a 1500 mm system height.
- Supports height compensation when transverse profile rails are used.
- Manufactured from steel for robust structural integration.
- Galvanised surface provides a durable finish for internal panel construction.
- Part of the coordinated ABB CombiLine interior expansion system.
Key Features
- ABB ZW376 WR vertical profile rail.
- Designed for compatible WR mounting frames.
- 10 RE system height.
- Nominal height of 1500 mm.
- Vertical installation orientation.
- Steel construction.
- Galvanised surface finish.
- Screw-mounted installation.
- Used for height compensation with transverse profile rails.
- Supplied as an unassembled kit.
- Packaging quantity of 1 piece.
- Part of ABB’s CombiLine sub-distribution system.
Structural Integration for ABB WR Mounting Frames
The ABB ZW376 forms part of the structural framework used to configure CombiLine WR mounting systems. Its 10 RE / 1500 mm format provides the vertical profile required for assemblies of the corresponding system height and supports height compensation where transverse profile rails are incorporated into the mounting structure.
Using manufacturer-matched WR profile components helps maintain a coordinated internal mounting arrangement when constructing modular distribution assemblies. The ZW376’s steel construction, galvanised finish and screw-mounted design make it suitable for permanent integration into compatible ABB WR mounting frames.
Typical Applications
- ABB CombiLine sub-distribution assemblies.
- WR mounting-frame construction.
- 10 RE / 1500 mm internal mounting structures.
- Height compensation with transverse profile rails.
- Commercial and industrial distribution boards.
- Professional panel-building and switchboard assembly.
