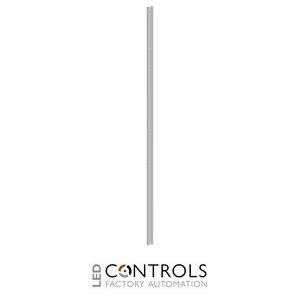

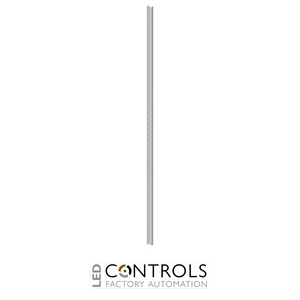

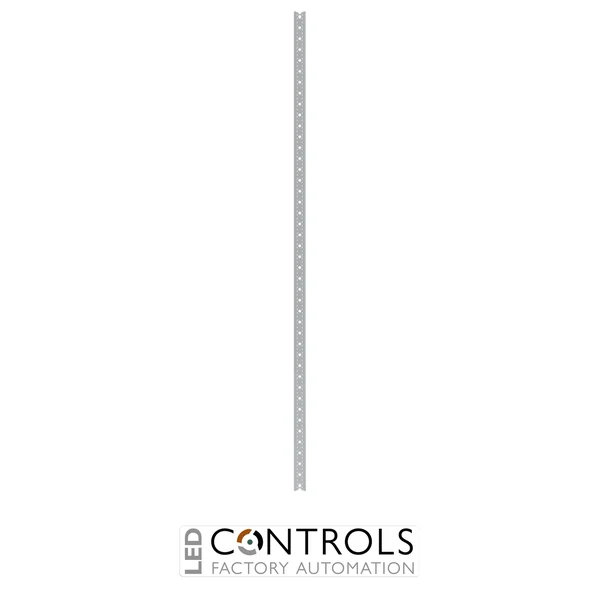

2CPX041860R9999 ABB ZW377 WR Vertical Profile 11RE

2CPX041860R9999 ABB ZW377 WR Vertical Profile 11RE

ABB ZW377 is an 11 RE, 1650 mm vertical WR profile rail designed for height compensation with transverse profile rails in compatible ABB CombiLine N mounting-frame assemblies.

SKU: 2CPX041860R9999Alt SKU: ZW377MPN: 2CPX041860R9999
Price
List Price £41.17 ex VAT
Your Price (ex VAT)
£41.17
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £41.17
Trade pricing is personalised to your account

Manufacturer Lead Time

£41.17

Why Choose the ABB ZW377 WR Vertical Profile 11RE?

The ABB ZW377 is a vertical WR profile rail for the ABB CombiLine N interior expansion system. Supplied under ABB order code 2CPX041860R9999, it forms part of the WR mounting-frame structure used to configure compatible ABB sub-distribution assemblies.

Designed for a height of 11 RE, the ZW377 corresponds to a system height of 1650 mm. The vertical profile is specifically intended for height compensation when transverse profile rails are used, allowing the WR mounting structure to be divided and configured to suit the required internal field arrangement.

The ZW377 is supplied as a kit for installation within the WR mounting-frame system. Its manufacturer-matched dimensions and modular 11 RE format provide panel builders with a coordinated structural component for constructing organised CombiLine N interiors without substituting non-system mounting parts.

Key Advantages

  • Purpose-designed vertical profile rail for ABB WR mounting frames.
  • 11 RE format corresponds to a system height of 1650 mm.
  • Designed for height compensation with transverse profile rails.
  • Supports structured division of compatible WR mounting-frame interiors.
  • Supplied as a dedicated ABB installation kit.
  • Part of the coordinated CombiLine N sub-distribution system.

Key Features

  • ABB ZW377 WR vertical profile rail.
  • Designed for compatible WR mounting frames.
  • 11 RE system format.
  • 1650 mm profile height.
  • Vertical installation orientation.
  • Supports height compensation in divided mounting-frame configurations.
  • Used in conjunction with transverse profile rails.
  • Part of the ABB CombiLine N interior expansion system.
  • Kit version for installation during panel assembly.
  • Corresponding factory-mounted version: ZWM377.
  • Supplied as 1 piece.

Structural Integration for ABB WR Mounting Frames

The ABB ZW377 provides the vertical profile required for an 11 RE / 1650 mm WR mounting-frame configuration. ABB specifies the vertical WR profile range for height compensation when transverse profile rails are incorporated into the mounting structure, helping create correctly divided internal fields for modular equipment installation.

Using the matching CombiLine N structural components allows the mounting frame to remain coordinated with ABB’s modular dimensions. The ZW377 is the installation-kit version for the 11 RE size, while ZWM377 is the corresponding version supplied mounted and installed in the cabinet.

Typical Applications

  • ABB CombiLine N sub-distribution assemblies.
  • WR mounting-frame construction and expansion.
  • 11 RE / 1650 mm mounting-frame configurations.
  • Height compensation with transverse profile rails.
  • Internal field division in low-voltage distribution panels.
  • Professional panel-building and switchboard assembly.

Technical Specifications

Tick the specs you need, then view products that match.

Product Series S&J CombiLine N
Device Type Mounting / Expansion Module
Series CombiLine N
Product type WR vertical profile rail
Application WR mounting-frame system
Raster units 11 RE
Height 1650 mm
Installation orientation Vertical
Primary function Height compensation when using transverse profile rails
Supply version Kit for installation
Package quantity 1 piece
Corresponding mounted version ZWM377
Mounted-version order code 2CPX041442R9999
ABB order code 2CPX041860R9999
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB ZW377?

The ABB ZW377 is an 11 RE vertical WR profile rail designed for the mounting-frame structure of compatible ABB CombiLine N sub-distribution assemblies.

What height is the ABB ZW377?

The ZW377 has a specified height of 1650 mm, corresponding to an 11 RE CombiLine N configuration.

What is the ZW377 used for?

The ZW377 is used for height compensation when transverse profile rails are installed within the ABB WR mounting-frame system.

Is the ZW377 installed vertically?

Yes. The ZW377 is a vertical WR profile rail used as part of the internal mounting-frame structure.

Is there a factory-mounted version of the ZW377?

Yes. The corresponding mounted and cabinet-installed version is ZWM377, ABB order code 2CPX041442R9999.

How many ZW377 profiles are supplied?

The ZW377 kit has a package quantity of one vertical profile rail.

Is the ZW377 part of the ABB CombiLine N system?

Yes. The ZW377 is part of the ABB CombiLine N interior expansion system and is intended for compatible WR mounting-frame assemblies.

What is the ABB order code for the ZW377?

The ABB order code for the ZW377 WR Vertical Profile 11RE is 2CPX041860R9999.

Trusted by Panel Builders and Electrical Professionals

ABB CombiLine N mounting-frame components provide panel builders, contractors and electrical engineers with coordinated structural parts for constructing organised, modular and professional low-voltage sub-distribution assemblies.
