Why Choose the ABB MC204HS SMISSLINE TP Module?

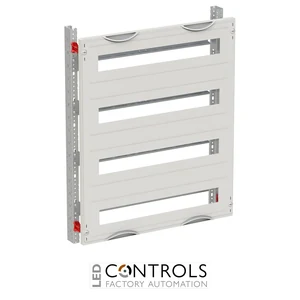

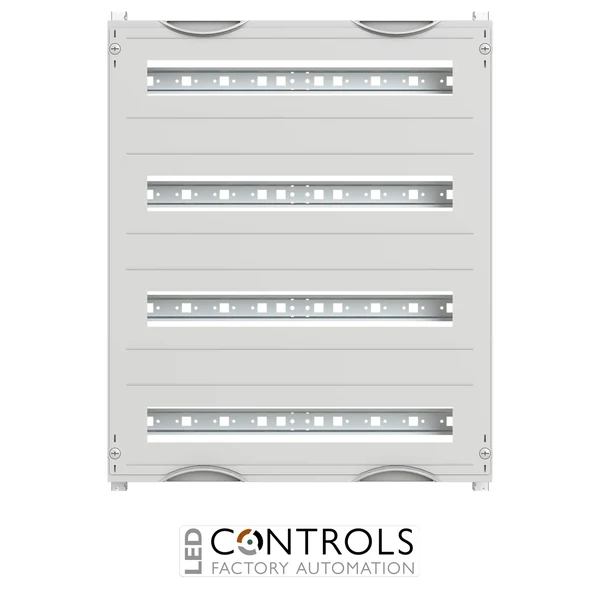

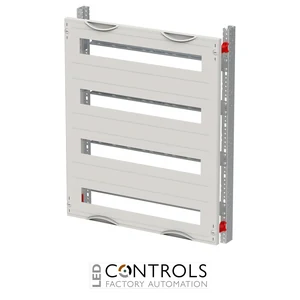

The ABB MC204HS is a modular SMISSLINE TP interior expansion module designed for horizontal device installation within compatible ABB CombiLine sub-distribution assemblies. Supplied under ABB order code 2CPX042136R9999, it provides a factory-mounted cabinet solution for integrating the SMISSLINE TP plug-in system into professional low-voltage distribution boards.
Designed for horizontal SMISSLINE TP device arrangement, the MC204HS incorporates 35 × 15 mm DIN rails and provides a rail spacing of 150 mm. The module is suitable for both EDF and WR mounting-frame systems, enabling structured integration into compatible ABB cabinet configurations while supporting efficient installation and organisation of distribution equipment.
The MC204HS has a height of 4 RE / 600 mm, a width of 2 PW / 500 mm and accommodates a SMISSLINE TP socket-base arrangement of 4 × 22 space units. It is intended for cabinets from 215 mm depth and is supplied mounted in the cabinet, with the required EDF or WR mounting frame ordered separately.
Key Advantages
- Purpose-designed SMISSLINE TP module for horizontal device arrangement.
- 2-panel-width / 500 mm format for modular sub-distribution cabinets.
- Provides 4 × 22 SMISSLINE TP space units for device installation.
- Integrated 35 × 15 mm DIN rails support structured equipment mounting.
- 150 mm rail spacing provides an organised modular installation layout.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB MC204HS SMISSLINE TP interior expansion module.
- Designed for horizontal device installation.
- 4 RE / 600 mm module height.
- 2 PW / 500 mm module width.
- 4 × 22 space-unit socket-base configuration.
- 35 × 15 mm DIN rail expansion system.
- 150 mm distance between DIN rails.
- Suitable from a cabinet depth of 215 mm.
- Plastic cover with cut-out and RAL 7035 finish.
- ABB order code 2CPX042136R9999.
Flexible SMISSLINE TP Integration for Sub-Distribution Systems
The ABB SMISSLINE TP system is designed to simplify modular electrical distribution by providing a structured plug-in platform for compatible protective and switching devices. The MC204HS creates a dedicated horizontal installation area within a CombiLine cabinet, combining SMISSLINE TP socket-base capacity with DIN-rail mounting infrastructure for an organised interior layout.
With its 4 × 22 space-unit arrangement and compatibility with EDF and WR mounting frames, the MC204HS supports flexible panel engineering for commercial and industrial distribution applications. The SMISSLINE TP busbar system is configured within each module rather than being through-connected from one module to the next, helping maintain clearly defined modular sections within the finished assembly.
Typical Applications
- ABB CombiLine modular sub-distribution boards.
- SMISSLINE TP plug-in distribution systems.
- Commercial low-voltage distribution cabinets.
- Industrial electrical distribution assemblies.
- Horizontal installation of compatible protective and switching devices.
- Professional switchboard and panel-building applications.
