Why Choose the ABB MC304HS SMISSLINE TP Module?

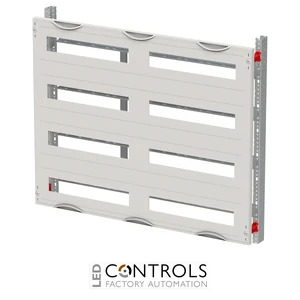

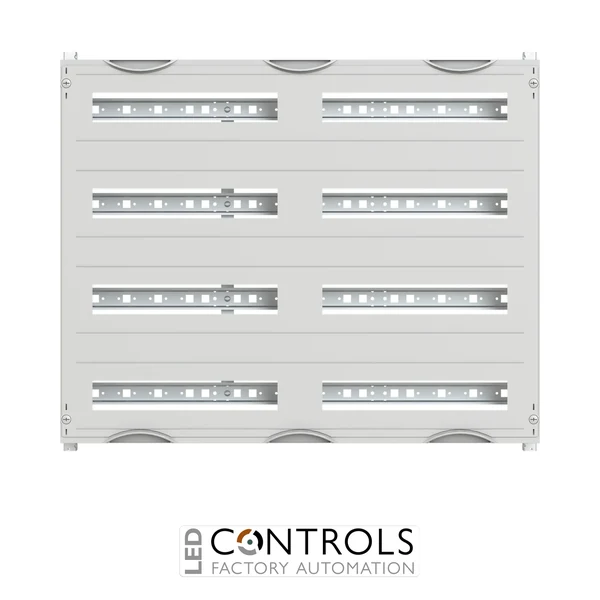

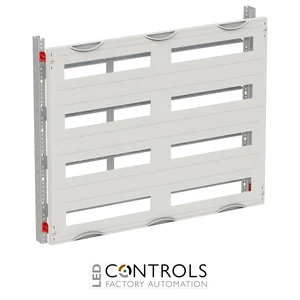

The ABB MC304HS is a modular SMISSLINE TP interior expansion module designed for device installation within compatible ABB CombiLine sub-distribution assemblies. Supplied under ABB order code 2CPX042137R9999, this factory-mounted module provides a structured solution for integrating the SMISSLINE TP plug-in system into professional low-voltage distribution cabinets.
The MC304HS incorporates 35 × 15 mm DIN rails with a 150 mm rail spacing and includes additional DIN-rail stabilisation for its 3-panel-width format. It is compatible with both EDF and WR mounting frames, providing panel builders and system integrators with a purpose-designed ABB solution for organised modular distribution-board construction.
With a module height of 4 RE / 600 mm, a width of 3 PW / 750 mm and a SMISSLINE TP socket-base capacity of 4 × 36 space units, the MC304HS provides 144 space units in total. It is suitable for compatible cabinets from 215 mm depth and is supplied mounted and installed in the cabinet.
Key Advantages
- Purpose-designed SMISSLINE TP module for modular sub-distribution assemblies.
- Large 3-panel-width / 750 mm format for higher-capacity installations.
- Provides 4 × 36 space units, giving 144 space units in total.
- Integrated 35 × 15 mm DIN rails for structured equipment mounting.
- 150 mm DIN-rail spacing supports an organised installation layout.
- Additional stabilisation rail provided for the 3-panel-width construction.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB MC304HS SMISSLINE TP interior expansion module.
- 4 RE / 600 mm module height.
- 3 PW / 750 mm module width.
- 4 × 36 space-unit socket-base configuration.
- 144 total space units.
- 35 × 15 mm DIN rails.
- 150 mm distance between DIN rails.
- Additional stabilisation rail for the 3-panel-width arrangement.
- Suitable for cabinets from 215 mm depth.
- Plastic cover with cut-out and RAL 7035 finish.
- ABB order code 2CPX042137R9999.
Flexible SMISSLINE TP Integration for Sub-Distribution Systems
The ABB SMISSLINE TP system provides a modular plug-in platform for compatible protective and switching devices used in low-voltage distribution applications. The MC304HS creates a dedicated installation area within a CombiLine cabinet, combining substantial SMISSLINE TP socket-base capacity with DIN-rail mounting infrastructure for an organised and scalable interior layout.
With its 4 × 36 space-unit configuration and compatibility with EDF and WR mounting frames, the MC304HS supports larger modular distribution assemblies. The SMISSLINE TP busbar system is configured within each module and cannot be through-connected directly from one module to the next, helping maintain clearly defined modular sections within the completed distribution system.
Typical Applications
- ABB CombiLine modular sub-distribution boards.
- SMISSLINE TP plug-in distribution systems.
- Commercial low-voltage distribution cabinets.
- Industrial electrical distribution assemblies.
- High-capacity modular protective-device installations.
- Professional switchboard and panel-building applications.
