Why Choose the ABB MBC202HS SMISSLINE Module Expansion 2PW?

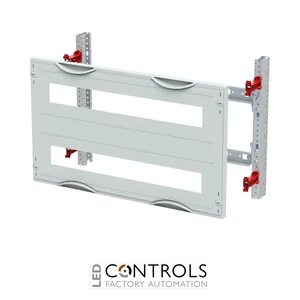

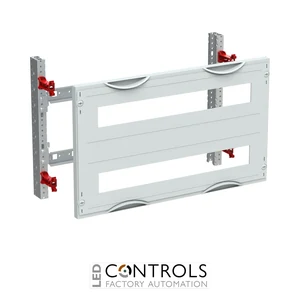

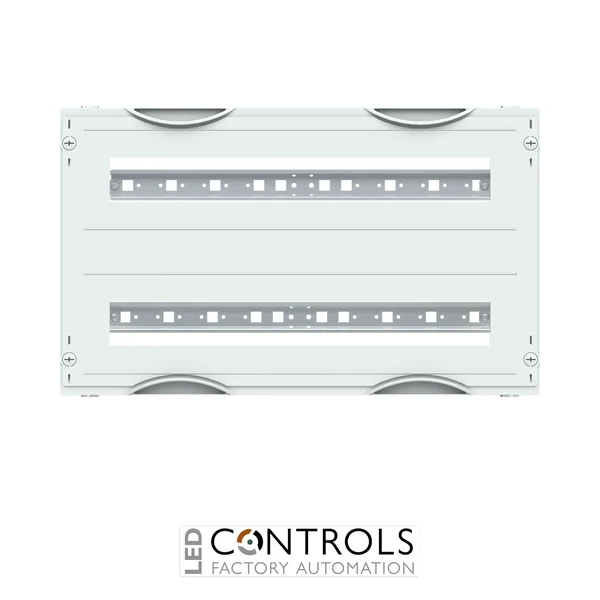

The ABB MBC202HS, order code 2CPX042155R9999, is an unassembled CombiLine interior expansion module designed for horizontal installation of SMISSLINE TP devices. As part of the ABB DESUJ Sub Distribution product group, it provides a system-specific mounting solution for incorporating SMISSLINE TP equipment into compatible ABB distribution cabinets.
The MBC202HS has a 2 RE / 300 mm height and 2 PW / 500 mm width, providing 48 place units for organised device installation. It uses 35 × 15 mm DIN rails with provision for wire holders and a 150 mm row spacing, supporting structured horizontal equipment layouts within the distribution assembly.
Designed for cabinets from 215 mm deep, the MBC202HS supports both EDF and WR mounting frames. The module includes plastic covers with cut-outs and 90-degree push-turn fasteners, while the required mounting frame is ordered separately.
Key Advantages
- Purpose-designed for horizontal SMISSLINE TP device installation.
- 2 PW / 500 mm width for compatible modular distribution assemblies.
- 2 RE / 300 mm height with 48 place units.
- Uses standard 35 × 15 mm DIN rails for structured equipment mounting.
- Compatible with both EDF and WR mounting frames.
- Designed for integration into ABB CombiLine electrical distribution systems.
Key Features
- ABB MBC202HS SMISSLINE TP module expansion kit.
- Designed for horizontal device arrangement.
- 2 RE / 300 mm module height.
- 2 PW / 500 mm module width.
- 48 place units.
- Socket base capacity of 2 × 22 PLE.
- 35 × 15 mm DIN rails with wire-holder perforations.
- 150 mm row spacing.
- Suitable for cabinets from 215 mm deep.
- Plastic covers with device cut-outs.
- 90-degree push-turn cover fasteners.
- Cover colour similar to RAL 7035.
- Compatible with EDF and WR mounting frames.
- Supplied as an unassembled kit.
Structured SMISSLINE TP Expansion for CombiLine Cabinets
The ABB MBC202HS provides the mechanical interior expansion required to arrange SMISSLINE TP equipment horizontally within compatible CombiLine distribution cabinets. Its 35 × 15 mm DIN rails are positioned at 150 mm intervals, providing a consistent mounting structure for organised device installation and wiring.
With a 500 mm field width, 300 mm height and capacity for 2 × 22 PLE, the MBC202HS provides a compact SMISSLINE TP expansion solution for compatible EDF and WR mounting structures. The SMISSLINE TP busbar system is not intended to be through-connected from one module to the next, and the appropriate mounting frame must be ordered separately.
Typical Applications
- ABB CombiLine electrical distribution cabinets.
- Horizontal SMISSLINE TP device installations.
- Commercial electrical sub-distribution boards.
- Industrial low-voltage distribution panels.
- EDF and WR mounting frame assemblies.
- Professional switchboard and panel-building applications.
