Why Choose the ABB MBC302HS SMISSLINE Module Expansion 3PW?

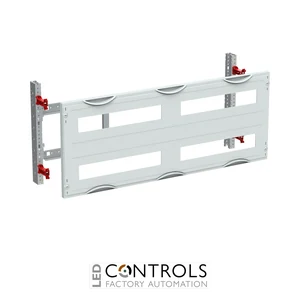

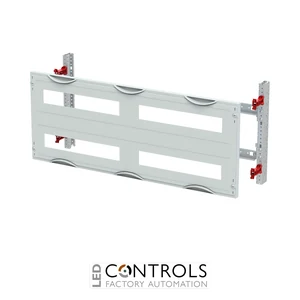

The ABB MBC302HS, order code 2CPX042156R9999, is an unassembled CombiLine N interior expansion module designed for horizontal installation of SMISSLINE TP devices. As part of the ABB DESUJ Sub Distribution product group, it provides a system-specific mounting solution for incorporating SMISSLINE TP equipment into compatible ABB distribution cabinets.

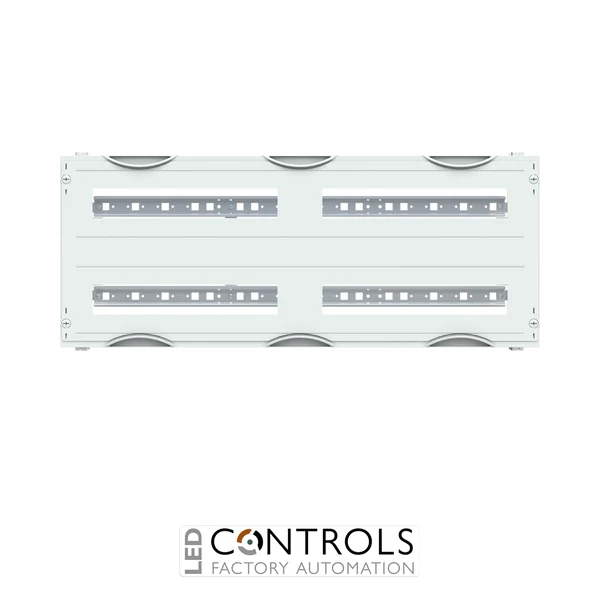

The MBC302HS has a 2 RE / 300 mm height and 3 PW / 750 mm width, with a SMISSLINE TP socket base capacity of 2 × 36 PLE. It uses 35 × 15 mm DIN rails arranged at 150 mm spacing, providing a structured platform for horizontal device installation and wiring.
Because the MBC302HS is 3 PW wide, its DIN rails incorporate an additional stabilisation rail for enhanced mechanical support. The module is suitable for cabinets from 215 mm deep and is compatible with both EDF and WR mounting frames, which must be ordered separately.
Key Advantages
- Purpose-designed for horizontal SMISSLINE TP device installation.
- 3 PW / 750 mm width for larger modular distribution assemblies.
- 2 RE / 300 mm height for efficient cabinet space utilisation.
- Socket base capacity of 2 × 36 PLE.
- Additional stabilisation rail provides support across the 3 PW field width.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB MBC302HS SMISSLINE TP module expansion kit.
- Designed for horizontal device arrangement.
- 2 RE / 300 mm module height.
- 3 PW / 750 mm module width.
- Socket base capacity of 2 × 36 PLE.
- 35 × 15 mm DIN rails with perforations for wire holders.
- 150 mm DIN rail spacing.
- Additional stabilisation rail for the 3-field-wide construction.
- Suitable for cabinets from 215 mm deep.
- Plastic covers with cut-outs.
- 90-degree push-turn cover fasteners.
- Cover colour similar to RAL 7035.
- Compatible with EDF and WR mounting frames.
- Supplied as an unassembled kit.
Structured SMISSLINE TP Expansion for CombiLine N Cabinets
The ABB MBC302HS provides the mechanical interior expansion required for horizontal SMISSLINE TP device installation within compatible CombiLine N distribution cabinets. Its 35 × 15 mm DIN rails are arranged at 150 mm intervals, while the additional stabilisation rail provides extra support across the module's 750 mm width.
With a 3 PW / 750 mm width, 2 RE / 300 mm height and socket base capacity of 2 × 36 PLE, the MBC302HS provides a spacious horizontal expansion solution for compatible EDF and WR mounting structures. The SMISSLINE TP busbar system cannot be through-connected from one module to the next, and the appropriate mounting frame must be ordered separately.
Typical Applications
- ABB CombiLine N electrical distribution cabinets.
- Horizontal SMISSLINE TP device installations.
- Commercial electrical sub-distribution boards.
- Industrial low-voltage distribution panels.
- EDF and WR mounting frame assemblies.
- Professional switchboard and panel-building applications.
