Why Choose the ABB MBC203HS SMISSLINE TP Module Expansion 2PW?

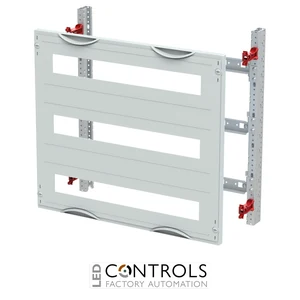

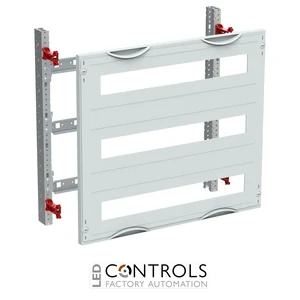

The ABB MBC203HS is an unmounted CombiLine interior expansion module designed for horizontal installation of SMISSLINE TP equipment in professional low-voltage distribution assemblies. Its modular construction provides an organised platform for integrating SMISSLINE TP devices into compatible ABB cabinet systems.

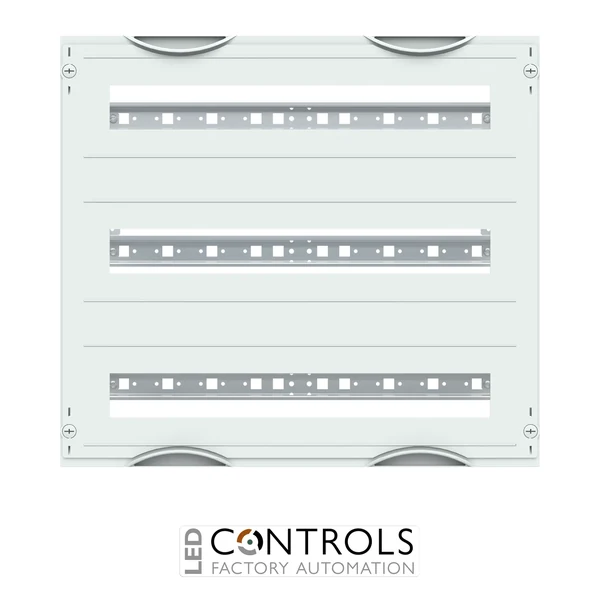

The MBC203HS provides 3 rows / 450 mm height and a 2PW / 500 mm field width, with three 35 × 15 mm DIN rails arranged at 150 mm row spacing. Each row accommodates a SMISSLINE TP socket-base length of 22 module units, providing a total arrangement of 3 × 22 module units.
Designed for cabinets with a minimum installation depth of 215 mm, the module includes plastic covers with cut-outs and a 90-degree push-turn fastening arrangement. It is supplied as an unmounted kit under ABB order code 2CPX042157R9999, with the compatible EDF or WR mounting frame ordered separately.
Key Advantages
- Purpose-designed ABB CombiLine module for horizontal SMISSLINE TP equipment installation.
- 2PW / 500 mm field width for structured modular cabinet construction.
- 3 rows / 450 mm height provides substantial device installation capacity.
- Three 35 × 15 mm DIN rails with a consistent 150 mm row spacing.
- Supports 3 × 22 module units for SMISSLINE TP socket-base arrangements.
- Supplied as an unmounted kit for efficient professional panel assembly.
Key Features
- ABB MBC203HS interior expansion module.
- CombiLine series.
- Designed for SMISSLINE TP horizontal device arrangement.
- 450 mm module height.
- 500 mm module width.
- 2PW field-width configuration.
- Three DIN rails with 150 mm row spacing.
- Plastic covers with cut-outs and 90-degree push-turn fasteners.
Structured SMISSLINE TP Integration for Distribution Cabinets
The ABB MBC203HS provides a coordinated interior expansion platform for horizontally arranging SMISSLINE TP equipment within compatible CombiLine distribution cabinets. Its three DIN-rail rows and 500 mm field width enable panel builders to organise protective and distribution equipment in a structured modular layout.
With 150 mm spacing between the 35 × 15 mm DIN rails and capacity for three rows of 22 module units, the MBC203HS supports efficient cabinet planning and equipment installation. The module is designed for use with separately ordered EDF or WR mounting frames and cabinets providing at least 215 mm installation depth.
Typical Applications
- ABB CombiLine low-voltage distribution assemblies.
- Horizontal SMISSLINE TP device installations.
- Commercial and industrial sub-distribution boards.
- Modular electrical cabinets and switchboards.
- Protection and distribution equipment assemblies.
- Professional panel-building and switchgear projects.
