Why Choose the ABB MBC304HS SMISSLINE TP Module Expansion?

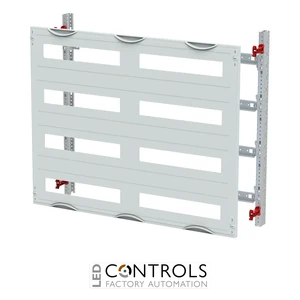

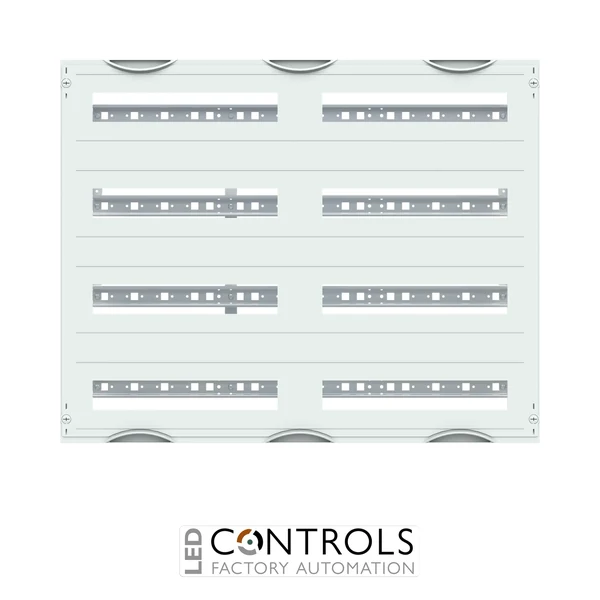

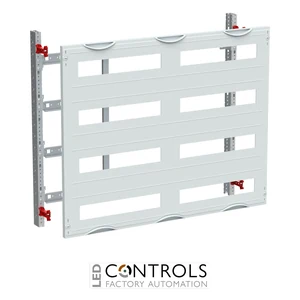

The ABB MBC304HS is a SMISSLINE TP interior expansion module kit designed for horizontal device installation within ABB CombiLine distribution systems. Supplied as an unmounted flatpack kit, it provides a structured solution for expanding sub-distribution assemblies with SMISSLINE TP equipment.
The MBC304HS provides a 4-row, 3-panel-width configuration, corresponding to a height of 600 mm and width of 750 mm. It accommodates four socket-base rows with 36 placement units per row, providing a total capacity of 144 placement units for organised electrical distribution installations.
Designed for cabinets from 215 mm depth, the module uses 35 × 15 mm DIN rails with a 150 mm row spacing. An additional stabilisation rail supports the wide three-panel arrangement, while plastic covers with cut-outs provide a practical finish for the installed equipment.
Key Advantages
- Purpose-designed SMISSLINE TP expansion module for CombiLine distribution systems.
- 3-panel-width, 4-row configuration for substantial device capacity.
- Provides 144 placement units across four rows.
- Uses standard 35 × 15 mm DIN rails for horizontal device arrangement.
- Additional stabilisation rail supports the three-panel-wide construction.
- Suitable for cabinets from 215 mm depth.
Key Features
- ABB CombiLine interior expansion module.
- Designed for SMISSLINE TP horizontal device installation.
- 4 rows / 600 mm module height.
- 3 panel widths / 750 mm module width.
- 4 × 36 placement units for a total of 144 placement units.
- 150 mm DIN rail spacing.
- Plastic covers with cut-outs and 90-degree push-turn fastening.
- Suitable for EDF or WR mounting frames, ordered separately.
Flexible SMISSLINE TP Integration
The ABB MBC304HS is designed to provide a structured interior expansion solution for SMISSLINE TP devices within CombiLine distribution assemblies. Its horizontal rail arrangement supports orderly device positioning and wiring while providing substantial installation capacity in a standardised modular format.
With four equipment rows and a three-panel-wide format, the module is suited to larger sub-distribution configurations where efficient use of cabinet space is important. The required EDF or WR mounting frame is ordered separately, allowing the module to be incorporated into the appropriate CombiLine cabinet architecture.
Typical Applications
- Commercial and industrial sub-distribution boards.
- ABB CombiLine electrical distribution assemblies.
- SMISSLINE TP modular distribution systems.
- Building electrical infrastructure.
- Control and distribution cabinet interior expansion.
- Horizontal modular protective-device installations.
