Why Choose the ABB MBC205HS SMISSLINE Module Expansion Kit?

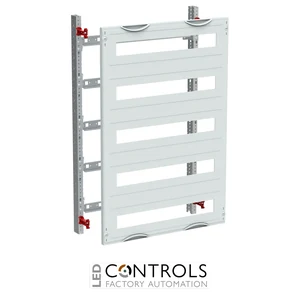

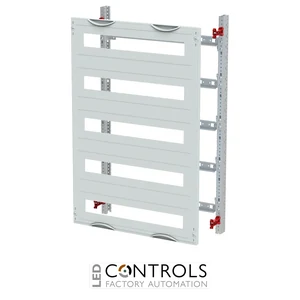

The ABB MBC205HS is a professional SMISSLINE TP interior fitting module kit designed for horizontal device installation within ABB CombiLine low-voltage distribution systems. Supplied under ABB order code 2CPX042161R9999, this unassembled module provides a structured solution for expanding modular distribution panels using the SMISSLINE TP plug-in system.

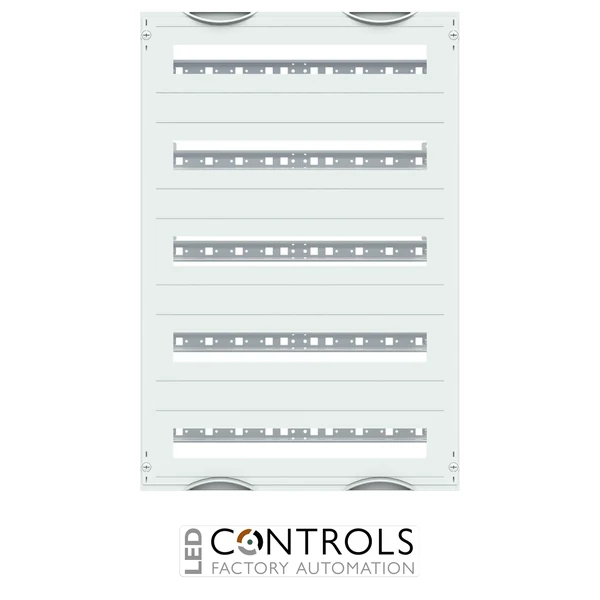

Designed with a 5 RE / 750 mm module height and 2 PW / 500 mm panel width, the MBC205HS provides 120 space units and accommodates a SMISSLINE TP socket base arrangement of 5 × 22 space units. DIN rails measuring 35 × 15 mm are included, with a 150 mm row spacing to support organised installation of compatible electrical devices.
The MBC205HS is suitable for installation from a cabinet depth of 215 mm and can be used with compatible ABB EDF or WR mounting frames. Plastic covers with cut-outs, a light grey RAL 7035 finish and 90-degree press-and-turn closures provide a practical and professional interior arrangement for low-voltage distribution assemblies.
Key Advantages
- Purpose-designed SMISSLINE TP module expansion kit for horizontal device installation.
- 5 RE / 750 mm module height for larger distribution assemblies.
- 2 PW / 500 mm panel width with 120 available space units.
- Supports a 5 × 22 space-unit SMISSLINE TP socket base arrangement.
- Includes 35 × 15 mm DIN rails with provision for wire holders.
- Compatible with ABB CombiLine interior expansion systems and suitable EDF or WR mounting frames.
Key Features
- ABB MBC205HS SMISSLINE module kit.
- ABB order code 2CPX042161R9999.
- Designed for horizontal SMISSLINE TP device installation.
- 750 mm height and 500 mm width.
- 120 space units.
- Socket base capacity of 5 × 22 space units.
- 150 mm row spacing.
- DIN rails measuring 35 × 15 mm with perforations for wire holders.
- Plastic covers with cut-outs and 90-degree press-and-turn closures.
- Light grey RAL 7035 finish.
- Suitable for cabinets with a minimum depth of 215 mm.
- Supplied as an unassembled modular distribution-panel kit.
Flexible SMISSLINE TP Distribution Expansion
The ABB CombiLine interior expansion system provides a modular framework for constructing organised low-voltage distribution assemblies. The MBC205HS is configured specifically for horizontal SMISSLINE TP device arrangements, providing DIN rails, covers and installation space for a structured modular distribution-panel layout.
With five rows, a 500 mm panel width and capacity for 5 × 22 SMISSLINE TP space units, the MBC205HS is well suited to larger distribution-panel configurations. The 150 mm spacing between DIN rails provides practical installation and wiring space, while the module can be incorporated into compatible EDF or WR mounting-frame arrangements.
Typical Applications
- ABB SMISSLINE TP distribution systems.
- CombiLine modular distribution panels.
- Commercial low-voltage distribution boards.
- Industrial electrical distribution assemblies.
- Building electrical distribution systems.
- Switchboard and control-panel construction.
