Why Choose the ABB MBC104VS SMISSLINE TP Module Expansion?

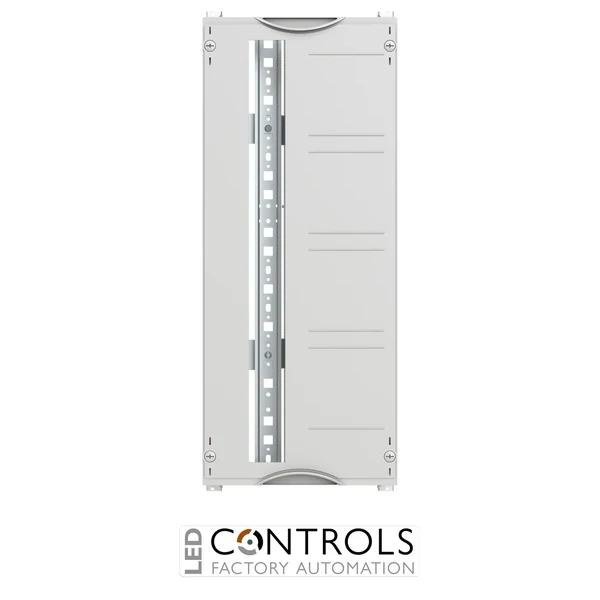

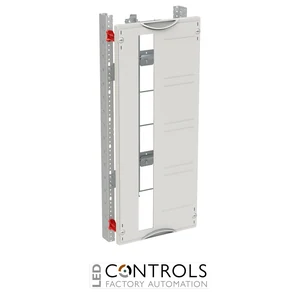

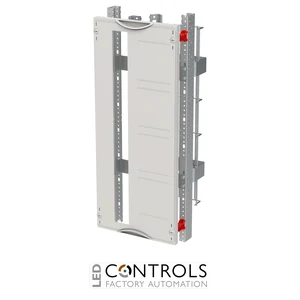

The ABB MBC104VS is a modular SMISSLINE TP interior expansion module designed for vertical device installation within compatible ABB CombiLine sub-distribution assemblies. Supplied under ABB order code 2CPX042165R9999, this flatpack module kit provides a structured solution for integrating the SMISSLINE TP plug-in system into professional low-voltage distribution cabinets.
Designed for vertical SMISSLINE TP device arrangement, the MBC104VS incorporates a 35 × 15 mm DIN rail with perforations for wire holders and includes infrastructure for organised cable routing. The rear DIN rail is suitable for standard neutral and protective-earth terminals, helping panel builders create clearly organised modular distribution assemblies.
The MBC104VS has a module height of 4 RE / 600 mm, a field width of 1 PW / 250 mm and is designed for a SMISSLINE TP socket-base length of 1 × 30 space units. The complete module provides 48 space units, is suitable for cabinets from 275 mm depth and is supplied as an unmounted kit for assembly using a separately ordered WR mounting frame.
Key Advantages
- Purpose-designed SMISSLINE TP module for vertical device installation.
- Compact 1-panel-width / 250 mm format for modular distribution cabinets.
- Provides 48 space units for organised electrical equipment installation.
- Designed for a 1 × 30 space-unit SMISSLINE TP socket base.
- Integrated 35 × 15 mm DIN rail with perforations for wire holders.
- Suitable for compatible cabinets from 275 mm depth.
Key Features
- ABB MBC104VS SMISSLINE TP interior expansion module.
- Designed for vertical device arrangement.
- 4 RE / 600 mm module height.
- 1 PW / 250 mm field width.
- 48 total space units.
- Suitable for a 1 × 30 space-unit socket base.
- 35 × 15 mm DIN rail with wire-holder perforations.
- Plastic cover with cut-out and RAL 7035 finish.
- 90-degree push-turn closure for the cover.
- Supplied as an unmounted flatpack kit.
- ABB order code 2CPX042165R9999.
Flexible SMISSLINE TP Integration for Sub-Distribution Systems
The ABB SMISSLINE TP system provides a modular plug-in platform for compatible protective and switching devices used in low-voltage electrical distribution. The MBC104VS creates a dedicated vertical installation area within a CombiLine cabinet, combining SMISSLINE TP socket-base provision with DIN-rail infrastructure and cable-management facilities for an organised interior layout.
The rear-mounted DIN rail can accommodate standard neutral and protective-earth terminals, while the included cable-routing provisions support orderly conductor management. As an unmounted kit, the MBC104VS gives panel builders flexibility during assembly and is designed for installation using the appropriate WR mounting frame, which is ordered separately.
Typical Applications
- ABB CombiLine modular sub-distribution boards.
- SMISSLINE TP plug-in distribution systems.
- Vertical installation of compatible protective and switching devices.
- Commercial low-voltage distribution cabinets.
- Industrial electrical distribution assemblies.
- Professional switchboard and panel-building applications.
