Why Choose the ABB MBC105VS Smissline Module Expansion 1PW?

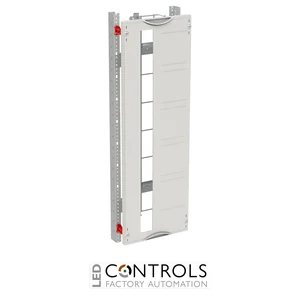

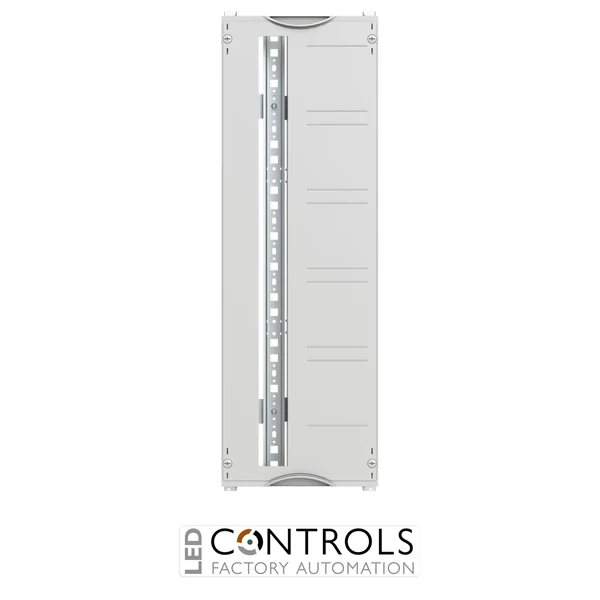

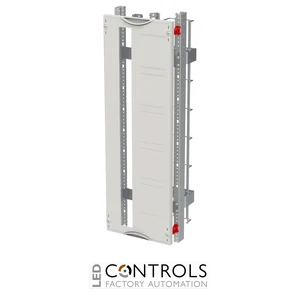

The ABB MBC105VS is an unassembled CombiLine interior fitting module kit designed for the vertical installation of SMISSLINE TP devices within compatible ABB low-voltage subdistribution cabinets. Supplied under ABB order code 2CPX042167R9999 and forming part of the ABB DESUJ Sub Distribution product group, it provides a system-specific solution for professional modular distribution-board construction.
The MBC105VS has a 5 RE / 750 mm module height and 1 PW / 250 mm field width, providing 60 space units. It is equipped with 35 × 15 mm DIN rails with perforations for wire holders and is designed for a SMISSLINE TP socket-base length of 1 × 38 space units.
Designed for cabinets with a minimum depth of 275 mm, the MBC105VS includes plastic covers with cut-outs, finished in RAL 7035 and secured using 90-degree press-and-turn fasteners. The module is supplied as an unassembled kit, and a compatible WR mounting frame must be ordered separately.
Key Advantages
- Purpose-designed for vertical SMISSLINE TP device installation.
- 5 RE / 750 mm module height for substantial installation capacity.
- 1 PW / 250 mm field width for compact cabinet integration.
- Provides 60 space units within the module.
- Designed for a socket-base length of 1 × 38 space units.
- Uses 35 × 15 mm DIN rails with perforations for wire holders.
- Original ABB CombiLine component for dependable system integration.
Key Features
- ABB MBC105VS SMISSLINE module kit.
- Unassembled interior fitting kit.
- Designed for vertical SMISSLINE TP device arrangements.
- 5 RE / 750 mm module height.
- 1 PW / 250 mm field width.
- 60 space units.
- Socket-base capacity of 1 × 38 space units.
- 35 × 15 mm DIN rails with perforations for wire holders.
- Plastic covers with cut-outs.
- RAL 7035 cover finish.
- 90-degree press-and-turn cover fasteners.
- Suitable from a cabinet depth of 275 mm.
- WR mounting frame must be ordered separately.
SMISSLINE TP Vertical Device Integration
The ABB SMISSLINE TP system supports structured modular device installation within professional low-voltage distribution assemblies. The MBC105VS provides the mechanical interior fitting structure for a vertical SMISSLINE TP arrangement, using 35 × 15 mm DIN rails and providing capacity for a socket-base length of 1 × 38 space units.
With its 750 × 250 mm module format and 60 space units, the MBC105VS provides useful installation capacity within a compact 1 PW field. The vertical module arrangement is intended for compatible ABB CombiLine cabinet construction, with the required WR mounting frame selected and ordered separately.
Typical Applications
- ABB CombiLine low-voltage subdistribution cabinets.
- Vertical SMISSLINE TP device installations.
- Commercial electrical distribution boards.
- Industrial low-voltage distribution assemblies.
- Modular switchgear and control cabinet construction.
- Distribution-board expansion and refurbishment projects.
