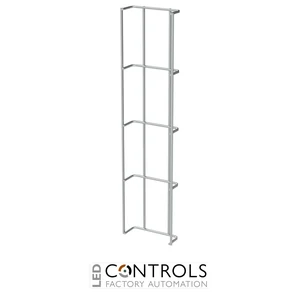

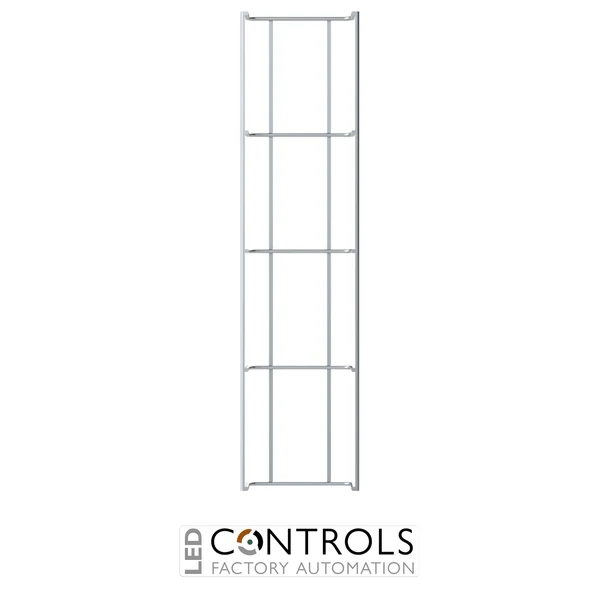

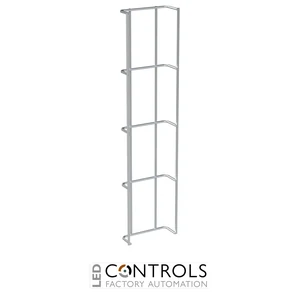

Why Choose the ABB ZW430 Cable Grid 100w x 450h?
The ABB ZW430, order code 2CPX042170R9999, is a cable grid designed for organised cable routing within compatible ABB electrical distribution assemblies. As part of the ABB DESUJ Sub Distribution product group, it provides a dedicated support structure for guiding and managing conductors inside professional distribution cabinets.
With nominal dimensions of 100 mm wide × 450 mm high, the ZW430 provides a vertically oriented cable-management area while occupying limited cabinet width. This format helps panel builders keep internal wiring structured and supports clear separation and routing of conductors alongside installed electrical equipment.
The ZW430 is particularly useful where orderly cable guidance is required within a modular low-voltage distribution assembly. Its grid-style construction provides multiple routing and fixing opportunities, helping create neat, accessible and serviceable cabinet wiring arrangements.
Key Advantages
- Dedicated cable-management grid for electrical distribution assemblies.
- Compact 100 mm width helps preserve valuable cabinet space.
- 450 mm height provides useful vertical cable-routing capacity.
- Supports organised routing and retention of internal conductors.
- Helps improve accessibility and wiring organisation inside distribution cabinets.
- Designed for professional ABB sub-distribution systems.
Key Features
- ABB ZW430 cable grid.
- Designed for internal cable routing and organisation.
- 100 mm nominal width.
- 450 mm nominal height.
- Vertically oriented cable-management format.
- Grid structure provides flexible cable-routing and fixing points.
- Supports neat conductor organisation within distribution assemblies.
- Suitable for professional low-voltage panel construction.
- Part of the ABB DESUJ Sub Distribution product group.
Structured Cable Management Inside Distribution Cabinets
Effective cable management is important in professional distribution assemblies because it helps keep conductors organised, accessible and clearly routed between devices, terminals and other system components. A dedicated cable grid provides a defined structure for securing and guiding wiring instead of allowing conductors to move freely within the cabinet.
The ABB ZW430 combines a narrow 100 mm width with a useful 450 mm vertical height, making it suitable for cable-management areas where cabinet space needs to be used efficiently. Its grid format supports flexible routing arrangements and helps panel builders maintain orderly internal wiring throughout the distribution assembly.
Typical Applications
- Electrical sub-distribution cabinets.
- Internal conductor routing and cable organisation.
- Commercial low-voltage distribution boards.
- Industrial electrical distribution panels.
- Switchboard wiring and cable-management areas.
- Professional panel-building applications.
