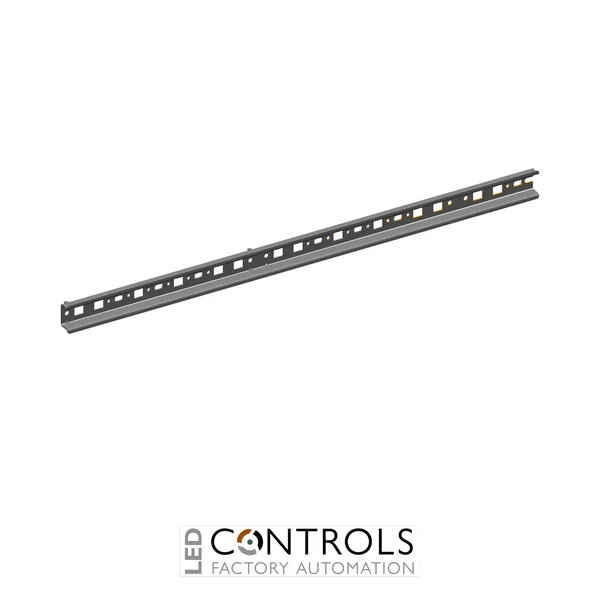

Why Choose the ABB ED74 Vertical DIN Rail?
The ABB ED74 is a 600 mm vertical DIN rail designed for professional low-voltage distribution and enclosure installations. Supplied under ABB order code 2CPX042185R9999, it forms part of ABB's sub-distribution component range and provides a dependable mounting solution for compatible electrical equipment within distribution assemblies.
Designed for vertical installation, the ED74 provides a structured mounting platform for DIN-rail-compatible components and accessories. Its 600 mm length makes it suitable for larger distribution-board and cabinet arrangements where vertical equipment mounting is required.
The ED74 is intended for use as part of compatible ABB low-voltage distribution systems, supporting organised panel construction and efficient use of available enclosure space. Its dedicated mounting format makes it particularly useful for switchboard builders, panel builders and electrical installers constructing or expanding ABB distribution assemblies.
Key Advantages
- Purpose-designed vertical DIN rail for low-voltage distribution assemblies.
- 600 mm rail length provides substantial mounting capacity.
- Vertical configuration supports efficient use of enclosure space.
- Provides a structured mounting platform for compatible DIN-rail equipment.
- Suitable for professional distribution-board and switchboard construction.
- Designed for integration with compatible ABB sub-distribution systems.
Key Features
- ABB ED74 vertical DIN rail.
- ABB order code 2CPX042185R9999.
- 600 mm nominal length.
- Designed for vertical installation.
- Suitable for mounting compatible electrical distribution components.
- Part of the ABB DESUJ Sub Distribution product group.
- Designed for professional panel, cabinet and distribution-board construction.
Structured Vertical Mounting for Distribution Systems
DIN rails provide a standardised mounting platform for electrical equipment within distribution boards, control panels and switchgear assemblies. A vertical rail arrangement can help panel builders make effective use of enclosure height while maintaining an organised and accessible component layout.
The ABB ED74 provides a 600 mm vertical mounting length for compatible equipment within ABB distribution assemblies. It is particularly suited to new panel construction, system expansion and replacement applications where a dedicated vertical DIN rail is required.
Typical Applications
- Low-voltage electrical distribution boards.
- ABB sub-distribution assemblies.
- Electrical switchboards and cabinets.
- Commercial electrical distribution systems.
- Industrial control and distribution panels.
- Panel building and enclosure expansion projects.
