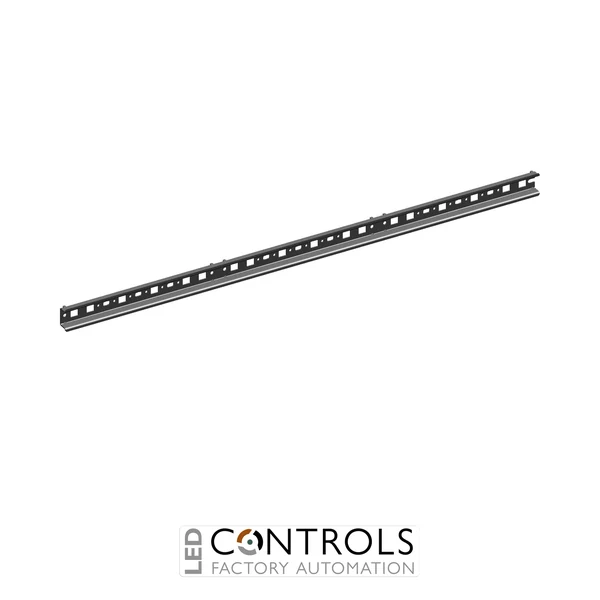

Why Choose the ABB ED75 Vertical DIN Rail?
The ABB ED75 is a robust 35 × 15 mm vertical DIN rail designed for vertical terminal-block modules within ABB low-voltage distribution assemblies. Supplied under ABB order code 2CPX042186R9999, it forms part of the ABB DESUJ Sub Distribution range and is specified for modules with a nominal height of 750 mm.
Manufactured from 1.5 mm steel with a Sendzimir-galvanised surface, the ED75 provides a durable mounting platform for compatible electrical components. The rail incorporates a perforated hole pattern for ABB ED44 / ED45 wire holders, helping panel builders achieve an organised installation and cable-routing arrangement.
The ED75 has nominal external dimensions of approximately 741 × 35 × 15 mm and is intended for vertical mounting in compatible ABB distribution systems. It is specifically associated with M(B)C...05VS modules, providing the required DIN-rail format for 750 mm-high vertical module configurations.
Key Advantages
- Purpose-designed vertical DIN rail for ABB low-voltage distribution assemblies.
- Suitable for modules with a nominal height of 750 mm.
- Standard 35 × 15 mm DIN rail profile for compatible electrical equipment.
- Durable 1.5 mm steel construction with Sendzimir-galvanised surface protection.
- Perforated for integration with ABB ED44 / ED45 wire holders.
- Designed for compatible M(B)C...05VS vertical module configurations.
Key Features
- ABB ED75 vertical DIN rail.
- ABB order code 2CPX042186R9999.
- Designed for 750 mm module height.
- 35 × 15 mm DIN rail profile.
- Nominal rail length of approximately 741 mm.
- 1.5 mm material thickness.
- Manufactured from steel with a Sendzimir-galvanised finish.
- Perforated hole pattern for ED44 / ED45 wire holders.
- Designed for vertical terminal-block module arrangements.
- Supplied individually for professional panel and distribution-board construction.
Structured Vertical Mounting for Distribution Systems
DIN rails provide a standardised mounting platform for electrical equipment within distribution boards, control panels and switchgear assemblies. Vertical mounting can help panel builders make effective use of enclosure height while maintaining an organised and accessible arrangement of terminal blocks and associated wiring.
The ABB ED75 is engineered specifically for 750 mm-high vertical module configurations. Its 35 × 15 mm profile, galvanised steel construction and integrated perforations for ED44 and ED45 wire holders make it a practical component for building structured ABB low-voltage distribution assemblies.
Typical Applications
- ABB low-voltage distribution assemblies.
- Vertical terminal-block modules.
- M(B)C...05VS module configurations.
- Electrical distribution boards and cabinets.
- Commercial and industrial switchboards.
- Panel building and electrical enclosure installations.
