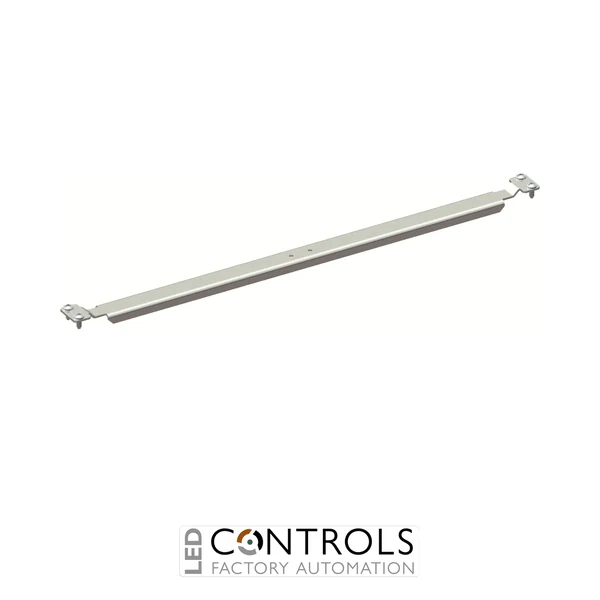

2CPX042847R9999 ABB ED122 EDF Transverse Profile 2PW 500 mm

2CPX042847R9999 ABB ED122 EDF Transverse Profile 2PW 500 mm

ABB ED122 EDF horizontal transverse profile rail, a 2 PW / 500 mm CombiLine N interior expansion component for structured field distribution in sub-distribution cabinets.

SKU: 2CPX042847R9999Alt SKU: ED122MPN: 2CPX042847R9999
Price
List Price £25.43 ex VAT
Your Price (ex VAT)
£25.43
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £25.43
Trade pricing is personalised to your account

Manufacturer Lead Time

£25.43

Why Choose the ABB ED122 EDF Transverse Profile?

The ABB ED122 is a robust EDF transverse profile rail designed for use within ABB sub-distribution and CombiLine N interior expansion systems. Manufactured for structured field distribution inside electrical cabinets, this profile provides reliable mechanical support and helps create an organised framework for distribution assemblies.

The ED122 is a horizontal transverse profile rail intended for field distribution upwards or downwards. Its 2-field-width format provides a practical structural component for building or expanding modular distribution arrangements while maintaining compatibility with ABB cabinet and interior expansion components.

With a nominal width of 2 PW / 500 mm, the ED122 is supplied as a single uninstalled kit and includes the fastening screws required for installation. ABB order code 2CPX042847R9999 identifies this specific transverse profile within the ABB sub-distribution product range.

Key Advantages

  • Purpose-designed horizontal transverse profile rail for ABB sub-distribution systems.
  • 2 PW / 500 mm width for compatible field distribution arrangements.
  • Suitable for field distribution upwards or downwards.
  • Supports structured and secure internal cabinet construction.
  • Supplied with fastening screws for installation.
  • Compatible with ABB CombiLine N interior expansion architecture.

Key Features

  • ABB ED122 transverse profile rail.
  • EDF / CombiLine N interior expansion component.
  • 2 PW field width.
  • 500 mm nominal width.
  • Horizontal profile configuration.
  • Designed for upward or downward field distribution layouts.
  • Supplied as a kit not installed.
  • Includes fastening screws.

Reliable Structural Support for Sub-Distribution Assemblies

Transverse profile rails form part of the mechanical support structure inside modular electrical distribution systems. By providing a defined horizontal mounting and reinforcement point, they help maintain consistent spacing and alignment between internal cabinet components.

The ABB ED122 is designed specifically for field distribution applications within ABB interior expansion systems. Its 500 mm width and supplied fastening hardware make it suitable for constructing dependable, repeatable sub-distribution cabinet layouts while simplifying installation for panel builders and electrical contractors.

Typical Applications

  • ABB CombiLine N sub-distribution assemblies.
  • Electrical distribution cabinets and switchboard interiors.
  • Horizontal support within modular field distribution systems.
  • Upward and downward field distribution arrangements.
  • Commercial and industrial electrical panels.
  • Panel building, cabinet expansion and retrofit projects.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
Series CombiLine N / EDF Interior Expansion System
ABB order code 2CPX042847R9999
Product type EDF transverse profile rail
Configuration Horizontal transverse profile
Field width 2 PW
Nominal width 500 mm
Supply format Kit, not installed
Quantity 1 piece
Included accessories Fastening screws
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB ED122 used for?

The ABB ED122 is a horizontal transverse profile rail used within ABB sub-distribution and CombiLine N interior expansion systems for structured field distribution inside electrical cabinets.

What width is the ABB ED122?

The ED122 has a nominal width of 2 PW / 500 mm.

Can the ED122 be used for upward and downward field distribution?

Yes. ABB specifies the ED122 for horizontal field distribution upwards or downwards.

Are fastening screws supplied with the ED122?

Yes. The ED122 kit is supplied with the fastening screws required for installation.

What is the ABB order code for the ED122?

The ABB order code for the ED122 transverse profile rail is 2CPX042847R9999.

Trusted ABB Sub-Distribution Components

ABB CombiLine N and EDF interior expansion components provide panel builders and electrical installers with a modular, coordinated system for constructing organised and dependable sub-distribution assemblies.
