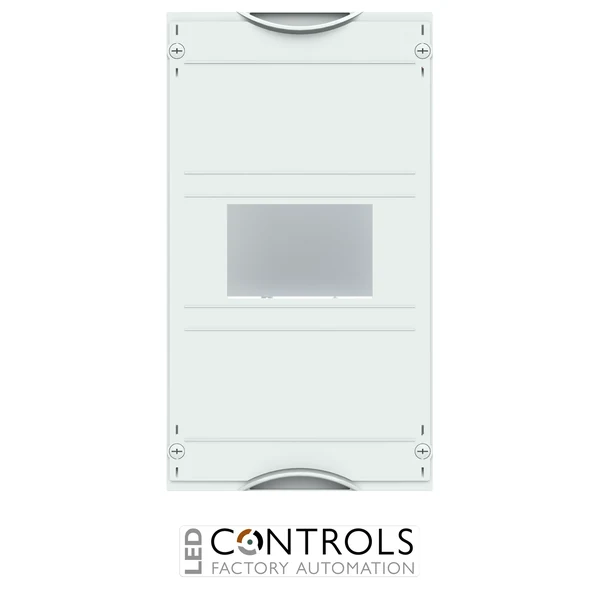

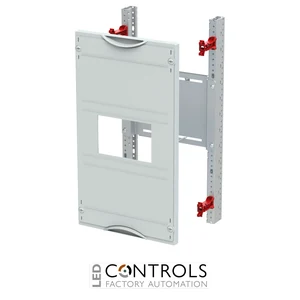

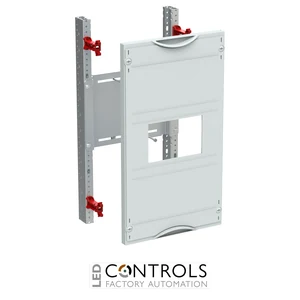

Why Choose the ABB MBA196T XT4 4P Expansion?
The ABB MBA196T is an XT4 4P expansion designed for use within ABB modular sub-distribution assemblies. Its 1-panel-width (1PW) configuration provides a dedicated expansion solution for integrating a compatible 4-pole XT4 circuit breaker into an organised distribution-board arrangement.
As part of ABB's DESUJ Sub Distribution product range, the MBA196T supports structured switchgear installation within compatible low-voltage distribution assemblies. The expansion format helps installers incorporate the specified XT4 4P device while maintaining a modular and systematic cabinet layout.
Combining XT4 4P compatibility with a compact 1PW format, the MBA196T is suited to professional distribution-board construction where additional circuit-breaker accommodation is required within the ABB sub-distribution architecture.
Key Advantages
- Designed as an XT4 4P expansion for compatible ABB assemblies.
- Supports installation of a compatible 4-pole XT4 circuit breaker.
- Compact 1-panel-width (1PW) configuration.
- Supports structured and modular switchgear installation.
- Suitable for professional low-voltage sub-distribution assemblies.
- Part of ABB's DESUJ Sub Distribution product group.
Key Features
- ABB MBA196T expansion.
- XT4 circuit-breaker application.
- 4-pole (4P) configuration.
- 1-panel-width (1PW) format.
- Designed for modular sub-distribution construction.
- Supports organised circuit-breaker integration.
- Suitable for compatible ABB low-voltage distribution assemblies.
- ABB order code 2CPX042908R9999.
Modular XT4 Circuit-Breaker Expansion
Expansion components allow additional switchgear functions to be incorporated into modular distribution assemblies while retaining a structured internal layout. The ABB MBA196T is specifically configured for an XT4 4P application, providing the required expansion format for compatible ABB sub-distribution equipment.
Its 1PW configuration makes the MBA196T suitable where XT4 four-pole circuit-breaker accommodation is required within a single-panel-width section, supporting efficient use of available cabinet space and consistent modular construction.
Typical Applications
- ABB modular sub-distribution assemblies.
- XT4 4-pole circuit-breaker integration.
- Commercial and industrial distribution boards.
- Low-voltage electrical cabinets.
- Modular switchgear assemblies.
- Single-panel-width circuit-breaker expansion sections.
