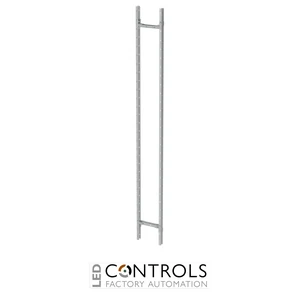

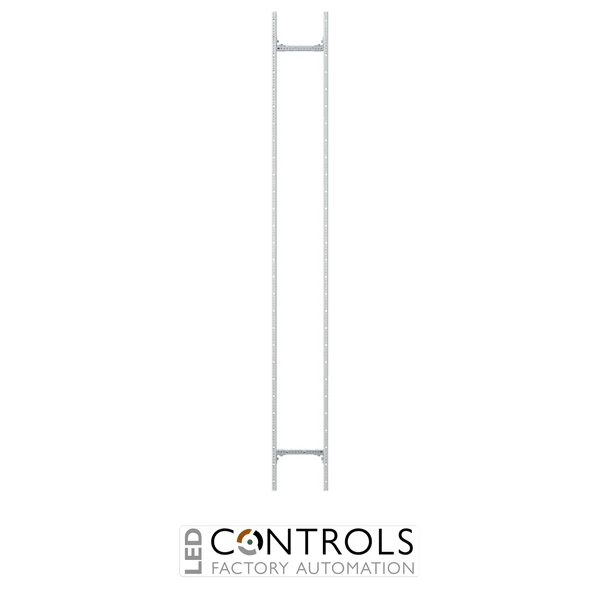

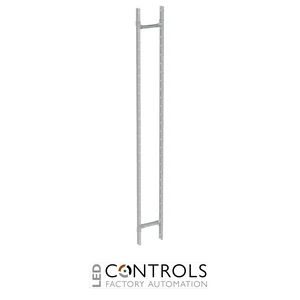

2CPX045234R9999 ABB WR110 WR Mounting Frame 1PW

2CPX045234R9999 ABB WR110 WR Mounting Frame 1PW

ABB WR110 CombiLine WR mounting frame with 1 PW field width, overall height 10 and 2100 mm frame height for modular interior expansion of compatible switchgear cabinets.

SKU: 2CPX045234R9999Alt SKU: WR110MPN: 2CPX045234R9999
Price
List Price £132.32 ex VAT
Your Price (ex VAT)
£132.32
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £132.32
Trade pricing is personalised to your account

Manufacturer Lead Time

£132.32

Why Choose the ABB WR110 WR Mounting Frame?

The ABB WR110 is a robust WR mounting frame designed for structured interior expansion of ABB standing and row-mounted switchgear cabinets. As part of the ABB CombiLine distribution system, it provides the supporting framework required for free assembly of compatible modules, installation sets and other internal distribution components.

Designed with a 1 PW field width and overall height 10, the WR110 consists of vertical WR profile rails combined with transverse profile rails. This construction creates a stable mounting structure for flexible cabinet layouts and enables panel builders to configure distribution assemblies around the requirements of the installation.

The WR110 has a mounting-frame height of 2100 mm and is suitable for standing and row switchgear cabinets from 225 mm depth. It is also used when installing compatible EDF WNF installation sets, with WNF applications requiring a cabinet depth of at least 425 mm. ABB order code 2CPX045234R9999 identifies this specific mounting frame.

Key Advantages

  • Purpose-designed WR mounting frame for ABB distribution and switchgear cabinets.
  • 1 PW field width for single-field cabinet arrangements.
  • Overall height 10 configuration with 14 RE.
  • Provides a stable framework for free assembly of compatible internal components.
  • Suitable for standing and row switchgear cabinets from 225 mm depth.
  • Supports compatible EDF WNF installation sets and modular interior expansion.

Key Features

  • ABB WR110 WR mounting frame.
  • CombiLine distribution system component.
  • 1 PW field width.
  • Overall height 10.
  • 14 RE height units.
  • 2100 mm frame height.
  • Constructed from vertical WR profile rails with transverse profile rails.
  • Suitable for compatible standing and row switchgear cabinets.

Reliable Framework for Modular Distribution Assemblies

WR mounting frames provide the structural foundation for flexible interior expansion within compatible ABB electrical cabinets. The vertical and transverse profile arrangement creates defined mounting points for distribution modules and installation components while allowing panel builders to organise equipment efficiently within the available cabinet space.

The ABB WR110 is particularly suited to free assembly on the WR mounting system and to installations incorporating compatible EDF WNF components. Its 1 PW format and 2100 mm height make it a practical foundation for single-field, full-height distribution arrangements in commercial and industrial switchgear applications.

Typical Applications

  • ABB CombiLine distribution assemblies.
  • Standing electrical switchgear cabinets.
  • Row-mounted switchgear and distribution cabinets.
  • Free assembly of compatible cabinet components.
  • EDF WNF installation set mounting.
  • Modular sub-distribution and switchboard construction.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Door / Cover / Partition
Product Series S&J CombiLine N
Series CombiLine
ABB order code 2CPX045234R9999
Product type WR mounting frame
Field width 1 PW
Overall height 10
Height units 14 RE
Frame height 2100 mm
Minimum cabinet depth 225 mm
Minimum cabinet depth with EDF WNF installation set 425 mm
Construction Vertical WR profile rails with transverse profile rails
Packaging quantity 1 piece
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB WR110 used for?

The ABB WR110 provides a structural mounting framework for free assembly, compatible modules and installation components inside ABB standing and row switchgear cabinets.

What field width is the ABB WR110?

The WR110 is a 1 PW field-width mounting frame designed for single-field cabinet arrangements.

What is the height of the ABB WR110?

The WR110 has an overall mounting-frame height of 2100 mm, corresponding to overall height 10 and 14 RE.

What cabinet depth is required for the WR110?

The WR110 is suitable for compatible standing and row switchgear cabinets from 225 mm depth; installation with an EDF WNF installation set requires a cabinet depth of at least 425 mm.

What is the ABB order code for the WR110?

The ABB order code for the WR110 mounting frame is 2CPX045234R9999.

Trusted ABB Distribution System Components

ABB CombiLine mounting components provide panel builders and electrical installers with a coordinated framework for constructing organised, modular and dependable distribution and switchgear assemblies.
