Why Choose the ABB WR210 WR Mounting Frame 2PW?
The ABB WR210 is a robust WR mounting frame designed for the structured installation of modules and electrical equipment within ABB low-voltage distribution cabinets. As part of the ABB DESUJ Sub Distribution range, it provides a stable internal support system for compatible floor-standing and row-type switchgear cabinets.

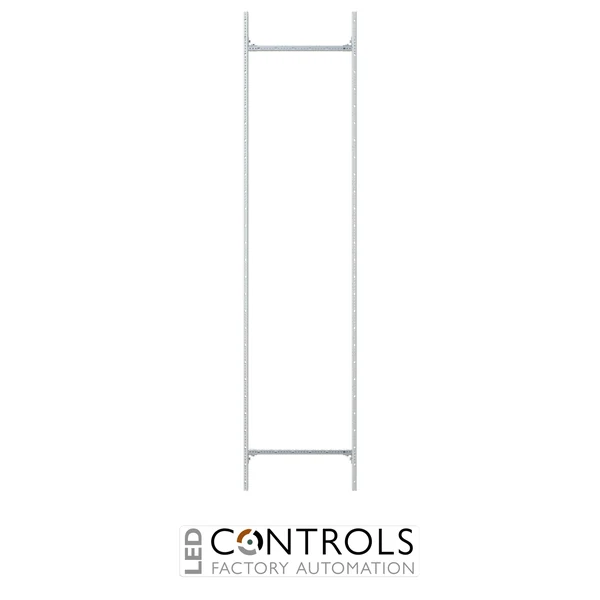

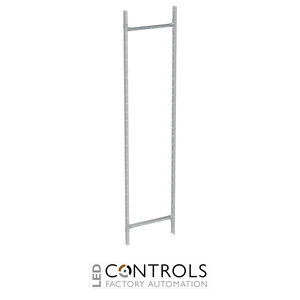

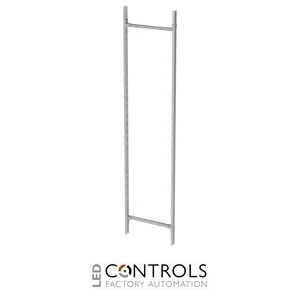

The WR210 is configured for a 2PW / two-field-width installation with an overall height of 2100 mm and 14 height units. The frame consists of vertical WR profile rails with transverse profile rails, providing a versatile mounting structure for free assembly and modular interior configurations.
Designed for standing and row-type cabinets with depths from 225 mm, the WR210 can also be used when installing the EDF WNF installation set in cabinets from 425 mm deep. Its preconfigured mounting format helps panel builders create organised, flexible and dependable electrical distribution assemblies.
Key Advantages
- Purpose-designed WR mounting frame for ABB distribution cabinets.
- 2PW / two-field-width configuration for modular cabinet installations.
- 2100 mm overall height with 14 height units.
- Suitable for standing and row-type cabinets from 225 mm depth.
- Supports free assembly and installation of compatible electrical modules.
- Provides a stable framework for organised ABB sub-distribution systems.
Key Features
- ABB DESUJ Sub Distribution range.
- WR mounting frame for modular interior assembly.
- 2PW / two-field-width format.
- 2100 mm frame length.
- 14 height units.
- Vertical WR profile rails with transverse profile rails.
- Suitable for cabinets with depths from 225 mm.
- Compatible with EDF WNF installation arrangements from 425 mm cabinet depth.
- ABB order code 2CPX045235R9999.
Reliable Mounting for Electrical Distribution Assemblies
Mounting frames such as the ABB WR210 provide the structural foundation required to position electrical modules and installation components securely inside distribution cabinets. The combination of vertical and transverse profile rails provides panel builders with a practical framework for creating organised modular assemblies.
The WR mounting system supports free assembly as well as installations incorporating compatible ABB modules and EDF installation equipment. This modular approach enables electrical distribution cabinets to be configured efficiently for the requirements of commercial and industrial low-voltage installations.
Typical Applications
- Low-voltage sub-distribution cabinets.
- Standing electrical distribution cabinets.
- Row-type switchgear cabinets.
- Modular electrical panel assemblies.
- EDF WNF installation arrangements.
- ABB cabinet installations requiring a 2PW WR mounting frame.
