Why Choose the ABB RZ151 Vertical Partition?

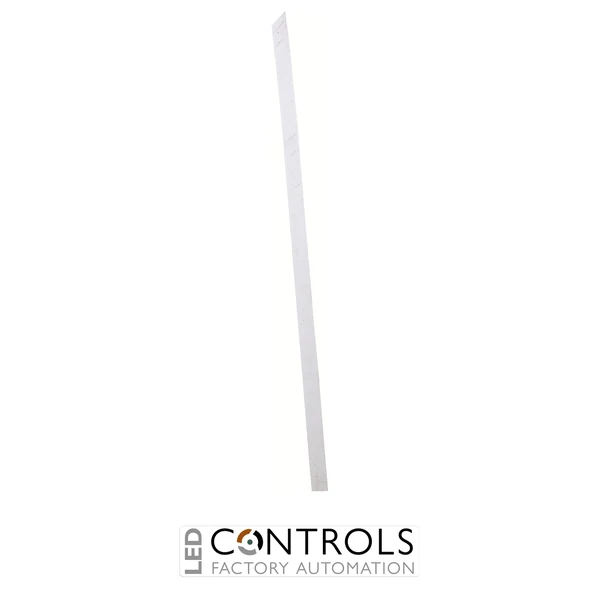

The ABB RZ151 is a purpose-designed vertical sheet-steel partition for separating adjacent WR mounting frames within compatible ABB TriLine® low-voltage distribution cabinets. Supplied under ABB order code 2CPX046561R9999, it forms part of the ABB DESUJ Sub Distribution product group and the CombiLine N interior expansion system.
Designed for installations with a cabinet depth of 425 mm, the RZ151 provides a physical division between WR mounting frames to support an organised internal cabinet layout. The partition is manufactured from sheet steel with a galvanised surface and is designed to be riveted directly to the WR mounting frame.
The RZ151 is specified for a construction height of 8 BH (12 RE) and is suitable for ABB TriLine® cabinets. It is a non-arc-resistant partition intended for professional low-voltage switchboard and distribution-panel construction where reliable mechanical separation between mounting-frame sections is required.
Key Advantages
- Purpose-designed vertical partition for ABB TriLine® cabinets.
- Suitable for 12 RE / 8 BH cabinet configurations.
- Designed for cabinets with a 425 mm depth.
- Robust sheet-steel construction for dependable mechanical separation.
- Galvanised surface provides durable protection for the steel partition.
- Designed to be riveted directly to compatible WR mounting frames.
Key Features
- ABB RZ151 vertical partition.
- 12 RE construction height.
- 8 BH construction height.
- 425 mm cabinet depth.
- Sheet-steel construction.
- Galvanised surface finish.
- Designed for WR mounting frame-to-WR mounting frame separation.
- Suitable for compatible ABB TriLine® and CombiLine N distribution systems.
Reliable Separation for Distribution Cabinets
Vertical partitions provide physical separation between internal sections of an electrical distribution cabinet, helping create a structured arrangement for mounting frames and installed equipment. Sheet-steel construction provides the rigidity required for permanent cabinet installations while supporting an organised internal assembly.
The ABB RZ151 is specifically designed to separate WR mounting frames in compatible TriLine® cabinets. Its 12 RE / 8 BH format and 425 mm cabinet-depth compatibility make it a coordinated component for ABB CombiLine N interior expansion systems, with the partition riveted directly to the mounting frame during assembly.
Typical Applications
- ABB TriLine® low-voltage distribution cabinets.
- ABB CombiLine N interior expansion systems.
- Separation between adjacent WR mounting frames.
- Commercial and industrial switchboards.
- Low-voltage sub-distribution assemblies.
- Professional electrical panel building and cabinet integration.
