Why Choose the ABB CA15V IP44 Distribution Enclosure?

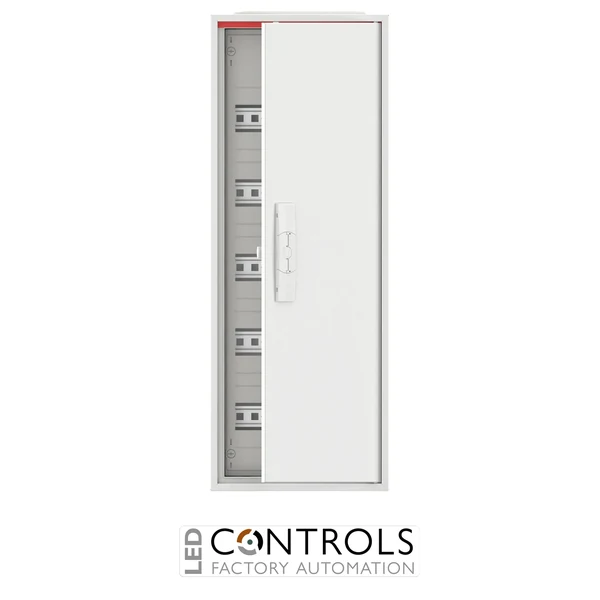

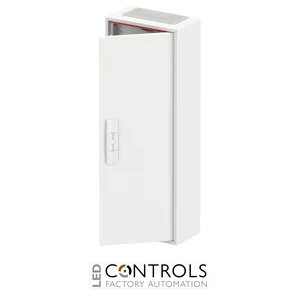

The ABB CA15V is a compact ComfortLine Compact surface-mounted distribution enclosure designed for professional low-voltage sub-distribution installations. Supplied under ABB order code 2CPX052182R9999, this Class II enclosure combines a robust sheet-steel cabinet and door with IP44 protection, making it suitable for indoor commercial, residential and industrial electrical installations.

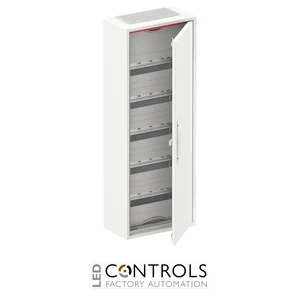

With external dimensions of 300 mm wide × 800 mm high × 160 mm deep, the CA15V provides 60 modular spaces across five rows, with a DIN rail spacing of 125 mm. The enclosure incorporates N/PE quick terminals and a removable device support, helping simplify installation and wiring of compatible modular protection and distribution equipment.
Rated for an operational voltage of up to 400 V AC, 50/60 Hz and a rated current of up to 125 A, the CA15V provides a dependable platform for low-voltage distribution. Its IK07 impact resistance, RAL 9016 powder-coated finish and single-leaf sheet-steel door provide a durable and professional solution for wall-mounted distribution applications.
Key Advantages
- Compact 60-module surface-mounted distribution enclosure.
- IP44 protection and IK07 mechanical impact resistance.
- Five rows with 60 modular spaces for flexible equipment installation.
- Rated for up to 400 V AC and 125 A.
- Class II double-insulated construction for electrical protection.
- Integrated N/PE quick terminals and cable fastening provision simplify installation.
Key Features
- ABB ComfortLine Compact CA15V distribution board.
- 300 × 800 × 160 mm external dimensions.
- 60 modular spaces.
- Five DIN rail rows.
- 125 mm DIN rail spacing.
- IP44 degree of protection.
- IK07 impact resistance.
- Single-leaf sheet-steel door with RAL 9016 powder-coated finish.
Reliable Low-Voltage Distribution for Professional Installations
Surface-mounted distribution boards provide a structured enclosure for modular protective devices and associated low-voltage distribution equipment. The ABB CA15V combines five equipment rows with integrated DIN rails, N/PE terminals and cable management features, helping installers create organised and accessible electrical distribution systems.
The CA15V is designed for indoor use and combines IP44 environmental protection with IK07 impact resistance. Its Class II construction, 60-module capacity and compact 300 mm width make it particularly suitable for installations requiring substantial distribution capacity without an excessively wide enclosure.
Typical Applications
- Commercial low-voltage distribution systems.
- Residential and multi-occupancy electrical installations.
- Industrial building distribution systems.
- Building-services and infrastructure installations.
- DIN rail protection and switching equipment.
- Professional electrical panel building and sub-distribution.
