Why Choose the ABB CA34V ComfortLine Compact Distribution Board?

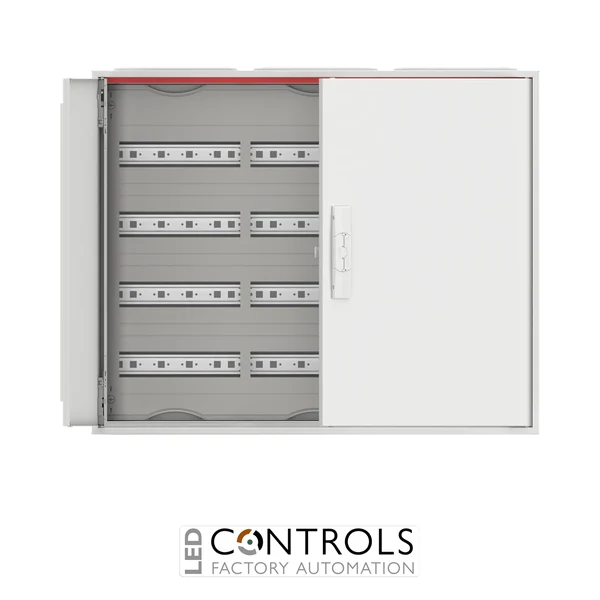

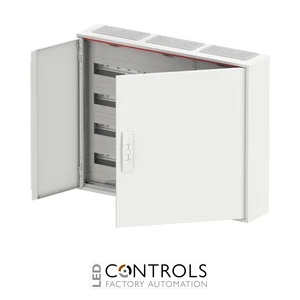

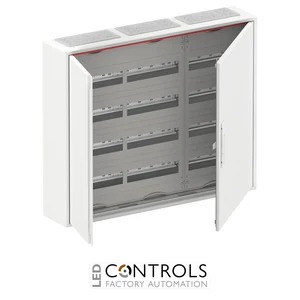

The ABB CA34V is a robust ComfortLine Compact low-voltage distribution board designed for surface-mounted indoor electrical installations. Supplied under ABB order code 2CPX052190R9999, the CA34V forms part of ABB's DESUJ Sub Distribution product group and provides a partly assembled enclosure for professional commercial, residential and industrial distribution applications.
The CA34V provides 144 space units across 4 rows and a 3-panel-width arrangement, with a DIN rail spacing of 125 mm. Its sheet-steel enclosure and double sheet-steel doors are powder-coated in RAL 9016, while an IP44 ingress protection rating and IK07 impact resistance provide robust protection for compatible internal electrical equipment.
With external dimensions of 800 mm wide × 650 mm high × 160 mm deep, the CA34V combines substantial distribution capacity with a relatively shallow enclosure. It is rated for operation at up to 400 V AC, 50/60 Hz and 125 A, with integrated N/PE quick terminals and a cable fastening rail helping simplify professional installation and wiring.
Key Advantages
- Professional ComfortLine Compact distribution board for surface-mounted installations.
- 144 space units across 4 rows provide substantial capacity for modular electrical equipment.
- IP44 protection and IK07 impact resistance for robust indoor installations.
- 125 A rated current and up to 400 V AC rated operational voltage.
- Integrated N/PE quick terminals and cable fastening rail support efficient installation.
- Sheet-steel enclosure with double doors and durable RAL 9016 powder-coated finish.
Key Features
- ABB ComfortLine Compact CA34V distribution board.
- 144 space units.
- 4 rows with 125 mm DIN rail spacing.
- 3-panel-width configuration.
- IP44 degree of protection.
- IK07 mechanical impact resistance.
- 125 A rated current.
- 400 V AC, 50/60 Hz rated operational voltage.
- Class II double-insulated construction.
- Surface-mounted configuration for indoor applications.
- Sheet-steel enclosure with double sheet-steel doors.
- Integrated N/PE quick terminals and cable fastening rail.
Reliable Low-Voltage Distribution for Building Installations
Compact distribution boards provide a structured enclosure for modular protective and switching devices, terminals and associated wiring. The ABB CA34V combines generous equipment capacity with integrated cable-management features, DIN rail mounting and N/PE quick terminals to support organised installation and straightforward servicing.
The CA34V's IP44 protection, IK07 impact resistance and sheet-steel construction make it suitable for demanding indoor applications. Its 144 space units, four-row arrangement and 3PW format provide substantial flexibility for configuring compatible modular equipment in residential, commercial and industrial low-voltage distribution systems.
Typical Applications
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution systems.
- Residential and multi-occupancy building installations.
- Building-services electrical distribution.
- Surface-mounted distribution-board installations.
- ABB ComfortLine and compatible modular distribution assemblies.
