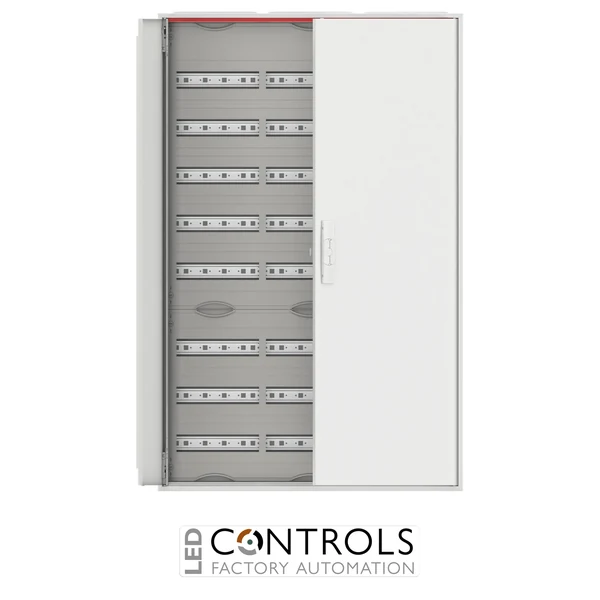

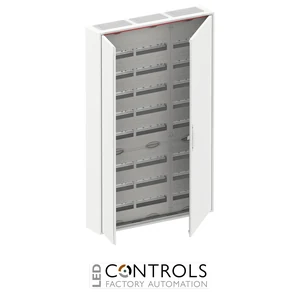

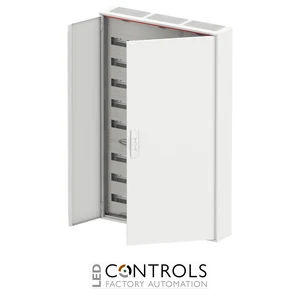

Why Choose the ABB CA38V IP44 ComfortLine Compact Distribution Board?
The ABB CA38V is a high-capacity ComfortLine Compact surface-mounted distribution board designed for organised low-voltage power distribution in commercial, residential and industrial buildings. As part of the ABB DESUJ Sub Distribution range, it combines a durable sheet-steel enclosure with modular DIN-rail equipment mounting and integrated N/PE quick terminals.
With external dimensions of 800 mm wide × 1250 mm high × 160 mm deep, the CA38V provides 288 modular spaces across 8 rows and three panel widths. The 125 mm DIN-rail spacing and removable device supports provide a structured platform for installing compatible modular protection and distribution equipment.
The CA38V is rated for up to 125 A at 400 V AC, 50/60 Hz and provides IP44 environmental protection and IK07 impact resistance. Its powder-coated RAL 9016 sheet-steel enclosure, double doors, integrated cable fastening rail and Class II double-insulated construction make it a dependable solution for indoor electrical distribution installations.
Key Advantages
- High-capacity 288-module ComfortLine Compact distribution board.
- 8 DIN-rail rows with 125 mm row spacing for organised modular equipment installation.
- 125 A rated current and 400 V AC operating voltage for low-voltage distribution.
- IP44 protection rating and IK07 mechanical impact resistance.
- Class II double-insulated construction for enhanced electrical protection.
- Integrated N/PE quick terminals and cable fastening rail simplify panel assembly.
Key Features
- ABB ComfortLine Compact CA series.
- Surface-mounted distribution board for indoor installations.
- 288 modular spaces.
- 8 equipment rows across 3 panel widths.
- 125 mm DIN-rail row spacing.
- 125 A rated current.
- 400 V AC, 50/60 Hz rated operational voltage.
- IP44 degree of protection.
- IK07 impact resistance.
- Sheet-steel enclosure and double doors with RAL 9016 powder-coated finish.
- Integrated N/PE quick terminals and cable fastening rail.
- ABB order code 2CPX052194R9999.
Reliable Power Distribution for Building Installations
Distribution boards such as the ABB CA38V provide a structured enclosure for protective, switching and distribution devices used throughout low-voltage electrical systems. Multiple DIN-rail rows allow circuits to be arranged logically, while integrated neutral and protective-earth terminals help simplify wiring and maintain an orderly installation.
The ComfortLine Compact range is designed for surface-mounted indoor installations and provides flexible modular expansion for residential, commercial and industrial buildings. The CA38V's 288 modular spaces, robust steel construction and integrated cable-management features make it particularly suitable for larger distribution systems requiring substantial device capacity.
Typical Applications
- Commercial building electrical distribution.
- Industrial low-voltage distribution systems.
- Residential and multi-occupancy building distribution.
- Building-services electrical installations.
- Modular circuit protection and switching assemblies.
- Large indoor distribution boards requiring up to 288 modular spaces.
