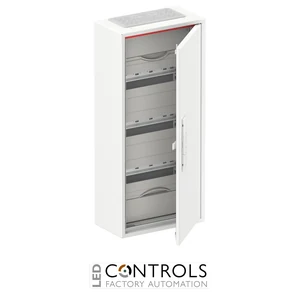

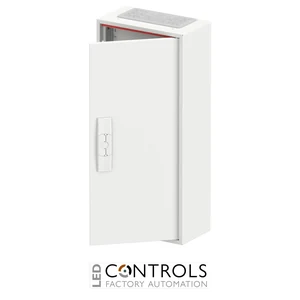

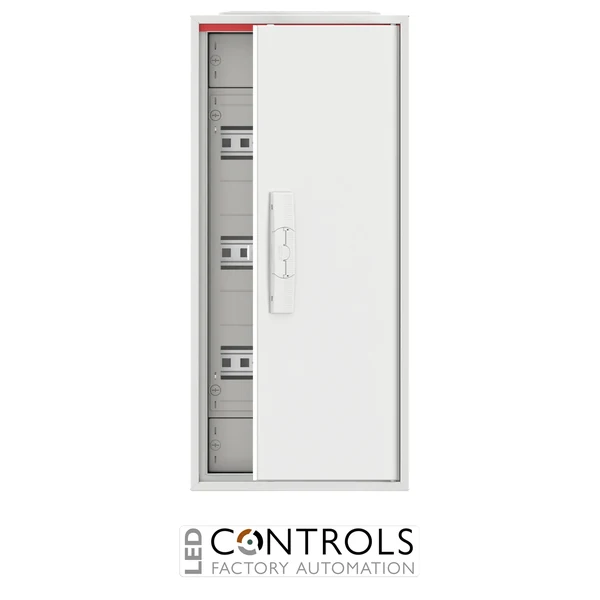

Why Choose the ABB CA14R IP44 ComfortLine Compact Enclosure?
The ABB CA14R is a ComfortLine Compact CA wall-mounted distribution enclosure designed for professional low-voltage sub-distribution applications. Supplied under ABB order code 2CPX052229R9999, it combines a compact 300 × 650 × 160 mm format with a robust sheet-steel enclosure and door.
The CA14R provides 36 modular spaces arranged across 3 rows, with a 150 mm DIN-rail spacing. It is supplied with DIN rails and N/PE terminal facilities, providing an organised platform for installing compatible DIN-rail electrical devices within commercial and industrial distribution systems.
With an IP44 degree of protection, IK07 mechanical impact resistance and a RAL 9016 white finish, the CA14R provides a practical enclosure solution for indoor wall-mounted distribution applications. Its rated operating voltage is 400 V AC, 50/60 Hz, with a rated current capability of up to 125 A.
Key Advantages
- IP44 enclosure protection for compatible installation environments.
- Compact 300 × 650 × 160 mm external dimensions.
- Provides 36 modular spaces across 3 rows.
- Rated for operating voltages up to 400 V AC, 50/60 Hz.
- Supports rated currents up to 125 A.
- IK07 mechanical impact resistance.
- Designed for straightforward wall-mounted installation.
- Genuine ABB ComfortLine Compact enclosure for professional sub-distribution applications.
Key Features
- ABB CA14R ComfortLine Compact distribution enclosure.
- 300 mm external width.
- 650 mm external height.
- 160 mm external depth.
- IP44 degree of protection.
- IK07 mechanical impact resistance.
- 36 modular spaces.
- 3 DIN-rail rows.
- 150 mm spacing between DIN rails.
- Sheet-steel enclosure with sheet-steel door.
- N/PE terminal facilities.
- RAL 9016 white finish.
- Wall-mounted installation.
- ABB order code 2CPX052229R9999.
Compact and Structured Low-Voltage Distribution
The ABB CA14R provides a coordinated enclosure for DIN-rail-mounted protection and distribution equipment. Its 3-row, 36-module layout and 150 mm rail spacing provide a structured internal arrangement for compatible modular devices, while the integrated N/PE terminal facilities support organised conductor termination.
The sheet-steel construction, IP44 protection and IK07 impact rating make the CA14R a robust choice for professional wall-mounted distribution systems. Its compact 300 × 650 × 160 mm footprint makes it particularly useful where dependable sub-distribution capacity is required without the dimensions of a larger floor-standing cabinet.
Typical Applications
- Commercial low-voltage sub-distribution boards.
- Industrial electrical distribution systems.
- Building-services electrical installations.
- DIN-rail protection and control equipment assemblies.
- Wall-mounted electrical distribution cabinets.
- Professional panel building and electrical system integration.
