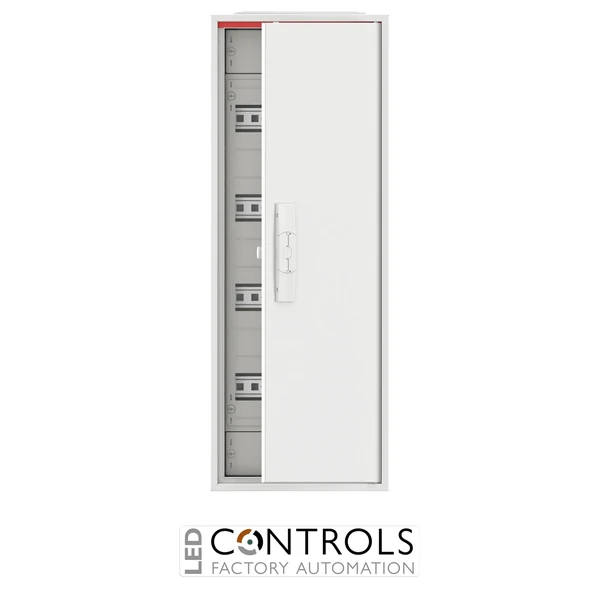

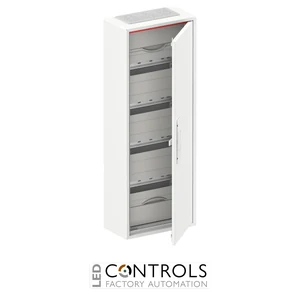

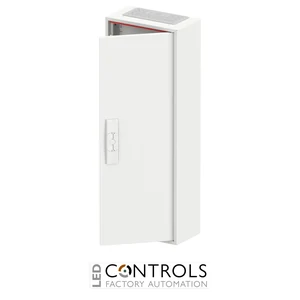

Why Choose the ABB CA15R IP44 ComfortLine Compact Enclosure?
The ABB CA15R is a ComfortLine Compact CA wall-mounted distribution enclosure designed for professional low-voltage sub-distribution applications. Supplied under ABB order code 2CPX052230R9999, it combines a compact 300 × 800 × 160 mm format with a sheet-steel door and an organised modular interior.
The CA15R provides 48 modular spaces arranged across 4 rows, with 150 mm spacing between DIN rails. It is designed for DIN-rail-mounted devices and incorporates N/PE terminal facilities, providing a structured platform for compatible protection and distribution equipment.
With an IP44 degree of protection, IK07 mechanical impact resistance and a RAL 9016 finish, the CA15R is suited to professional wall-mounted distribution applications. Its rated operating voltage is 400 V AC at 50/60 Hz, with a rated current of up to 125 A.
Key Advantages
- IP44 degree of protection for compatible installation environments.
- Compact 300 × 800 × 160 mm enclosure dimensions.
- Provides 48 modular spaces across 4 rows.
- 150 mm spacing between DIN rails.
- Rated operating voltage of 400 V AC, 50/60 Hz.
- Rated current capability of up to 125 A.
- IK07 mechanical impact resistance.
- Purpose-designed for professional wall-mounted low-voltage distribution.
Key Features
- ABB CA15R ComfortLine Compact distribution enclosure.
- 300 mm external width.
- 800 mm external height.
- 160 mm external depth.
- IP44 degree of protection.
- IK07 mechanical impact resistance.
- 48 modular spaces.
- 4 DIN-rail rows.
- 150 mm DIN-rail spacing.
- Single-column configuration with a single sheet-steel door.
- N/PE terminal facilities for conductor termination.
- RAL 9016 finish.
- Designed for wall mounting.
- ABB order code 2CPX052230R9999.
Compact and Structured Low-Voltage Distribution
The ABB CA15R provides a coordinated enclosure for DIN-rail-mounted protection and distribution devices. Its 4-row, 48-module arrangement and 150 mm DIN-rail spacing provide an organised interior for compatible modular equipment, while the N/PE terminal facilities support structured conductor termination.
The IP44 enclosure protection, IK07 impact resistance and sheet-steel door make the CA15R a practical solution for professional wall-mounted distribution systems. Its 300 × 800 × 160 mm dimensions provide useful distribution capacity while retaining the narrow single-column format of the ComfortLine Compact CA range.
Typical Applications
- Commercial low-voltage sub-distribution boards.
- Industrial electrical distribution systems.
- Building-services electrical installations.
- DIN-rail protection and distribution assemblies.
- Wall-mounted electrical distribution cabinets.
- Professional panel building and electrical system integration.
