Why Choose the ABB CA16R IP44 Enclosure?

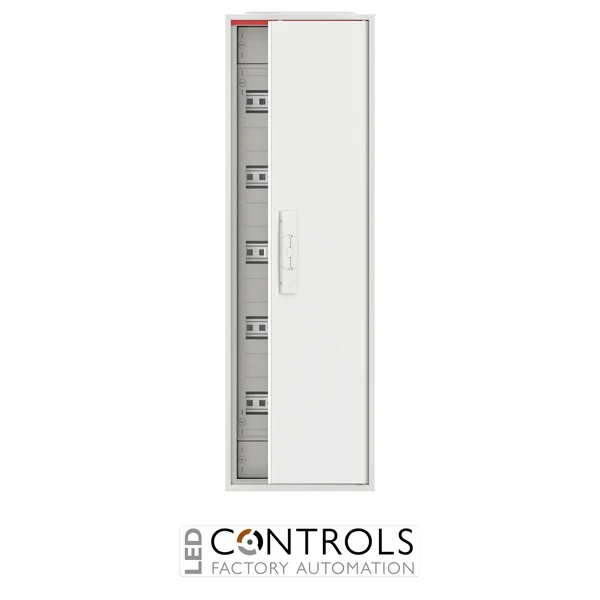

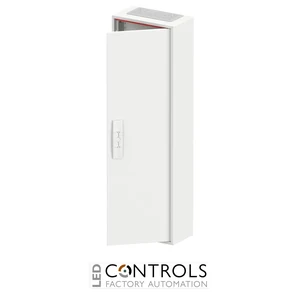

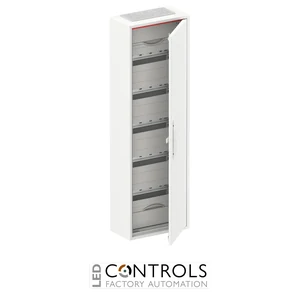

The ABB CA16R is an IP44 electrical enclosure designed for compatible ABB low-voltage sub-distribution installations. Supplied under ABB order code 2CPX052231R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a coordinated enclosure solution for professional electrical distribution and panel-building applications.
With nominal dimensions of 300 mm wide × 950 mm high × 160 mm deep, the CA16R combines a relatively narrow footprint with useful vertical installation space. This format makes it particularly suitable for distribution applications where available wall or cabinet width is limited while a taller equipment arrangement is required.
The IP44 degree of protection provides protection against solid objects larger than 1 mm and splashing water from any direction when the enclosure is correctly installed as part of the intended assembly. The CA16R is therefore a practical ABB enclosure for compatible commercial, industrial and building-services electrical distribution applications.
Key Advantages
- IP44 enclosure for protected low-voltage distribution installations.
- Narrow 300 mm width helps optimise installation space.
- 950 mm height provides useful vertical capacity for compatible equipment arrangements.
- 160 mm depth maintains a relatively shallow enclosure profile.
- System-specific ABB design supports integration with compatible sub-distribution components.
- Suitable for professional distribution-board and panel-building applications.
Key Features
- ABB CA16R IP44 electrical enclosure.
- ABB order code 2CPX052231R9999.
- IP44 degree of protection.
- Nominal width of 300 mm.
- Nominal height of 950 mm.
- Nominal depth of 160 mm.
- Designed for compatible low-voltage sub-distribution equipment.
- Suitable for structured electrical cabinet and distribution-board construction.
- Part of the ABB DESUJ Sub Distribution product group.
Space-Efficient Protection for Low-Voltage Distribution
Electrical enclosures provide the physical housing required to organise and protect compatible switching, protection and distribution equipment. Enclosure dimensions are an important consideration when designing a distribution system, particularly where installation width is restricted or equipment needs to be arranged vertically.
The ABB CA16R combines a narrow 300 mm width with a 950 mm height, 160 mm depth and IP44 degree of protection. This makes it a practical enclosure platform for compatible ABB sub-distribution installations requiring a tall, space-efficient cabinet format.
Typical Applications
- ABB low-voltage sub-distribution assemblies.
- Commercial electrical distribution boards.
- Industrial electrical distribution installations.
- Building-services electrical systems.
- Space-conscious distribution installations.
- Switchgear and protection-device enclosures.
- Professional panel-building applications.
