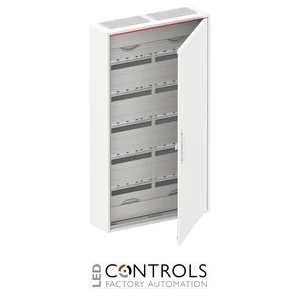

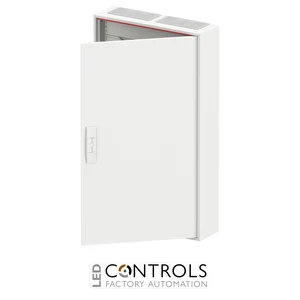

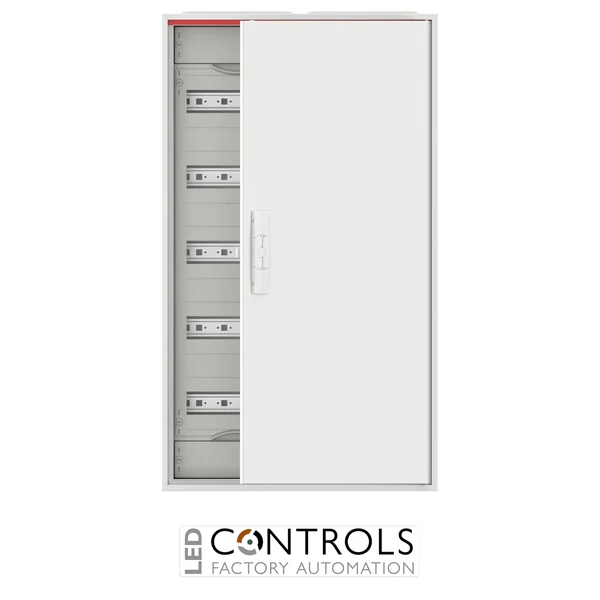

Why Choose the ABB CA26R ComfortLine Compact Distribution Board?
The ABB CA26R is a robust ComfortLine Compact low-voltage distribution board designed for surface-mounted indoor electrical installations. Supplied under ABB order code 2CPX052237R9999, the CA26R forms part of ABB's DESUJ Sub Distribution product group and provides a partly assembled enclosure for professional electrical distribution applications.
The CA26R provides 120 space units across 5 rows in a 2-panel-width (2PW) configuration, with a DIN rail spacing of 150 mm. Its sheet-steel enclosure and single-leaf sheet-steel door are finished in RAL 9016, while an IP44 ingress protection rating and IK07 impact resistance provide robust protection for compatible internal electrical equipment.
With external dimensions of 550 mm wide × 950 mm high × 160 mm deep, the CA26R combines substantial distribution capacity with a relatively shallow enclosure. It is rated for operation at up to 400 V AC, 50/60 Hz and 125 A, with N/PE quick terminals and an integrated cable fastening rail supporting efficient installation and wiring.
Key Advantages
- Professional ComfortLine Compact distribution board for surface-mounted installations.
- 120 space units across 5 rows provide substantial capacity for modular electrical equipment.
- IP44 protection and IK07 impact resistance for robust indoor installations.
- 125 A rated current and 400 V AC operational voltage.
- Integrated N/PE quick terminals and cable fastening rail support efficient installation.
- Sheet-steel enclosure with a durable RAL 9016 powder-coated finish.
Key Features
- ABB ComfortLine Compact CA26R distribution board.
- 120 space units.
- 5 rows with 150 mm DIN rail spacing.
- 2-panel-width (2PW) configuration.
- IP44 degree of protection.
- IK07 mechanical impact resistance.
- 125 A rated current.
- 400 V AC, 50/60 Hz operational rating.
- Class II double-insulated construction.
- Surface-mounted configuration for indoor applications.
- Sheet-steel enclosure with single-leaf sheet-steel door.
- Integrated N/PE quick terminals and cable fastening rail.
Reliable Low-Voltage Distribution for Building Installations
Compact distribution boards provide a structured enclosure for modular protective and switching devices, terminals and associated wiring. The ABB CA26R combines generous equipment capacity with integrated cable-management features, DIN rail mounting and N/PE quick terminals to support organised installation and straightforward servicing.
The CA26R's IP44 protection, IK07 impact resistance and sheet-steel construction make it suitable for demanding indoor applications. Its 120 space units, five-row arrangement and 2PW format provide substantial flexibility for configuring compatible modular equipment in residential, commercial and industrial low-voltage distribution systems.
Typical Applications
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution systems.
- Residential and multi-occupancy building installations.
- Building-services electrical distribution.
- Surface-mounted distribution-board installations.
- ABB ComfortLine and compatible modular distribution assemblies.
