Why Choose the ABB CA28R ComfortLine Compact Distribution Board?

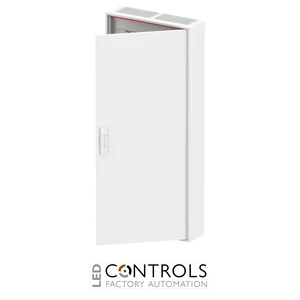

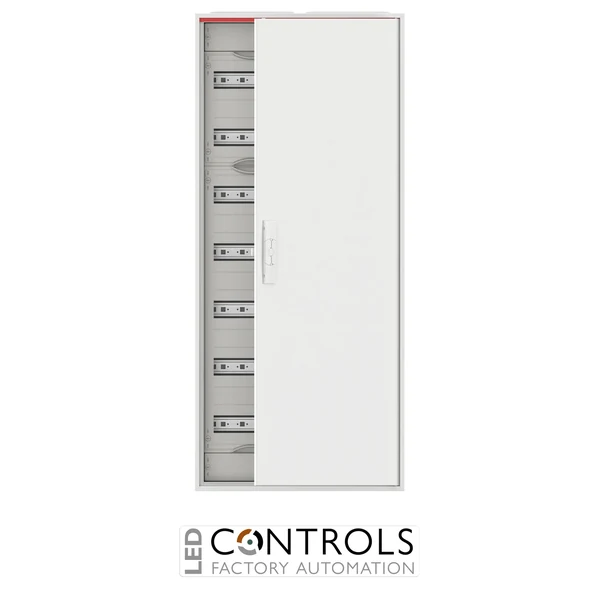

The ABB CA28R is a robust ComfortLine Compact surface-mounted distribution board designed for professional indoor electrical sub-distribution installations. It combines a durable enclosure with a steel door and DIN-rail equipment mounting, providing an organised platform for protective, switching and modular electrical devices.

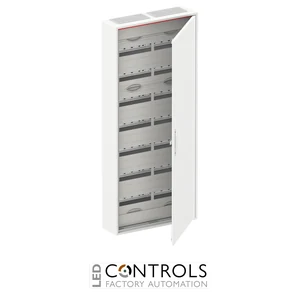

Designed with 2 columns, 7 rows and 168 modular space units, the CA28R provides substantial installation capacity while maintaining a relatively shallow enclosure depth. The DIN rails have a 150 mm row spacing, and the distribution board incorporates N/PE terminal arrangements to support efficient wiring and structured panel assembly.
With external dimensions of 550 mm wide × 1250 mm high × 160 mm deep, the CA28R is rated for 400 V AC at 50/60 Hz and currents up to 125 A. Its IP44 ingress protection, IK07 mechanical impact resistance and RAL 9016 finish make it well suited to commercial, industrial and building-services distribution applications.
Key Advantages
- Professional ABB ComfortLine Compact distribution board for surface-mounted applications.
- 168 modular space units provide substantial capacity for DIN-rail equipment.
- 7 rows across 2 columns support structured electrical distribution layouts.
- 400 V AC operating voltage and rated current up to 125 A.
- IP44 ingress protection with IK07 mechanical impact resistance.
- Integrated N/PE terminal arrangements support efficient and organised panel wiring.
Key Features
- ABB ComfortLine Compact CA series.
- 168 modular space units.
- 7 DIN-rail rows.
- 2-column configuration.
- 150 mm DIN-rail row spacing.
- 400 V AC, 50/60 Hz rated operational voltage.
- Rated current up to 125 A.
- IP44 protection rating.
- IK07 mechanical impact resistance.
- Steel door with RAL 9016 finish.
- Surface-mounted configuration for electrical distribution applications.
Reliable Electrical Distribution for Professional Installations
Surface-mounted distribution boards provide a structured enclosure for circuit protection, switching devices, terminals and associated wiring. The ABB CA28R offers 168 modular spaces across seven rows, allowing a substantial number of DIN-rail devices to be arranged in a clear and maintainable configuration.
The CA28R combines IP44 ingress protection with IK07 impact resistance and a durable steel door, helping protect installed equipment in demanding indoor environments. Its integrated N/PE terminal arrangements and 150 mm DIN-rail spacing further support efficient wiring, installation and ongoing maintenance.
Typical Applications
- Commercial building electrical distribution.
- Industrial sub-distribution systems.
- Building-services electrical installations.
- DIN-rail protective and switching device assemblies.
- Electrical distribution for offices, workshops and facilities.
- Panel building, refurbishment and electrical infrastructure projects.
