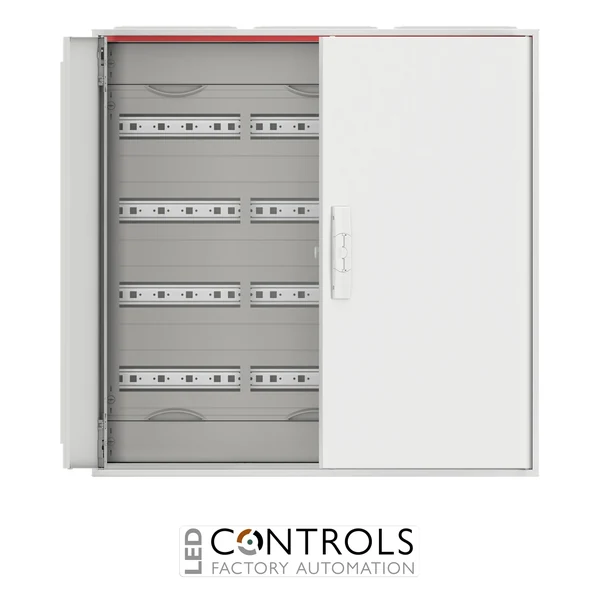

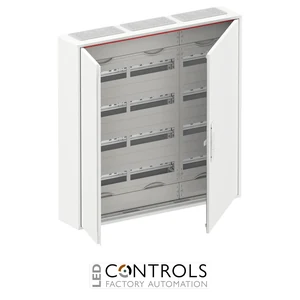

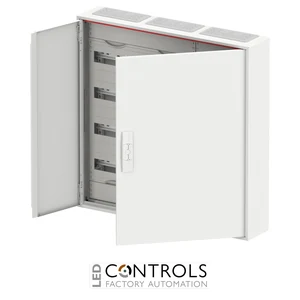

Why Choose the ABB CA35R ComfortLine Compact Distribution Board?
The ABB CA35R is a robust ComfortLine Compact surface-mounted distribution board designed for professional indoor electrical sub-distribution applications. Its steel enclosure, closed double door and DIN-rail mounting system provide a durable and organised platform for installing compatible modular protection, switching and distribution equipment.
The CA35R provides 144 modular space units in a 3-field-width, 4-row configuration. With DIN-rail equipment mounting and N/PE terminal blocks, it supports structured wiring and efficient assembly while allowing compatible expansion of the distribution system.
With external dimensions of 800 mm wide × 800 mm high × 160 mm deep, the CA35R combines substantial installation capacity with a relatively shallow cabinet profile. Its IP44 protection rating, Class II insulated construction and white RAL 9016 finish make it well suited to professional commercial, industrial and building-services installations.
Key Advantages
- Professional ABB ComfortLine Compact distribution board for surface-mounted installations.
- 144 modular space units provide substantial capacity for DIN-rail devices.
- 3-field-width, 4-row configuration supports structured distribution layouts.
- IP44 ingress protection for dependable indoor electrical installations.
- Integrated neutral and protective-earth terminal blocks support organised wiring.
- Durable steel construction with a lockable closed double door.
Key Features
- ABB ComfortLine Compact CA series.
- 144 modular space units.
- 4 DIN-rail rows.
- 3-field-width configuration.
- 36 modular spacings per row.
- 150 mm DIN-rail row spacing.
- IP44 protection rating.
- Class II insulated construction.
- Steel enclosure with closed double door.
- Integrated neutral and protective-earth terminal blocks.
- White RAL 9016 finish.
- Surface-mounted configuration for indoor electrical distribution.
Reliable Electrical Distribution for Professional Installations
Surface-mounted distribution boards provide a structured enclosure for circuit protection, switching devices, terminals and associated wiring. The ABB CA35R offers 144 modular spaces across four DIN-rail rows, enabling compatible electrical devices to be arranged in a clear, accessible and maintainable configuration.
The CA35R combines a durable steel enclosure with IP44 protection, Class II insulation, integrated N/PE terminal blocks and a lockable double door. These features make it a practical foundation for professional sub-distribution systems in commercial buildings, industrial facilities and general building-services installations.
Typical Applications
- Commercial building electrical distribution.
- Industrial sub-distribution systems.
- Building-services electrical installations.
- DIN-rail protective and switching device assemblies.
- Electrical distribution for offices, workshops and facilities.
- Panel building, refurbishment and electrical infrastructure projects.
