Why Choose the ABB CA24RT ComfortLine Compact Distribution Board?

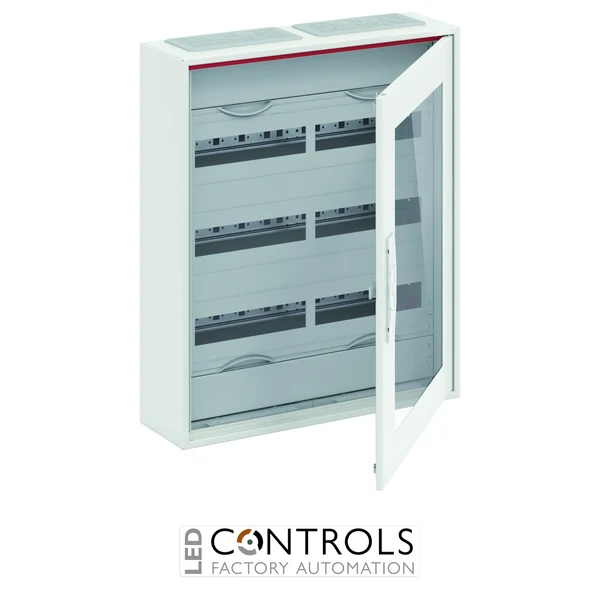

The ABB CA24RT is a compact and robust IP44 surface-mounted distribution board designed for organised low-voltage sub-distribution in commercial, industrial and building installations. As part of the ABB ComfortLine Compact CA series, it combines a durable sheet-steel enclosure with a transparent door and practical internal equipment for rail-mounted modular devices.
The CA24RT provides 72 space units across three rows and two panel-width fields, giving installers useful capacity for modular protection and control devices. It incorporates DIN rails, N/PE Quick terminals and an integrated cable fastening rail, helping simplify installation and provide an orderly distribution-board layout.
With external dimensions of 650 mm high × 550 mm wide × 160 mm deep, an IP44 protection rating and a rated current of 125 A, the CA24RT provides a space-efficient solution for indoor sub-distribution applications. The enclosure is finished in RAL 9016 and uses a transparent door that can be hinged on either the right or left.
Key Advantages
- Compact surface-mounted distribution board for professional electrical installations.
- 72 space units provide useful capacity for modular rail-mounted devices.
- IP44 protection rating with the door fitted.
- 125 A rated current for low-voltage sub-distribution applications.
- Integrated N/PE Quick terminals support efficient wiring and installation.
- Transparent door provides convenient visibility of installed equipment.
Key Features
- ABB ComfortLine Compact CA series.
- 72 space units arranged across three rows.
- Two field widths for organised modular equipment installation.
- 650 × 550 × 160 mm external dimensions.
- IP44 degree of protection.
- 125 A rated current and 400 V AC rated operational voltage.
- Sheet-steel enclosure with RAL 9016 finish.
- Transparent single door with approximately 120° opening angle.
- DIN rails and N/PE Quick terminals included.
- Integrated cable fastening rail for organised cable management.
Reliable Low-Voltage Sub-Distribution
Distribution boards such as the ABB CA24RT provide a structured enclosure for protective, switching and control devices used within downstream electrical circuits. DIN-rail mounting and integrated N/PE terminal facilities help installers create orderly assemblies while maintaining convenient access for inspection and maintenance.
The ComfortLine Compact CA series is designed for professional building and electrical distribution applications. The CA24RT combines a relatively shallow enclosure depth with 72 modular space units, making it well suited to installations requiring useful device capacity without an excessively deep wall-mounted cabinet.
Typical Applications
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution.
- Building services and facility installations.
- Modular circuit protection assemblies.
- Electrical plant rooms and service areas.
- Wall-mounted distribution and control installations.
