Why Choose the ABB CA36RZ1 ComfortLine Compact Distribution Board?

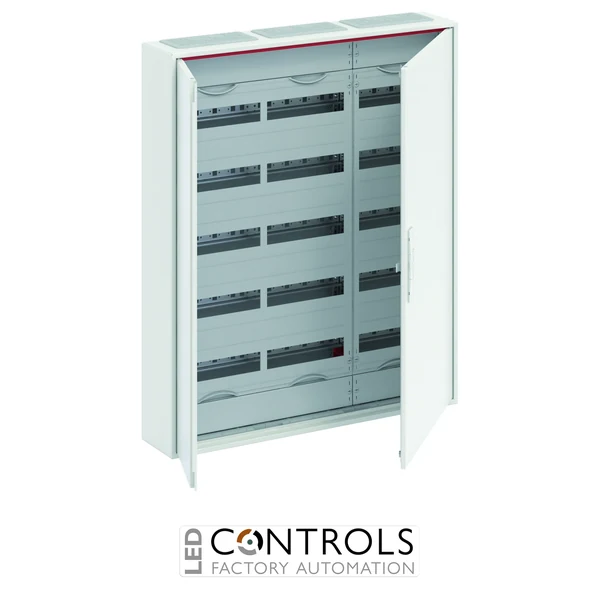

The ABB CA36RZ1 is a ComfortLine Compact low-voltage distribution board designed for wall-mounted electrical distribution installations. Supplied under ABB order code 2CPX052287R9999, the CA36RZ1 forms part of ABB's DESUJ Sub Distribution product group and provides a robust sheet-steel enclosure for professional modular distribution equipment.
The CA36RZ1 provides 180 space units across 5 rows in a 3-panel-width (3PW) arrangement, with 36 modules across its modular width. It is specifically configured for rail-mounted devices with N/PE screw terminals, a DIN rail spacing of 150 mm and a closing flange, providing an organised platform for professional low-voltage distribution assemblies.
With external dimensions of 800 mm wide × 950 mm high × 160 mm deep, the CA36RZ1 combines high modular capacity with a relatively shallow enclosure. Its IP44 protection, Class II construction, steel enclosure and double-door arrangement make it a practical choice for compatible indoor commercial, residential and industrial distribution installations.
Key Advantages
- High-capacity ComfortLine Compact distribution board for wall-mounted installations.
- 180 space units across 5 rows provide extensive capacity for modular electrical equipment.
- 3-panel-width (3PW) configuration with a 36-module modular width.
- IP44 protection supports protected indoor low-voltage installations.
- Equipped with N/PE screw terminals and a closing flange.
- Durable steel enclosure with RAL 9016 finish and double doors.
Key Features
- ABB ComfortLine Compact CA36RZ1 distribution board.
- 180 space units.
- 5 rows for modular rail-mounted equipment.
- 3-panel-width (3PW) configuration.
- 36-module modular width.
- 150 mm DIN rail spacing.
- N/PE screw terminals.
- Closing flange configuration.
- IP44 degree of protection.
- Class II electrical protection.
- Steel enclosure with non-transparent double doors.
- Surface-mounted configuration for professional distribution installations.
High-Capacity Modular Distribution in a Compact Enclosure
Modular distribution boards provide a structured housing for circuit protection, switching and associated low-voltage distribution equipment. Larger enclosures allow substantial numbers of DIN rail devices to be organised into clearly defined rows while retaining convenient access for installation, inspection and future maintenance.
The ABB CA36RZ1 provides 180 space units across 5 rows within an 800 × 950 × 160 mm enclosure. Its 3PW arrangement, 150 mm DIN rail spacing, N/PE screw terminals and closing flange make it particularly suited to professional distribution assemblies requiring high modular capacity and conventional screw-terminal connections.
Typical Applications
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution systems.
- Residential and multi-occupancy building installations.
- Building-services electrical distribution.
- High-capacity DIN rail distribution assemblies.
- ABB ComfortLine Compact modular distribution systems.
