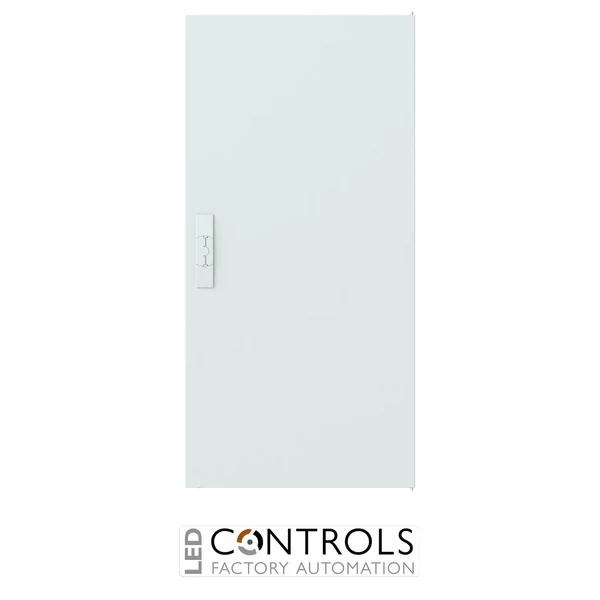

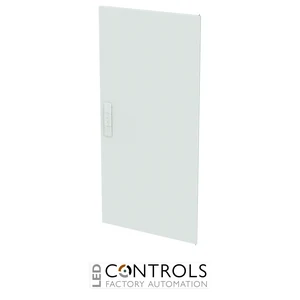

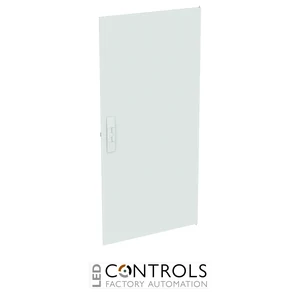

Why Choose the ABB CTB27S Solid Door?
The ABB CTB27S, order code 2CPX052331R9999, is a robust solid sheet-steel door designed for compatible ABB ComfortLine electrical distribution enclosures. As part of ABB’s DESUJ Sub Distribution product group, it provides a durable front door solution for professional sub-distribution boards, wall-mounted cabinets and compact distribution systems.
Designed for 2 panel widths and 7 grid units, the CTB27S incorporates a standard lock and 3-point rod locking system for secure enclosure closure. Its powder-coated white RAL 9016 finish provides a clean appearance suited to commercial and industrial electrical installations.
With overall dimensions of 1071 × 521 × 14 mm and an IP44 protection rating, the CTB27S is purpose-designed for compatible ABB ComfortLine cabinets. Its sheet-steel construction and integrated locking arrangement make it a dependable enclosure component for indoor electrical distribution applications.
Key Advantages
- Robust solid sheet-steel door for ABB ComfortLine distribution systems.
- Designed for 2 panel widths and 7 grid units.
- Integrated standard lock for secure enclosure closure.
- 3-point rod locking system provides secure multi-point fastening.
- IP44 protection rating for compatible ComfortLine enclosure installations.
- Powder-coated RAL 9016 white finish for a durable professional appearance.
Key Features
- ABB ComfortLine series.
- Solid sheet-steel door.
- 2 panel widths.
- 7 grid units.
- Standard locking closure.
- 3-point rod locking mechanism.
- IP44 protection rating.
- RAL 9016 white powder-coated finish.
- 1071 mm height × 521 mm width × 14 mm depth.
- Designed for indoor electrical distribution applications.
Reliable Enclosure Protection for ComfortLine Distribution Systems
The ABB CTB27S is engineered specifically for compatible ComfortLine electrical distribution cabinets. Its solid sheet-steel construction provides a robust protective front surface, while the powder-coated finish supports durable service in indoor electrical installations.
The integrated standard lock and 3-point rod locking mechanism secure the door at multiple points, helping provide dependable enclosure closure. Its 2 panel-width and 7 grid-unit configuration makes the CTB27S suitable for the corresponding ComfortLine cabinet formats used in professional electrical distribution systems.
Typical Applications
- ABB ComfortLine wall-mounted distribution cabinets.
- Electrical sub-distribution boards.
- Compact distribution systems.
- Commercial building electrical installations.
- Industrial electrical distribution systems.
- Panel building and enclosure assembly.
