Why Choose the ABB CZF1 ComfortLine Cable Entry Flange?

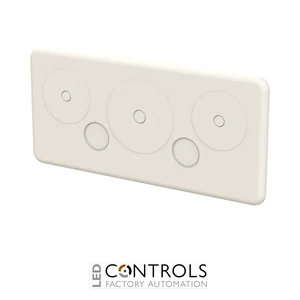

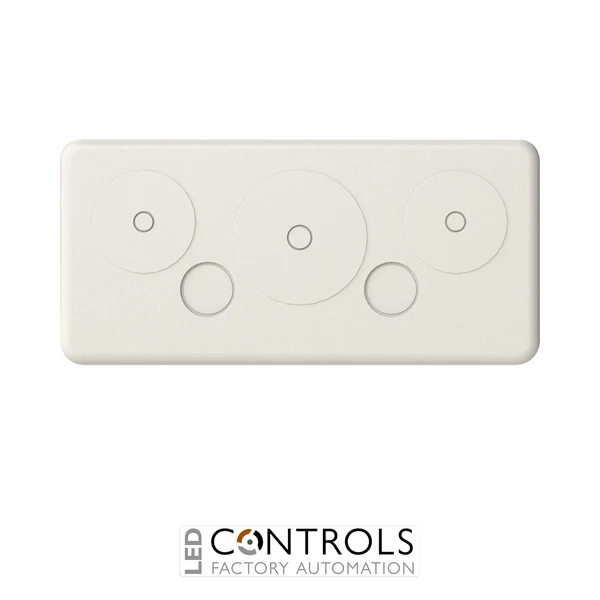

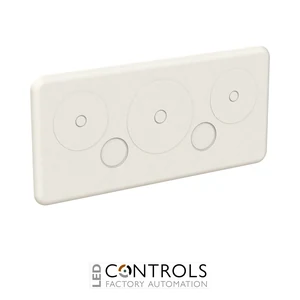

The ABB CZF1 is a purpose-designed ComfortLine membrane flange for cable entry, providing a convenient route for bringing power and control cables into compatible ABB electrical distribution enclosures. As part of the ABB DESUJ Sub Distribution range, it is designed for integration with compatible ComfortLine cabinet and distribution-board systems.
The CZF1 provides five cable-entry openings comprising 2 × 25.5 mm, 2 × 47.5 mm and 1 × 62 mm. This combination accommodates several cable sizes through a single enclosure flange and supports organised cable routing into the distribution assembly.
Measuring 223 mm wide × 22 mm high × 106 mm deep, the CZF1 uses a membrane design with breakout cable-entry points. It is suitable for compatible ComfortLine CA surface-mounted distribution boards and ComfortLine A and B cabinets, providing a genuine ABB solution for enclosure cable entry.
Key Advantages
- Genuine ABB ComfortLine cable-entry flange.
- Provides five cable-entry openings in three useful sizes.
- Includes 2 × 25.5 mm, 2 × 47.5 mm and 1 × 62 mm openings.
- Membrane construction supports straightforward cable insertion.
- Designed for compatible ComfortLine distribution boards and cabinets.
- Purpose-designed dimensions ensure compatibility with the appropriate ABB enclosure flange opening.
Key Features
- ABB ComfortLine enclosure accessory.
- Membrane cable-entry flange.
- 5 connection openings.
- 2 × 25.5 mm cable entries.
- 2 × 47.5 mm cable entries.
- 1 × 62 mm cable entry.
- Overall dimensions of 223 × 22 × 106 mm.
- Suitable for compatible ComfortLine CA, A and B enclosure systems.
- ABB order code 2CPX052435R9999.
Organised Cable Entry for Electrical Distribution Enclosures
Cable-entry flanges provide a defined route for bringing conductors into electrical enclosures while helping maintain an organised cabinet layout. Selecting a flange designed specifically for the enclosure system also simplifies installation and ensures the accessory fits the intended cabinet opening correctly.
The ABB CZF1 provides five membrane cable-entry points covering several useful cable diameters. Its compatibility with selected ComfortLine distribution boards and cabinets makes it a practical accessory for panel builders and electrical contractors configuring low-voltage distribution installations.
Typical Applications
- ABB ComfortLine CA surface-mounted distribution boards.
- ABB ComfortLine A and B cabinets.
- Low-voltage electrical distribution enclosures.
- Power and control cable entry.
- Commercial building distribution systems.
- Industrial and building-services electrical installations.
