Why Choose the ABB CZF2 Flange Gland Plate?

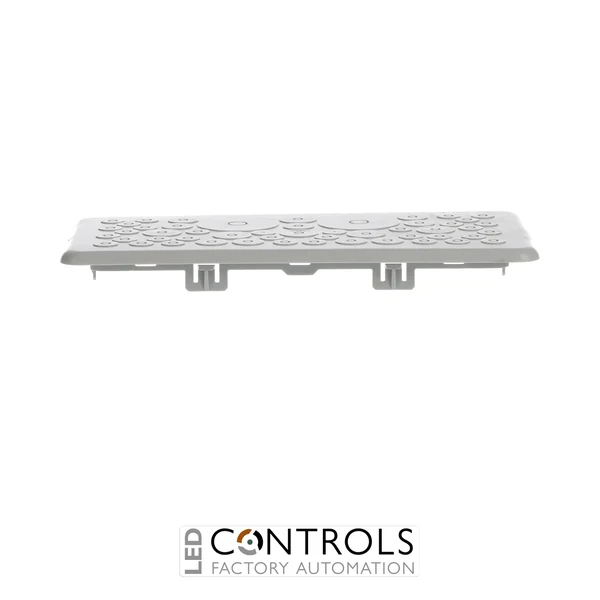

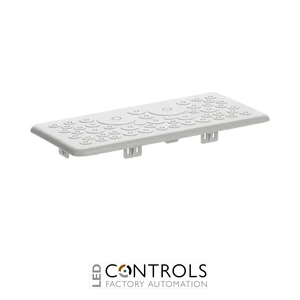

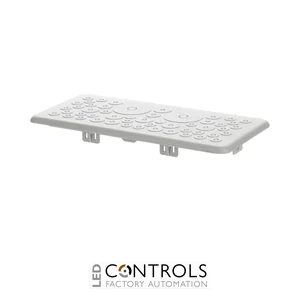

The ABB CZF2 is a membrane flange gland plate designed to provide an organised cable-entry point for compatible ABB ComfortLine electrical distribution cabinets. Supplied under ABB order code 2CPX052436R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides multiple membrane openings for routing power, control and data cables into an enclosure.
The CZF2 measures approximately 223 mm wide × 22 mm high × 106 mm deep and incorporates 51 connection openings. Its membrane arrangement includes 34 × 12 mm, 9 × 15.5 mm, 6 × 19 mm and 2 × 40.5 mm cable entries, together with two dedicated data-line entries.
Designed for ComfortLine A, ComfortLine B and ComfortLine Compact CA cabinets, the CZF2 provides a coordinated ABB cable-entry solution without requiring conventional threaded gland holes for every incoming conductor. In applicable ComfortLine cabinet configurations, one CZF2 membrane flange is factory fitted for each panel width.
Key Advantages
- Purpose-designed membrane flange for cable entry into ABB distribution cabinets.
- 51 connection openings provide extensive cable-routing flexibility.
- Multiple membrane sizes accommodate different cable diameters.
- Includes two dedicated data-line entries.
- Compatible with ComfortLine A, B and Compact CA cabinet systems.
- Compact 223 × 22 × 106 mm format integrates with compatible ABB enclosure flange positions.
Key Features
- ABB CZF2 membrane flange gland plate.
- 51 connection openings.
- 34 × 12 mm membrane entries.
- 9 × 15.5 mm membrane entries.
- 6 × 19 mm membrane entries.
- 2 × 40.5 mm membrane entries.
- 2 data-line entries.
- No threaded cable-entry arrangement required.
- Designed for the upper cable-entry area of compatible ComfortLine cabinets.
Flexible Cable Entry for ComfortLine Distribution Cabinets
Membrane gland plates provide a convenient method of introducing multiple cables into electrical enclosures while maintaining an organised entry area. Rather than requiring individual threaded gland holes across the complete plate, the ABB CZF2 provides numerous predefined membrane positions that can be used according to the cable arrangement required by the installation.
With 51 connection openings across several entry sizes, the CZF2 supports both smaller conductors and larger incoming cables, while its two data-line entries accommodate communications wiring. This makes the flange particularly useful in distribution boards containing a mixture of power, control and data connections.
Typical Applications
- ABB ComfortLine A wall-mounted cabinets.
- ABB ComfortLine B wall-mounted cabinets.
- ABB ComfortLine Compact CA distribution boards.
- Power and control cable entry into electrical enclosures.
- Data and communications cable entry.
- Commercial and industrial low-voltage distribution systems.
- Professional electrical panel building and system integration.
