Why Choose the ABB CZ1P4 External Mounting Brackets?

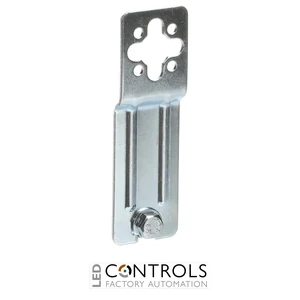

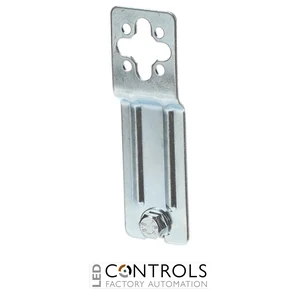

The ABB CZ1P4 is a set of external mounting brackets for ABB ComfortLine electrical distribution cabinets, providing a dedicated system accessory for securely mounting compatible enclosures. Supplied under ABB order code 2CPX052459R9999, the CZ1P4 forms part of ABB's DESUJ Sub Distribution product group.

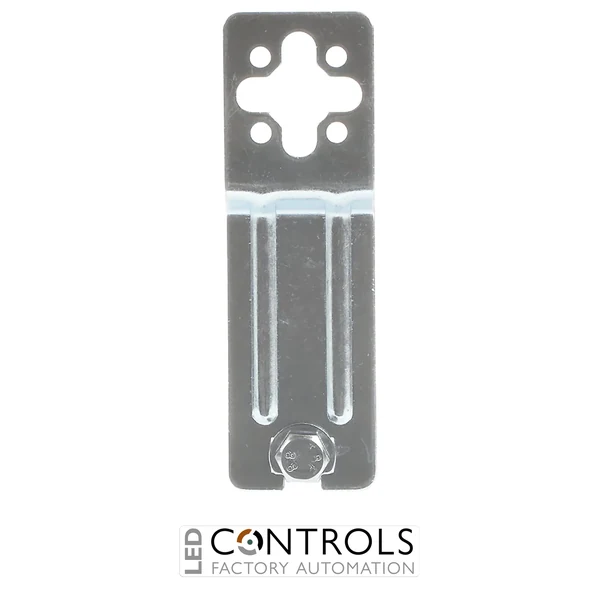

Each CZ1P4 set contains 4 external mounting brackets, providing the mounting points required for a compatible cabinet installation. Each bracket has nominal external dimensions of approximately 40 mm wide × 130 mm high × 20 mm deep, offering a compact mounting solution without requiring modification of the enclosure's internal equipment area.
The brackets are suitable for ABB ComfortLine A, ComfortLine B and ComfortLine Compact CA cabinets. Their system-specific design makes the CZ1P4 a practical choice for new enclosure installations, cabinet replacements and projects where compatible ABB distribution cabinets require external mounting hardware.
Key Advantages
- Dedicated external mounting brackets for ABB ComfortLine cabinets.
- Supplied as a complete set of 4 brackets.
- Compatible with ComfortLine A, ComfortLine B and ComfortLine Compact CA cabinets.
- Provides external mounting points without occupying the cabinet's internal equipment area.
- Compact bracket dimensions support straightforward enclosure installation.
- Genuine ABB system accessory for professional sub-distribution assemblies.
Key Features
- ABB CZ1P4 external mounting bracket set.
- 4 brackets per set.
- Designed for external cabinet mounting.
- Compatible with ABB ComfortLine A cabinets.
- Compatible with ABB ComfortLine B cabinets.
- Compatible with ABB ComfortLine Compact CA cabinets.
- 40 mm nominal width per bracket.
- 130 mm nominal height per bracket.
- 20 mm nominal depth per bracket.
- Metallic finish.
- ABB order code 2CPX052459R9999.
Secure External Mounting for Distribution Cabinets
External mounting brackets provide dedicated fixing points for attaching electrical distribution cabinets to the supporting installation surface. By positioning the mounting hardware externally, compatible brackets can simplify cabinet installation while leaving the internal equipment and wiring area available for electrical components.
The ABB CZ1P4 is supplied as a four-bracket set specifically intended for compatible ComfortLine cabinets. Compatibility with ComfortLine A, ComfortLine B and ComfortLine Compact CA makes the set a versatile system accessory for a range of ABB low-voltage sub-distribution enclosure installations.
Typical Applications
- External mounting of ABB ComfortLine A cabinets.
- External mounting of ABB ComfortLine B cabinets.
- External mounting of ABB ComfortLine Compact CA cabinets.
- Commercial and industrial electrical distribution installations.
- Building-services distribution cabinet installations.
- New enclosure installations and compatible cabinet replacements.
