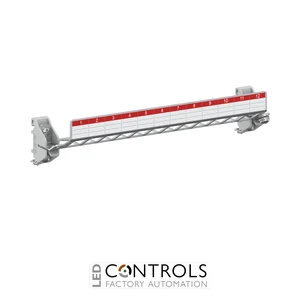

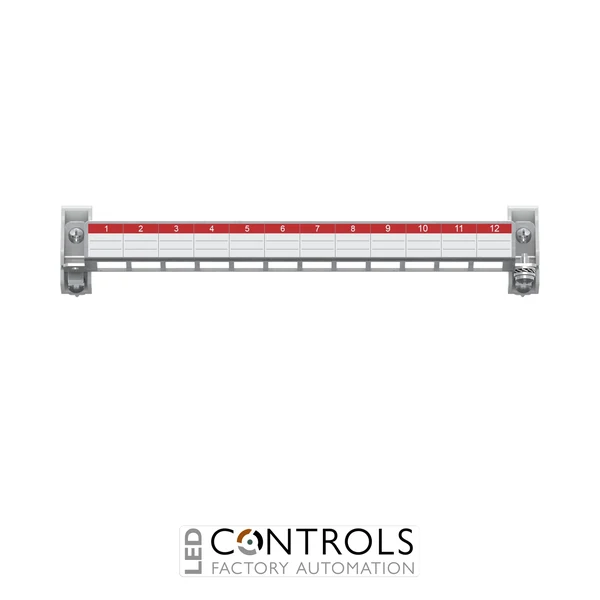

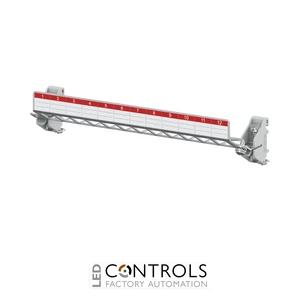

Why Choose the ABB ZEP12 Universal Patch Panel with Holder?
The ABB ZEP12 is a universal patch panel supplied with its holder for installing communication modules within compatible ABB media and sub-distribution enclosures. As part of the ABB DESUJ Sub Distribution range, it provides a structured mounting solution for data and communications connections alongside modern electrical distribution equipment.
The ZEP12 is a 1-panel-width patch panel for up to 12 modules and accepts both Keystone and E-DAT module formats. This dual-format design allows installers to configure the panel for compatible RJ45, data and other communication modules without requiring separate patch-panel versions for each supported format.
Measuring 246 mm wide × 32.7 mm high × 50.8 mm deep, the ZEP12 features a galvanised sheet-steel panel and an insulated holder for quick click mounting onto a compatible DIN rail. Supplied empty for application-specific module selection, it provides a flexible solution for multimedia and structured-cabling installations.
Key Advantages
- Universal 12-module patch panel for communication installations.
- Accepts both Keystone and E-DAT modules.
- 1-panel-width format for integration into compatible ABB media enclosures.
- Supplied with an insulated mounting holder.
- Quick click mounting onto a compatible DIN rail.
- Empty configuration allows communication modules to be selected for the individual installation.
Key Features
- ABB universal patch panel including holder.
- Capacity for 12 communication modules.
- Compatible with Keystone modules.
- Compatible with E-DAT modules.
- 1 panel wide.
- 12 place units.
- Galvanised sheet-steel patch panel construction.
- Insulated holder for quick rail mounting.
- Supplied empty for application-specific module configuration.
- ABB order code 2CPX054072R9999.
Flexible Communication Connectivity for Distribution Enclosures
Modern building distribution systems increasingly combine electrical protection with data, telecommunications and multimedia infrastructure. A dedicated patch panel such as the ABB ZEP12 provides an organised location for terminating compatible communication modules while keeping connections accessible within the enclosure.
By supporting both Keystone and E-DAT formats, the ZEP12 reduces the need for separate patch-panel variants and gives installers greater flexibility when configuring structured cabling systems. Its 12-module capacity and compact one-field-width design make it particularly suitable for compatible ABB media and multimedia distribution enclosures.
Typical Applications
- ABB media and multimedia distribution enclosures.
- Structured data cabling installations.
- RJ45 network connection modules.
- Building telecommunications systems.
- Residential and commercial multimedia distribution.
- Keystone and E-DAT communication-module installations.
