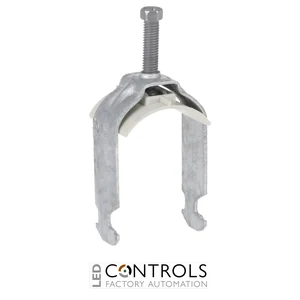

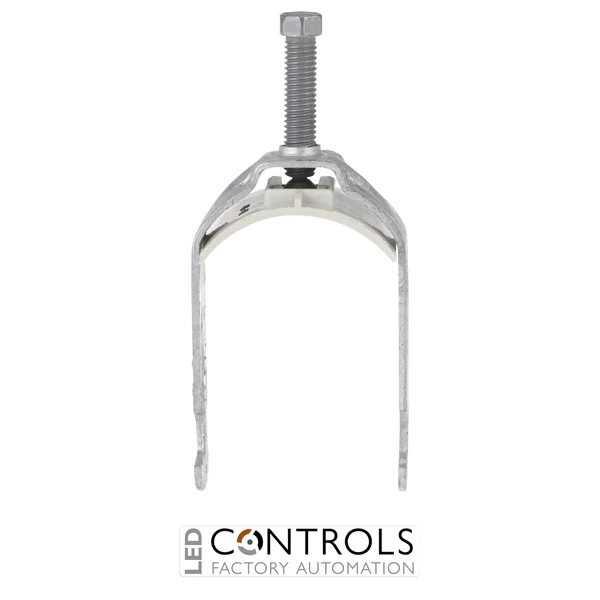

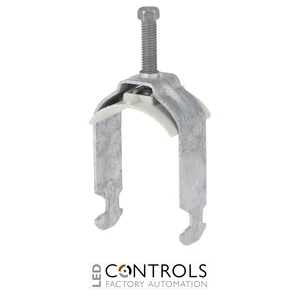

Why Choose the ABB ZK144 40–46 mm Bolt Clamp?
The ABB ZK144, order code 2CPX060006R9999, is a robust bolt clamp for securing cables within ABB electrical distribution and enclosure systems. As part of ABB’s DESUJ Sub Distribution product group, it is designed for installation on compatible cable clamp rails where dependable cable retention and strain relief are required.
Designed for cables with a clamping range of 40–46 mm, the ZK144 is suitable for ABB cable clamp rail profile No. 10 with profile dimensions of 35 × 19 mm. The clamp and screw are manufactured from stainless steel, providing a durable fastening solution for professional panel building and electrical distribution installations.
With overall dimensions of 45 × 50 × 110 mm and a net weight of approximately 0.08 kg, the ZK144 provides secure retention for a single cable while integrating neatly with compatible ABB cable support systems. Its profile-rail mounting arrangement makes it a practical accessory for cable management in sub-distribution boards, cabinets and electrical enclosures.
Key Advantages
- Purpose-designed bolt clamp for cable clamp rails.
- 40–46 mm cable clamping range for larger cables.
- Suitable for cable clamp rail profile No. 10.
- Compatible with 35 × 19 mm rail profiles.
- Stainless-steel clamp and screw for durable cable fastening.
- Supports secure cable retention and strain relief within electrical enclosures.
Key Features
- ABB ZK144 bolt clamp.
- 40–46 mm cable clamping range.
- Designed for profile No. 10 cable clamp rails.
- 35 × 19 mm compatible rail profile.
- Stainless-steel clamp.
- Stainless-steel screw.
- Profile-rail mounting.
- Designed to secure one cable.
- 45 × 50 × 110 mm overall dimensions.
- Suitable for professional electrical distribution and enclosure installations.
Reliable Cable Retention for Electrical Distribution Systems
Cable clamp systems provide mechanical retention for incoming and outgoing cables within electrical cabinets, helping relieve strain on cables and lines and reducing unwanted movement at connection points. The ABB ZK144 provides a secure mechanical fastening solution for a single cable within its specified 40–46 mm clamping range.
The ZK144 mounts onto compatible profile No. 10 cable clamp rails and can be used as part of ABB enclosure and sub-distribution cable-management arrangements. Its stainless-steel clamp and screw provide a durable solution for panel builders and electrical installers requiring reliable cable retention inside compatible distribution systems.
Typical Applications
- Cable retention within electrical distribution cabinets.
- ABB sub-distribution board installations.
- Cable strain-relief arrangements.
- Electrical control and automation panels.
- Panel building and enclosure assembly.
- Cable management on compatible profile No. 10 clamp rails.
