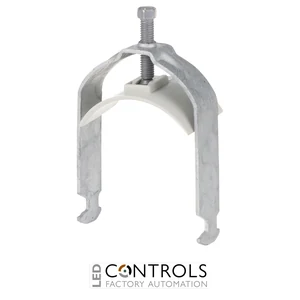

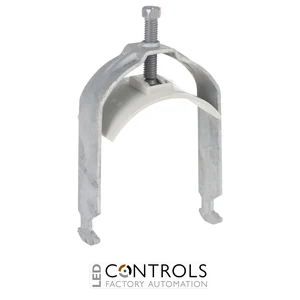

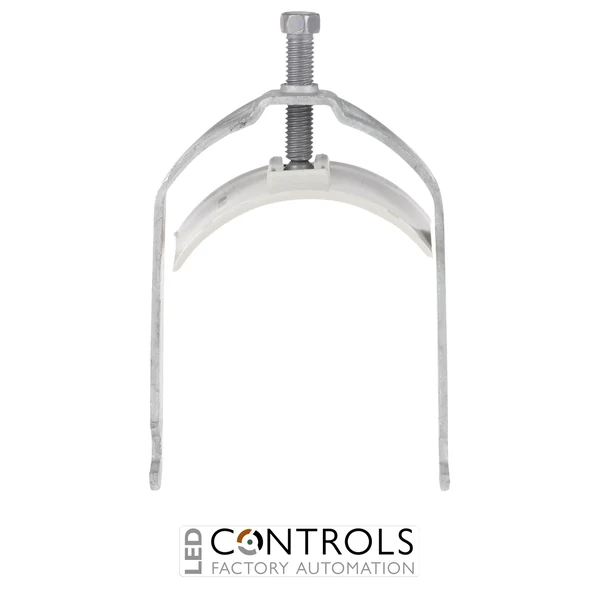

Why Choose the ABB ZK145 64–70mm Bolt Clamp?
The ABB ZK145 is a robust bolt clamp for 64–70 mm cables, designed to secure individual cables to compatible cable clamp rails in ABB low-voltage distribution assemblies. Supplied under ABB order code 2CPX060007R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides dependable mechanical cable retention for professional panel and cabinet installations.
Designed for a 64–70 mm clamping range, the ZK145 accommodates one cable and is intended for use with profile No. 10 cable clamp rails measuring 35 × 19 mm. Its bolt-clamp construction provides a straightforward method of securing larger incoming or outgoing cables and supporting effective strain relief within electrical distribution equipment.
The ZK145 uses stainless-steel clamp and screw components and has approximate overall dimensions of 80 mm wide × 45 mm high × 130 mm deep. Its dedicated 64–70 mm size makes it the largest of the related ZK143, ZK144 and ZK145 cable-clamp options for compatible ABB cable clamp rails.
Key Advantages
- Designed specifically for 64–70 mm cable diameters.
- Provides secure mechanical retention for one cable.
- Suitable for compatible ABB cable clamp rails.
- Designed for profile No. 10, 35 × 19 mm cable clamp rails.
- Stainless-steel clamp and screw construction provides robust mechanical support.
- Supports organised cable routing and strain relief in professional distribution assemblies.
Key Features
- ABB ZK145 bolt clamp.
- 64–70 mm clamping range.
- Designed to secure one cable.
- Suitable for cable clamp rail mounting.
- Compatible with profile No. 10, 35 × 19 mm rails.
- Stainless-steel clamp construction.
- Stainless-steel screw construction.
- Approximate dimensions of 80 × 45 × 130 mm.
Secure Cable Retention for Distribution Assemblies
Cable clamp rails and bolt clamps provide mechanical support for conductors entering or leaving electrical distribution equipment. Correctly securing larger cables helps control movement and provides strain relief so that mechanical forces are not transferred unnecessarily to terminals, devices or other internal electrical connections.
The ABB ZK145 is specifically sized for 64–70 mm cables and works with compatible profile No. 10 cable clamp rails. For installations requiring additional saddle components, the associated ABB ZK1451P50 saddle clamp is designed for use with the ZK145 bolt clamp.
Typical Applications
- Cable securing within ABB low-voltage distribution assemblies.
- Large incoming and outgoing cable retention.
- Cable strain relief on compatible clamp rails.
- Electrical distribution and switchboard cabinets.
- Commercial and industrial electrical installations.
- Professional panel building and system integration.
