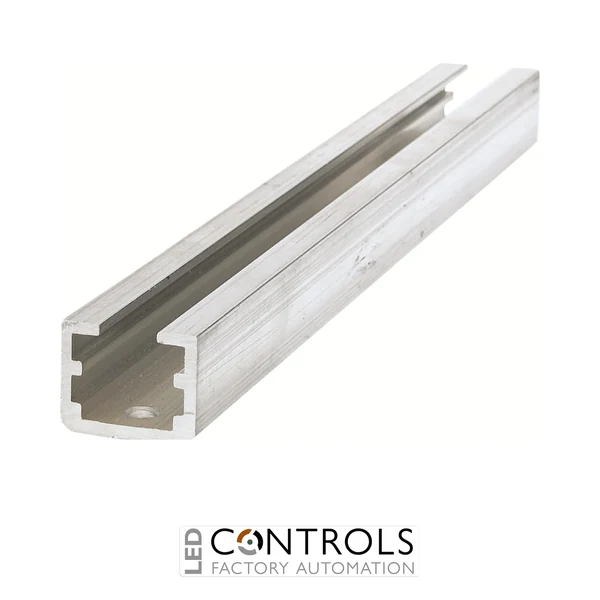

2CPX060145R9999 ABB ZW217 WR Horizontal Profile Rail 4PW

2CPX060145R9999 ABB ZW217 WR Horizontal Profile Rail 4PW

ABB ZW217 is a 994 mm aluminium profile No. 2 horizontal width rail for four-field-width EDF or WR mounting-frame assemblies within compatible CombiLine N electrical distribution systems.

SKU: 2CPX060145R9999Alt SKU: ZW217MPN: 2CPX060145R9999
Price
List Price £35.39 ex VAT
Your Price (ex VAT)
£35.39
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £35.39
Trade pricing is personalised to your account

Manufacturer Lead Time

£35.39

Why Choose the ABB ZW217 WR Horizontal Profile Rail?

The ABB ZW217 is an aluminium horizontal profile rail designed for compatible ABB EDF and WR mounting-frame assemblies. As part of ABB's CombiLine N interior expansion system, it provides a purpose-designed structural component for building organised electrical distribution-panel interiors.

Designed for a 4 PW field width, the ZW217 uses ABB profile No. 2 with a cross-section of 25 × 20 mm. Its specified rail length is 994 mm, providing the appropriate span for compatible four-field-width mounting-frame configurations.

The ZW217 is a Width Rail 1 configuration intended for assembly directly onto the mounting frame. Its aluminium construction and 6.2 mm mounting holes provide a coordinated mechanical interface for compatible ABB distribution-system components.

Key Advantages

  • Purpose-designed ABB horizontal profile rail for compatible distribution mounting frames.
  • 4 PW field width supports coordinated four-field panel configurations.
  • 994 mm rail length for compatible mounting-frame assemblies.
  • Aluminium profile No. 2 construction measuring 25 × 20 mm.
  • 6.2 mm mounting holes support secure mechanical assembly.
  • Genuine ABB component for professional CombiLine N sub-distribution systems.

Key Features

  • ABB ZW217 horizontal width profile rail.
  • Part of the ABB CombiLine N interior expansion system.
  • Suitable for compatible EDF or WR mounting frames.
  • Width Rail 1 configuration for assembly directly onto the mounting frame.
  • 4 PW / four-field-width format.
  • Profile No. 2.
  • Aluminium profile construction.
  • Profile dimensions of 25 × 20 mm.
  • Specified rail length of 994 mm.
  • Mounting-hole diameter of 6.2 mm.

Reliable Structural Support for Distribution Assemblies

Horizontal profile rails provide defined structural mounting points within modular electrical distribution systems. The ABB ZW217 combines a rigid aluminium profile with a four-field-width format, helping panel builders create an organised mechanical framework for compatible equipment and interior expansion components.

Its profile No. 2 geometry, 994 mm length and 6.2 mm mounting holes are designed specifically for coordinated ABB mounting-frame construction. Using the appropriate system profile helps maintain the intended mechanical arrangement when assembling, extending or modifying compatible CombiLine N distribution systems.

Typical Applications

  • ABB CombiLine N interior expansion systems.
  • Compatible ABB EDF mounting frames.
  • Compatible ABB WR mounting frames.
  • Four-field-width electrical distribution assemblies.
  • Commercial and industrial sub-distribution systems.
  • Electrical panel building and internal framework construction.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
System CombiLine N interior expansion system
ABB order code 2CPX060145R9999
Product type Horizontal profile / width rail
Rail configuration Width Rail 1
Profile Profile No. 2
Field width 4 PW
Material Aluminium
Profile dimensions 25 × 20 mm
Rail length 994 mm
Nominal external width 995 mm
Nominal external height 25 mm
Nominal external depth 20 mm
Mounting-hole diameter 6.2 mm
Installation Assembly directly onto compatible mounting frame
Compatible mounting-frame types EDF / WR
Packaging quantity 1 piece
EAN 4011617601456
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB ZW217 used for?

The ABB ZW217 is an aluminium horizontal width profile rail designed for assembly directly onto compatible ABB EDF or WR mounting frames within CombiLine N electrical distribution systems.

What field width is the ABB ZW217 designed for?

The ZW217 is designed for a 4 PW / four-field-width mounting-frame configuration.

What are the profile dimensions of the ABB ZW217?

The ZW217 uses ABB profile No. 2 with a cross-section of 25 × 20 mm and 6.2 mm mounting holes.

How long is the ABB ZW217 profile rail?

The ZW217 has a specified rail length of 994 mm, with a nominal external width of approximately 995 mm.

What is the ABB order code for the ZW217?

The ABB order code for the ZW217 horizontal profile rail is 2CPX060145R9999.

Trusted ABB Distribution System Components

ABB CombiLine N profile rails provide panel builders and electrical installers with coordinated structural components for organised, dependable and professional electrical sub-distribution assemblies.
