Why Choose the ABB ZW248 WR Horizontal Profile Rail 1PW?

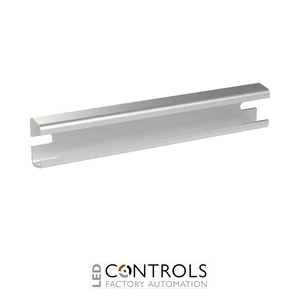

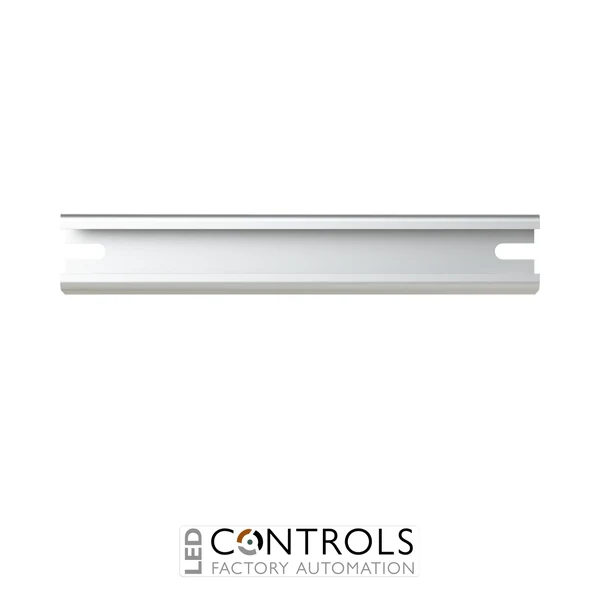

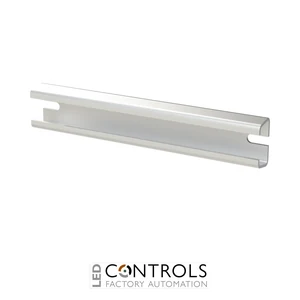

The ABB ZW248 is a 1-panel-width horizontal cable clamp profile rail designed for installation between compatible ABB mounting frames. Supplied under ABB order code 2CPX060199R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a robust mounting point for cable-retention components within professional low-voltage distribution assemblies.
The ZW248 uses profile No. 10, with a nominal profile size of 35 × 19 mm and a 6.2 mm mounting hole. Its 1 PW field width corresponds to a rail length of 186 mm, making it suitable for horizontal installation between mounting-frame sections where a compact cable-support rail is required.
Manufactured from galvanised sheet steel, the ZW248 provides a durable foundation for compatible ABB bolt clamps and saddle clamps. Its coordinated profile allows cables to be mechanically retained and organised within ABB distribution assemblies, helping support structured routing and effective strain relief.
Key Advantages
- 1 PW horizontal profile rail for compatible ABB mounting-frame systems.
- Designed specifically for installation between mounting frames.
- Profile No. 10 supports compatible ABB cable fastening clamps.
- Robust galvanised sheet-steel construction.
- Compact 186 mm rail length for one-panel-width installations.
- Provides a structured mounting point for cable retention and strain-relief components.
Key Features
- ABB ZW248 horizontal profile rail.
- 1 PW / one-panel-width configuration.
- Profile No. 10 cable clamp rail.
- 35 × 19 mm profile.
- 186 mm length.
- 6.2 mm mounting hole.
- Galvanised sheet-steel construction.
- Designed for mounting between compatible mounting frames.
- Suitable for compatible ABB bolt and saddle cable clamps.
Horizontal Cable Support for ABB Mounting Frames
Cable clamp rails provide a dedicated mechanical mounting point for securing incoming and outgoing conductors inside electrical distribution assemblies. The ABB ZW248 uses the established profile No. 10 format and is intended for horizontal installation between mounting frames, creating a stable rail onto which compatible cable-retention hardware can be fitted.
With its 35 × 19 mm galvanised steel profile and 186 mm one-panel-width length, the ZW248 can be combined with suitable ABB bolt clamps and saddle clamps to organise and secure cables. This arrangement helps provide strain relief and reduces the transfer of mechanical cable loads to terminals and other electrical connections.
Typical Applications
- ABB WR mounting-frame assemblies.
- Low-voltage distribution cabinets and panels.
- Horizontal cable retention within electrical enclosures.
- Mounting compatible profile No. 10 cable clamps.
- Incoming and outgoing cable strain relief.
- Commercial and industrial distribution systems.
- Professional electrical panel building and system integration.
