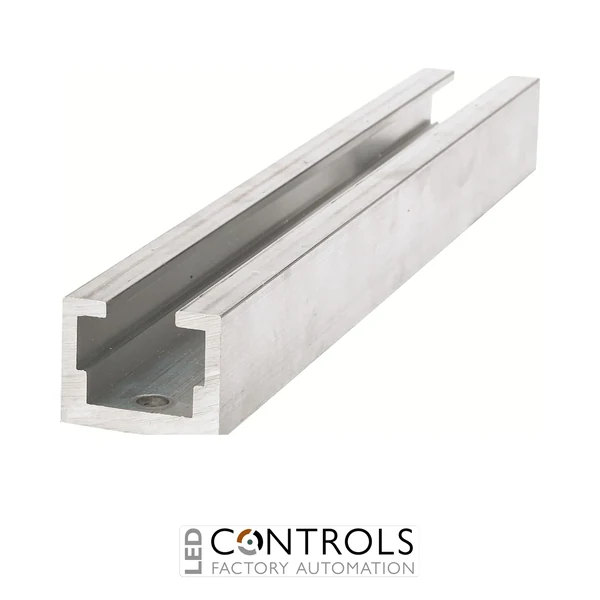

2CPX060334R9999 ABB ZW234 WR Horizontal Profile Rail 2PW

2CPX060334R9999 ABB ZW234 WR Horizontal Profile Rail 2PW

ABB ZW234 is a 436 mm aluminium horizontal profile No. 3 rail for two-field CombiLine N EDF and WR mounting frames, designed for installation between compatible mounting-frame uprights.

SKU: 2CPX060334R9999Alt SKU: ZW234MPN: 2CPX060334R9999
Price
List Price £28.66 ex VAT
Your Price (ex VAT)
£28.66
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £28.66
Trade pricing is personalised to your account

Manufacturer Lead Time

£28.66

Why Choose the ABB ZW234 WR Horizontal Profile Rail?

The ABB ZW234 is a purpose-designed horizontal width profile rail for compatible ABB EDF and WR mounting frames. As part of the ABB CombiLine N interior expansion system, it provides a structural cross member for constructing organised low-voltage distribution assemblies.

Designed for a 2-panel-width (2PW) configuration, the ZW234 has a 436 mm rail length and is intended for installation between the mounting-frame uprights. It uses ABB profile No. 3, with a profile cross-section of 32 × 25 mm and an 8.2 mm mounting hole.

Manufactured from aluminium, the ZW234 provides a lightweight yet robust structural component for ABB mounting-frame systems. Its system-specific dimensions and screw-fixed installation make it suitable for panel builders and electrical contractors configuring compatible CombiLine N distribution cabinets.

Key Advantages

  • Purpose-designed horizontal profile rail for ABB EDF and WR mounting frames.
  • Designed for 2-panel-width (2PW) mounting-frame configurations.
  • 436 mm rail length for installation between compatible mounting-frame uprights.
  • Robust and lightweight aluminium construction.
  • ABB profile No. 3 with a 32 × 25 mm cross-section.
  • Integrates with the modular ABB CombiLine N interior expansion system.

Key Features

  • ABB CombiLine N mounting-frame component.
  • Horizontal width profile rail.
  • Designed for installation between compatible EDF or WR mounting frames.
  • 2PW / 2-field-width configuration.
  • 436 mm rail length.
  • Profile No. 3: 32 × 25 mm.
  • 8.2 mm mounting hole.
  • Aluminium construction.
  • Screw-fixed mounting arrangement.
  • ABB order code 2CPX060334R9999.

Structured Support for ABB EDF and WR Mounting Frames

Mounting frames provide the internal structural framework required to position compatible equipment and system components within low-voltage distribution assemblies. Horizontal profile rails such as the ABB ZW234 connect between mounting-frame uprights and help establish a stable structure for the associated CombiLine N interior expansion system.

The ZW234 combines a 436 mm rail length with ABB's 32 × 25 mm profile No. 3 geometry. Its two-field configuration and aluminium construction make it a practical system component for creating structured commercial and industrial electrical distribution panels.

Typical Applications

  • ABB WR mounting-frame assemblies.
  • ABB EDF mounting-frame assemblies.
  • ABB CombiLine N interior expansion systems.
  • Two-field distribution-panel frameworks.
  • Low-voltage sub-distribution assemblies.
  • Commercial and industrial electrical cabinet construction.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
Series CombiLine N
Product group DESUJ Sub Distribution
Product type Horizontal width profile rail
Profile type Profile No. 3
Application Mounting between EDF or WR mounting-frame uprights
Panel width 2PW / 2 fields
Rail length 436 mm
Profile dimensions 32 × 25 mm
Mounting-hole diameter 8.2 mm
Nominal external width 446 mm
Nominal external height 32 mm
Nominal external depth 25 mm
Material Aluminium
Mounting method Screw fixing
Quantity 1 piece
ABB order code 2CPX060334R9999
GTIN/EAN 4011617603344

Frequently Asked Questions

What is the ABB ZW234 used for?

The ABB ZW234 is a horizontal profile rail designed for installation between compatible ABB EDF or WR mounting-frame uprights in CombiLine N distribution assemblies.

What panel width is the ABB ZW234 designed for?

The ZW234 is designed for a 2PW / two-field configuration and has a rail length of 436 mm.

What profile dimensions does the ABB ZW234 use?

The ZW234 uses ABB profile No. 3, measuring 32 × 25 mm with an 8.2 mm mounting hole.

What material is the ABB ZW234 made from?

The ZW234 is manufactured from aluminium and is designed for screw-fixed installation within the compatible mounting-frame system.

What is the ABB order code for the ZW234?

The ABB order code for the ZW234 horizontal profile rail is 2CPX060334R9999.

Trusted by Electrical System Builders Worldwide

ABB CombiLine N mounting components provide panel builders, electrical contractors and system integrators with purpose-designed structural parts for creating organised, robust and modular low-voltage distribution assemblies.
