Why Choose the ABB ED33P100 Deep Mounting Bracket Pack?

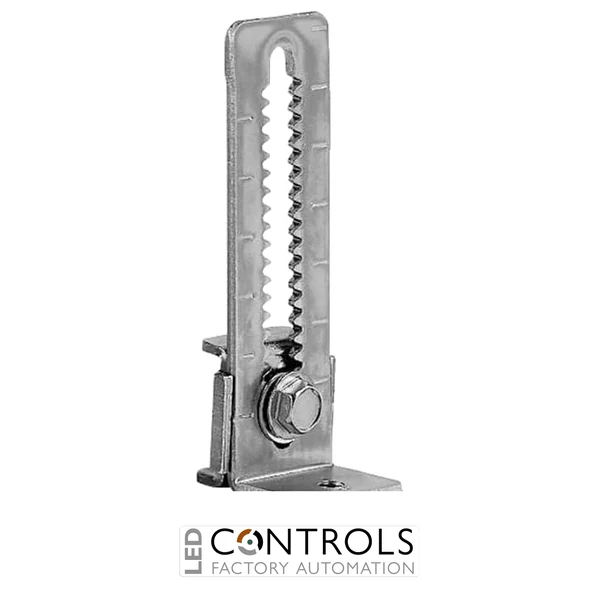

The ABB ED33P100 is a professional deep mounting bracket pack designed for ABB EDF-profile interior expansion systems. Part of ABB’s DESUJ Sub Distribution range, these brackets provide adjustable mounting support for DIN rails, mounting plates and mounting cross-members within compatible electrical distribution assemblies.
The ED33P100 deep mounting brackets are continuously adjustable in depth, providing flexibility when positioning internal equipment within a distribution-board assembly. ABB specifies an adjustment range of 62 mm and a distance between the deep mounting bracket and cover of 77–139 mm when used in the specified system configuration.
Supplied in a bulk pack of 100 pieces, the ED33P100 is particularly suitable for panel builders, production environments and larger installation projects requiring multiple identical mounting components. Each bracket has nominal external dimensions of approximately 80 × 31 × 23 mm, and ABB identifies the product under order code 2CPX062307R9999.
Key Advantages
- Genuine ABB deep mounting brackets for compatible EDF-profile systems.
- 100-piece pack suitable for panel production and larger installation projects.
- Continuously adjustable depth supports flexible internal equipment positioning.
- 62 mm adjustment range for adaptable assembly configurations.
- Suitable for mounting DIN rails, mounting plates and mounting cross-members.
- Designed for integration with ABB EDF-profile interior expansion systems.
Key Features
- ABB DESUJ Sub Distribution accessory.
- Deep mounting bracket design.
- Supplied as 100 pieces.
- 62 mm depth adjustment range.
- 77–139 mm distance between bracket and cover in the specified system arrangement.
- Designed for EDF profiles.
- Suitable for distribution panels with mounting plates.
- Nominal bracket dimensions of approximately 80 × 31 × 23 mm.
- ABB order code 2CPX062307R9999.
Flexible Mounting for Distribution Assemblies
Adjustable deep mounting brackets allow electrical components and mounting structures to be positioned at the appropriate depth inside a distribution assembly. This flexibility is particularly useful when coordinating DIN rails, mounting plates, cross-members and covers while maintaining an organised and serviceable internal arrangement.
The ABB ED33P100 is designed for compatible EDF-profile systems and provides continuously adjustable positioning rather than restricting installers to a single fixed mounting depth. The bulk 100-piece format also makes the product well suited to repetitive panel construction and larger electrical installation programmes.
Typical Applications
- Low-voltage distribution-board construction.
- ABB EDF-profile interior expansion systems.
- Mounting of DIN rails within distribution assemblies.
- Mounting-plate and cross-member installation.
- Electrical panel production and repetitive assembly work.
- Distribution-board expansion, modification and maintenance.
