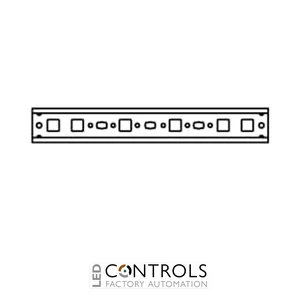

2CPX062319R9999 ABB ED1P30 DIN Rail 1PW 35 × 15 mm 244 mm Pack of 30
ABB ED1P30 is a 244 mm single-panel-width DIN mounting rail with a 35 × 15 mm Sendzimir-galvanised steel profile, designed for ABB EDF and WR mounting frames and supplied in a pack of 30 pieces.
Why Choose the ABB ED1P30 DIN Rail 1PW 30-Piece Pack?
The ABB ED1P30 is a durable 35 × 15 mm DIN mounting rail designed for secure installation of electrical components within low-voltage distribution boards and electrical enclosures. Part of the ABB STRIEBEL & JOHN EDF distribution system accessories range, this single-panel-width mounting rail provides a practical and reliable solution for electrical panel builders, installers and switchgear manufacturers.
Manufactured from robust steel with a Sendzimir-galvanised surface finish, the ED1P30 offers mechanical strength and corrosion resistance for long-term use in electrical distribution assemblies. Its pre-punched mounting pattern supports installation on compatible EDF and WR mounting frames and accommodates ABB ED44 and ED45 wire holders for organised internal cable routing.
Each rail measures 244 mm in length and features a standard 35 × 15 mm top-hat DIN profile. Supplied in a convenient pack of 30 pieces, the ABB ED1P30 is particularly suitable for repetitive panel assembly, electrical distribution board production and commercial electrical installation projects.
Key Advantages
Reliable DIN mounting rail for electrical distribution systems.
35 × 15 mm top-hat profile suitable for compatible DIN rail-mounted electrical equipment.
244 mm rail length designed for single-panel-width installations.
Pack of 30 rails supports efficient batch assembly and installation.
Sendzimir-galvanised steel construction provides durability and corrosion resistance.
Designed for installation on ABB EDF and WR mounting frames.
Special mounting hole pattern accommodates ABB ED44 and ED45 wire holders.
Supports neat, organised and serviceable electrical panel layouts.
Key Features
ABB ED1P30 DIN mounting rail for low-voltage distribution assemblies.
Single-panel-width (1PW) mounting configuration.
244 mm overall rail length.
35 mm profile width and 15 mm profile depth.
1.5 mm steel material thickness.
Sendzimir-galvanised surface treatment.
Pre-punched mounting holes for compatible distribution system frames.
Special hole pattern for ABB ED44/ED45 wire holders.
Compatible with designated ABB EDF and WR mounting frame assemblies.
30 pieces per pack for panel-building and installation requirements.
Reliable DIN Rail Mounting for Electrical Distribution Boards
DIN mounting rails provide a standardised mechanical support system for installing modular electrical equipment within distribution boards, control panels and electrical enclosures. The ABB ED1P30 uses a 35 × 15 mm top-hat profile to support compatible DIN rail-mounted devices, helping installers achieve consistent component positioning and organised internal layouts.
The ED1P30 is specifically designed for use with ABB EDF and WR mounting frames. Its single-panel-width format and pre-punched mounting arrangement simplify integration into compatible distribution assemblies, while the dedicated hole pattern allows ABB ED44 and ED45 wire holders to be incorporated where required. The galvanised steel construction makes the rail suitable for dependable mechanical support in professionally assembled electrical installations.
Typical Applications
Low-voltage electrical distribution boards and sub-distribution assemblies.
ABB EDF and WR mounting frame installations.
Commercial and industrial electrical panel construction.
Mounting compatible DIN rail circuit protection and control devices.
Electrical enclosure assembly and refurbishment projects.
Modular electrical equipment mounting and internal panel organisation.
Switchgear manufacturing and electrical panel-building workshops.
Batch production of electrical distribution assemblies requiring standardised DIN rails.
Technical Specifications
Tick the specs you need, then view products that match.
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Product range
ABB STRIEBEL & JOHN Distribution System Accessories
Product group
DESUJ Sub Distribution
ABB order code
2CPX062319R9999
Product type
DIN mounting rail
DIN rail profile
Top-hat, 35 × 15 mm
Panel width
1PW (single-panel width)
Rail length
244 mm
Profile width
35 mm
Profile depth
15 mm
Material
Steel
Material thickness
1.5 mm
Surface finish
Sendzimir galvanised
Mounting hole shape
Square
Mounting hole centre spacing
230 mm
Mounting arrangement
Assembly onto compatible mounting frames
Compatible mounting systems
ABB EDF and WR
Compatible wire holders
ABB ED44 and ED45
Quantity per pack
30 pieces
Dimensions (L × W × D)
244 × 35 × 15 mm per rail
Country of origin
Germany
EAN
4011617623199
Frequently Asked Questions
What is the ABB ED1P30 used for?
The ABB ED1P30 is a DIN mounting rail used to support compatible electrical components within distribution boards and enclosures, particularly those incorporating ABB EDF or WR mounting frames.
What are the dimensions of the ABB ED1P30 DIN rail?
Each rail measures 244 mm long and has a 35 × 15 mm top-hat profile, with a steel material thickness of 1.5 mm.
How many DIN rails are supplied in one pack?
The ABB ED1P30 is supplied as a pack of 30 individual DIN rails, making it suitable for electrical panel production and multiple installation projects.
Which ABB mounting systems are compatible with the ED1P30?
The ED1P30 is designed for ABB EDF and WR mounting frames and includes a special mounting hole pattern for use with ABB ED44 and ED45 wire holders.
What material is the ABB ED1P30 manufactured from?
The rail is manufactured from 1.5 mm thick steel with a Sendzimir-galvanised finish to provide mechanical strength and corrosion resistance in electrical distribution installations.
Trusted by Electrical Panel Builders and Installers
ABB STRIEBEL & JOHN distribution system accessories are designed to support reliable electrical panel assembly and organised low-voltage distribution installations. The ED1P30 combines a standard DIN rail profile, durable galvanised steel construction and compatibility with ABB mounting frame systems, making it a practical choice for professional panel builders and electrical installers.
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Product range
ABB STRIEBEL & JOHN Distribution System Accessories
Product group
DESUJ Sub Distribution
ABB order code
2CPX062319R9999
Product type
DIN mounting rail
DIN rail profile
Top-hat, 35 × 15 mm
Panel width
1PW (single-panel width)
Rail length
244 mm
Profile width
35 mm
Profile depth
15 mm
Material
Steel
Material thickness
1.5 mm
Surface finish
Sendzimir galvanised
Mounting hole shape
Square
Mounting hole centre spacing
230 mm
Mounting arrangement
Assembly onto compatible mounting frames
Compatible mounting systems
ABB EDF and WR
Compatible wire holders
ABB ED44 and ED45
Quantity per pack
30 pieces
Dimensions (L × W × D)
244 × 35 × 15 mm per rail
Country of origin
Germany
EAN
4011617623199
