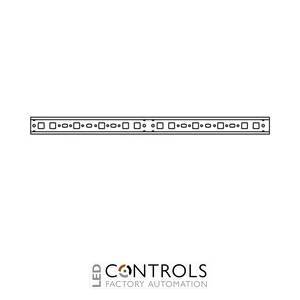

2CPX062320R9999 ABB ED2P30 DIN Rail 2PW 35 × 15 mm 494 mm Pack of 30
ABB ED2P30 is a 494 mm two-panel-width DIN mounting rail with a 35 × 15 mm galvanised steel profile, designed for ABB EDF and WR mounting frames and supplied in a pack of 30 pieces.
Why Choose the ABB ED2P30 DIN Rail 2PW 30-Piece Pack?
The ABB ED2P30 is a robust and reliable 35 × 15 mm DIN mounting rail designed for secure installation of electrical components within low-voltage distribution boards, switchgear assemblies and electrical enclosures. As part of the ABB STRIEBEL & JOHN distribution system accessories range, this two-panel-width mounting rail provides a practical solution for electrical panel builders, installers and switchgear manufacturers requiring consistent component mounting.
The ED2P30 features a durable galvanised steel construction with a standard top-hat DIN rail profile, providing mechanical strength and corrosion resistance for long-term use in electrical distribution installations. Designed for assembly onto compatible ABB EDF and WR mounting frames, the rail incorporates a dedicated mounting hole pattern for ABB ED44 and ED45 wire holders, helping installers maintain organised internal wiring and equipment layouts.
With an overall length of 494 mm, a 35 × 15 mm profile and a two-panel-width (2PW) configuration, the ABB ED2P30 is suitable for distribution assemblies requiring extended mounting space. Supplied in a convenient pack of 30 pieces, it supports efficient electrical panel production, repetitive installation work and professional switchgear assembly.
Key Advantages
Reliable DIN mounting rail for electrical distribution boards and enclosures.
494 mm rail length suitable for compatible two-field distribution assemblies.
35 × 15 mm top-hat DIN profile supports compatible modular electrical equipment.
Galvanised steel construction provides mechanical strength and corrosion resistance.
1.5 mm material thickness delivers a robust mounting structure.
Designed for installation onto ABB EDF and WR mounting frames.
Special mounting hole pattern supports ABB ED44 and ED45 wire holders.
Pack of 30 rails supports efficient batch installation and panel assembly.
Helps achieve organised, accessible and professional electrical panel layouts.
Key Features
ABB ED2P30 DIN mounting rail for low-voltage distribution systems.
Two-panel-width (2PW) mounting configuration.
494 mm overall rail length.
35 mm profile width and 15 mm profile height.
1.5 mm thick steel construction.
Galvanised surface protection for corrosion resistance.
Square mounting holes for compatible mounting arrangements.
480 mm mounting hole centre spacing.
Designed for assembly directly onto compatible mounting frames.
Compatible with ABB EDF and WR mounting systems.
Dedicated hole pattern for ABB ED44/ED45 wire holders.
30 individual DIN rails per pack.
Reliable DIN Rail Mounting for Electrical Distribution Systems
DIN mounting rails provide a standardised mechanical support system for installing modular electrical devices within distribution boards, control panels and switchgear enclosures. The ABB ED2P30 uses a conventional 35 × 15 mm top-hat profile to support compatible DIN rail-mounted equipment, allowing electrical installers to arrange components consistently while maintaining accessible and organised panel layouts.
The ED2P30 is specifically designed for use with ABB EDF and WR mounting frames. Its two-panel-width design provides a longer mounting section than single-panel-width alternatives, making it suitable for distribution assemblies requiring additional component mounting space. The dedicated hole pattern accommodates ABB ED44 and ED45 wire holders, while the galvanised steel construction supports dependable mechanical installation in professional electrical distribution applications.
Typical Applications
Low-voltage electrical distribution boards and sub-distribution systems.
ABB EDF and WR mounting frame assemblies.
Two-panel-width electrical distribution installations.
Commercial and industrial electrical panel construction.
Mounting compatible DIN rail circuit protection and control devices.
Electrical enclosure assembly and refurbishment projects.
Modular switchgear and electrical equipment mounting.
Internal panel organisation and cable management arrangements.
Electrical panel-building workshops and switchgear manufacturing.
Batch production of electrical distribution assemblies requiring standardised DIN rails.
Technical Specifications
Tick the specs you need, then view products that match.
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Product range
ABB STRIEBEL & JOHN Distribution System Accessories
Product group
DESUJ Sub Distribution
ABB order code
2CPX062320R9999
Product type
DIN mounting rail
DIN rail profile
Top-hat, 35 × 15 mm
Panel width
2PW (two-panel width)
Rail length
494 mm
Profile width
35 mm
Profile height
15 mm
Material
Steel
Material thickness
1.5 mm
Surface protection
Galvanised
Mounting hole shape
Square
Mounting hole centre spacing
480 mm
Mounting arrangement
Assembly onto compatible mounting frames
Compatible mounting systems
ABB EDF and WR
Compatible wire holders
ABB ED44 and ED45
Quantity per pack
30 pieces
Dimensions (L × W × H)
494 × 35 × 15 mm per rail
EAN
4011617623205
Frequently Asked Questions
What is the ABB ED2P30 used for?
The ABB ED2P30 is a DIN mounting rail designed to support compatible electrical components within distribution boards and enclosures, particularly those using ABB EDF and WR mounting frames.
What are the dimensions of the ABB ED2P30 DIN rail?
Each ED2P30 rail measures 494 mm in length and features a 35 × 15 mm top-hat profile manufactured from 1.5 mm thick steel.
How many DIN rails are supplied in one pack?
The ABB ED2P30 is supplied in a pack of 30 individual DIN rails, making it suitable for electrical panel production, installation projects and switchgear assembly.
Which ABB mounting systems are compatible with the ED2P30?
The ED2P30 is designed for ABB EDF and WR mounting frames and includes a special mounting hole pattern compatible with ABB ED44 and ED45 wire holders.
What is the difference between the ABB ED1P30 and ED2P30?
The ABB ED1P30 is a single-panel-width DIN rail measuring 244 mm in length, while the ABB ED2P30 is a two-panel-width version measuring 494 mm. Both use a 35 × 15 mm DIN rail profile and are supplied in packs of 30 pieces.
Trusted by Electrical Panel Builders and Installers
ABB STRIEBEL & JOHN distribution system accessories are designed to support reliable electrical panel assembly and organised low-voltage distribution installations. The ED2P30 combines a standard DIN rail profile, robust galvanised steel construction and compatibility with ABB mounting frame systems, making it a practical choice for professional electrical installers, switchgear manufacturers and panel builders.
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Product range
ABB STRIEBEL & JOHN Distribution System Accessories
Product group
DESUJ Sub Distribution
ABB order code
2CPX062320R9999
Product type
DIN mounting rail
DIN rail profile
Top-hat, 35 × 15 mm
Panel width
2PW (two-panel width)
Rail length
494 mm
Profile width
35 mm
Profile height
15 mm
Material
Steel
Material thickness
1.5 mm
Surface protection
Galvanised
Mounting hole shape
Square
Mounting hole centre spacing
480 mm
Mounting arrangement
Assembly onto compatible mounting frames
Compatible mounting systems
ABB EDF and WR
Compatible wire holders
ABB ED44 and ED45
Quantity per pack
30 pieces
Dimensions (L × W × H)
494 × 35 × 15 mm per rail
EAN
4011617623205
