Why Choose the ABB ZA6P10 A4 Circuit Diagram Pocket?

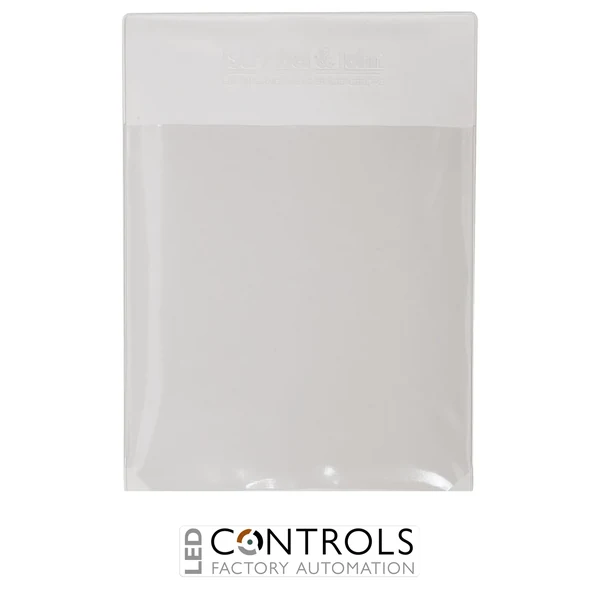

The ABB ZA6P10 is a practical and reliable A4 circuit diagram pocket designed for storing electrical drawings, wiring diagrams and technical documentation inside electrical distribution boards and control cabinets. Identified by ABB order code 2CPX062380R9999, this accessory belongs to the ABB DESUJ Sub Distribution product group and provides an organised solution for keeping essential electrical documentation readily accessible.
Designed for professional electrical installations, the ZA6P10 features a transparent document sleeve with self-adhesive mounting, allowing electrical schematics and maintenance information to be stored securely inside suitable enclosures. Its slim profile helps minimise the space required for documentation storage, while the transparent construction makes it easy to identify the contents without removing the documents.
Supplied as a pack of 10 circuit diagram pockets, the ABB ZA6P10 accommodates standard DIN A4 documents measuring 210 × 297 mm. Each pocket features a nominal depth of 3 mm and is manufactured from plastic, making it a convenient accessory for electrical contractors, panel builders and maintenance engineers working with industrial and commercial distribution equipment.
Key Advantages
- Purpose-designed A4 circuit diagram pocket for electrical distribution boards and control cabinets.
- Pack of 10 document holders suitable for multiple enclosure installations.
- Self-adhesive mounting simplifies installation without requiring additional fixing hardware.
- Transparent sleeve allows convenient identification of stored electrical documentation.
- DIN A4 format accommodates standard wiring diagrams, circuit schedules and technical drawings.
- Slim 3 mm profile helps conserve valuable space inside electrical enclosures.
- Durable plastic construction suitable for electrical cabinet documentation storage.
- Helps maintain organised technical records for inspection, servicing and maintenance.
Key Features
- ABB ZA6P10 circuit diagram pocket for electrical enclosure documentation.
- ABB order code 2CPX062380R9999.
- DESUJ Sub Distribution product group.
- 10 circuit diagram pockets per pack.
- DIN A4 document compatibility.
- Transparent document sleeve for convenient document visibility.
- Self-adhesive fixing for mounting onto suitable cabinet surfaces.
- Plastic construction with RAL 7035 light grey identification.
- 297 mm height and 210 mm width.
- 3 mm nominal depth for a compact installation profile.
- Designed for storing circuit diagrams, wiring schedules and electrical maintenance documents.
- Suitable for use in electrical distribution and enclosure systems.
Reliable Documentation Storage for Electrical Distribution Systems
Maintaining accessible electrical documentation is an important part of professional distribution board installation and maintenance. Circuit diagrams, wiring schematics and equipment schedules help engineers identify electrical connections, understand system configurations and carry out servicing efficiently. The ABB ZA6P10 A4 circuit diagram pocket provides a dedicated storage location for these documents within the electrical enclosure.
The self-adhesive design allows the document holder to be fitted to a suitable clean, flat surface, such as the inside of a cabinet door or enclosure panel. Its transparent sleeve supports convenient visual identification of stored drawings, while the A4 format accommodates commonly used electrical installation documents.
As part of ABB's range of electrical enclosure and sub-distribution accessories, the ZA6P10 is a useful addition to new panel-building projects, electrical installation upgrades and maintenance programmes. The 10-piece pack is particularly convenient for contractors and panel manufacturers preparing multiple electrical cabinets that require consistent documentation storage.
