Why Choose the ABB ZA13P10 A4 Circuit Diagram Pocket?
The ABB ZA13P10 is a durable and practical A4 circuit diagram pocket designed for storing electrical wiring diagrams, circuit schematics and technical documentation inside electrical distribution boards and control cabinets. Identified by ABB order code 2CPX062381R9999, this accessory belongs to the ABB DESUJ Sub Distribution product group and provides a convenient solution for keeping essential electrical documentation organised and accessible.

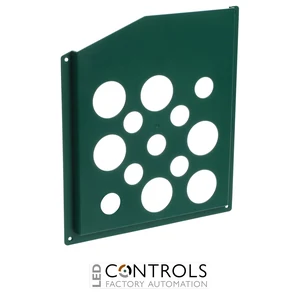

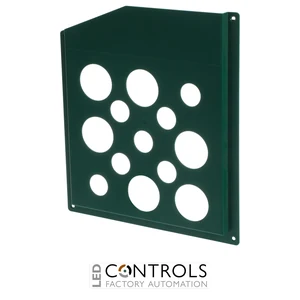

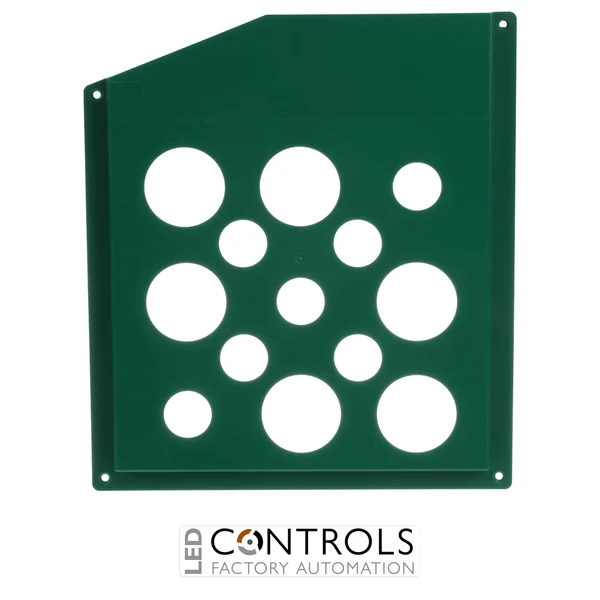

Manufactured from moss green plastic (RAL 6005), the ZA13P10 features a self-adhesive mounting system that allows straightforward installation onto suitable enclosure surfaces without drilling or additional fixing hardware. Unlike transparent document sleeves, this model uses a non-transparent document pocket to hold electrical drawings and technical records securely within the cabinet.
Supplied as a pack of 10 circuit diagram pockets, the ABB ZA13P10 accommodates standard DIN A4 documentation and has nominal dimensions of 297 × 210 × 3 mm. Its compact design makes it suitable for professional electrical installations where organised document storage is essential for inspection, maintenance and servicing.
Key Advantages
- Purpose-designed A4 circuit diagram pocket for electrical distribution boards and control cabinets.
- Pack of 10 document holders suitable for multiple electrical enclosure installations.
- Self-adhesive mounting enables convenient installation without drilling.
- Durable plastic construction provides a practical solution for storing electrical documentation.
- RAL 6005 moss green finish for easy identification inside electrical cabinets.
- DIN A4 document compatibility for standard wiring diagrams, circuit schedules and technical drawings.
- Compact 3 mm nominal depth helps minimise space requirements inside electrical enclosures.
- Helps keep essential circuit information readily available for maintenance engineers and electrical contractors.
- Suitable for use with compatible ABB electrical enclosure and sub-distribution systems.
- Supports professional documentation management in industrial and commercial electrical installations.
Key Features
- ABB ZA13P10 A4 circuit diagram pocket.
- ABB order code 2CPX062381R9999.
- DESUJ Sub Distribution product group.
- 10 circuit diagram pockets per pack.
- DIN A4 document format for electrical drawings and technical documentation.
- Self-adhesive fixing system for convenient cabinet installation.
- Plastic construction designed for electrical enclosure documentation storage.
- RAL 6005 moss green colour.
- Non-transparent pocket design for holding electrical documents.
- 297 mm height and 210 mm width.
- 3 mm nominal depth for a compact profile.
- Suitable for enclosure building widths of 220 mm according to the product classification.
- Compatible with the separately available ABB ZA123 document pocket support for mounting to suitable door reinforcement elements.
- Suitable for storing wiring diagrams, electrical circuit schedules and maintenance records.
Reliable Documentation Storage for Electrical Distribution Systems
Electrical distribution boards and control cabinets require accurate technical documentation to support installation, inspection, fault finding and maintenance. Circuit diagrams and wiring schedules help engineers identify electrical connections, understand system layouts and perform servicing tasks efficiently. The ABB ZA13P10 A4 circuit diagram pocket provides a dedicated storage location for these important documents within the electrical enclosure.
The self-adhesive mounting design allows the ZA13P10 to be installed on a suitable clean, flat cabinet surface, including appropriate internal door panels. Its plastic construction and non-transparent design provide a practical holder for A4 electrical documentation. For installations requiring mechanical attachment to cabinet door reinforcement elements, the separately available ABB ZA123 support accessory provides an alternative mounting arrangement.
As part of ABB's electrical enclosure and sub-distribution accessory range, the ZA13P10 is suitable for electrical contractors, switchboard manufacturers and maintenance teams. The 10-piece pack is particularly useful for projects involving multiple distribution boards or control cabinets, helping standardise documentation storage across electrical installations.
