Why Choose the ABB ZK90P2 Insulator Piece for DIN Rail?
The ABB ZK90P2, order code 2CPX062426R9999, is an insulator piece for DIN rails designed for use within compatible ABB low-voltage distribution assemblies. As part of ABB's DESUJ Sub Distribution product group, it provides an insulating mounting interface for supported DIN rail configurations in professional distribution-board installations.
The ZK90P2 is designed for mounting on the compatible ABB ZX372P2 mounting bracket. It can be used with the ABB ZX371 35 × 7.5 mm top-hat rail and ABB ZX21 35 × 15 mm top-hat rail, providing a dedicated solution for electrically insulating and mechanically supporting these DIN rail arrangements.

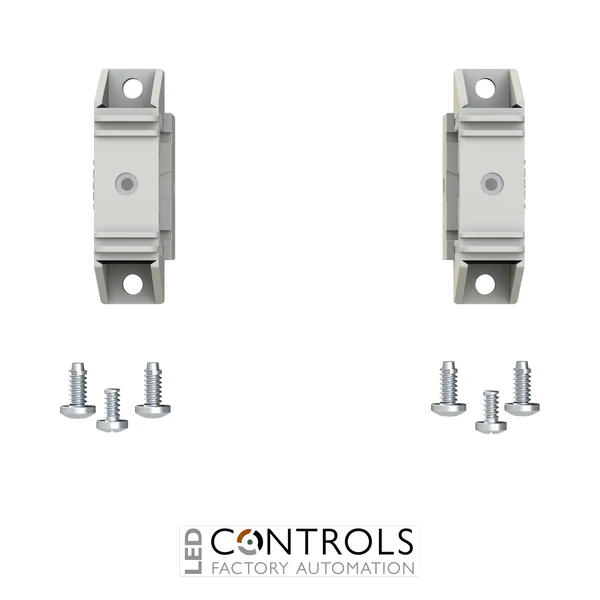

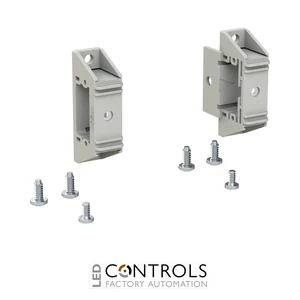

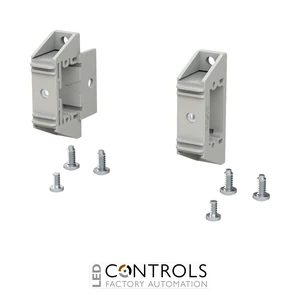

Supplied complete with the required fastening material, the ZK90P2 supports efficient installation without requiring the mounting hardware to be sourced separately. Each pack contains 2 insulator pieces, making it a convenient accessory for compatible ABB distribution-board and interior fitting applications.
Key Advantages
- Purpose-designed DIN rail insulator for compatible ABB distribution systems.
- Suitable for 35 × 7.5 mm and 35 × 15 mm top-hat DIN rails.
- Designed for mounting on the compatible ABB ZX372P2 mounting bracket.
- Compatible with ABB ZX371 and ZX21 DIN rail configurations.
- Provides an insulating interface within supported DIN rail mounting arrangements.
- Fastening material included for convenient installation.
- Supplied as a practical 2-piece pack.
Key Features
- ABB ZK90P2 DIN rail insulator piece.
- ABB order code 2CPX062426R9999.
- Designed for compatible top-hat DIN rails.
- Supports 35 × 7.5 mm DIN rail profiles.
- Supports 35 × 15 mm DIN rail profiles.
- Designed for use with the ABB ZX372P2 mounting bracket.
- Compatible with ABB ZX371 and ZX21 rails.
- Fastening material supplied with the insulator pieces.
- Interior fitting system component.
- 2 insulator pieces per pack.
Practical Insulation for DIN Rail Mounting
DIN rail insulator pieces provide a dedicated interface between compatible mounting hardware and the rail, supporting the required mechanical arrangement while electrically separating the DIN rail from its mounting point. This is particularly useful when constructing defined rail configurations within professional electrical distribution assemblies.
The ABB ZK90P2 is designed specifically for installation on the ZX372P2 mounting bracket and accommodates compatible 35 × 7.5 mm and 35 × 15 mm DIN rails. With fastening material included and two pieces supplied per pack, it provides a convenient ABB-engineered solution for supported distribution-board mounting configurations.
Typical Applications
- ABB low-voltage distribution assemblies.
- DIN rail insulation within compatible mounting systems.
- ABB ZX371 35 × 7.5 mm DIN rail installations.
- ABB ZX21 35 × 15 mm DIN rail installations.
- Installations using ABB ZX372P2 mounting brackets.
- Compact distribution-board interior fitting.
- Professional electrical panel and switchboard construction.
