Why Choose the ABB ZW125P4 Wall Mounting Brackets 4Pcs?

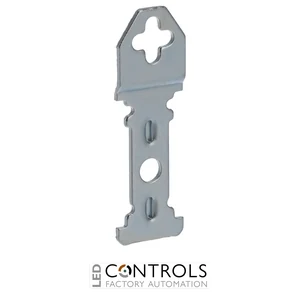

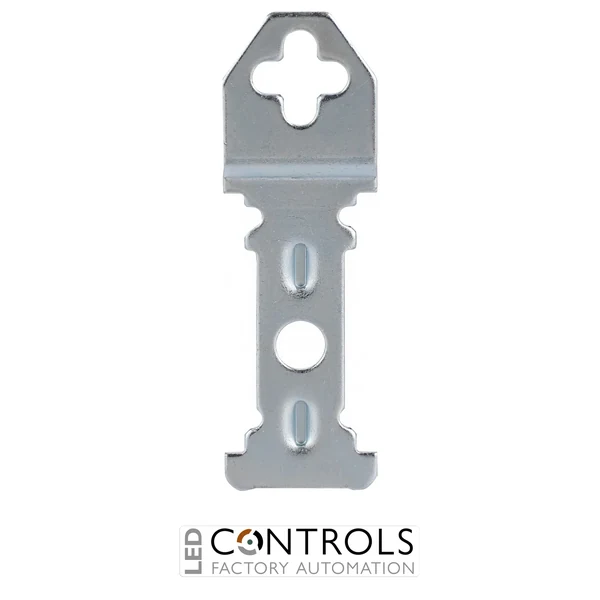

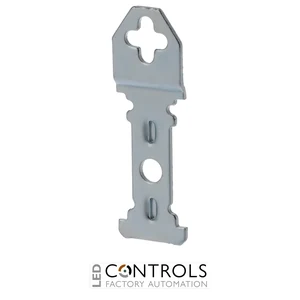

The ABB ZW125P4 is a robust and reliable external wall mounting bracket set designed for securely mounting compatible electrical distribution cabinets to walls. As part of the ABB STRIEBEL & JOHN TwinLine enclosure accessory range, these brackets provide a practical mechanical mounting solution for electrical contractors, switchboard manufacturers and industrial panel builders.
The ZW125P4 is specifically designed for use with ABB TwinLine wall-mounted and floor-standing cabinets, providing external fixing points for suitable wall mounting arrangements. Manufactured from steel, the brackets offer a durable construction suitable for professional electrical enclosure installations. Their external mounting design enables compatible cabinets to be attached to appropriate supporting wall structures.
Each bracket measures 121.8 mm high, 38.7 mm wide and 2 mm deep, providing a compact mounting accessory for compatible TwinLine enclosures. Supplied as a set of 4 wall mounting brackets, the ABB ZW125P4 is suitable for new electrical distribution cabinet installations, replacement mounting hardware and enclosure maintenance applications.
Key Advantages
- Purpose-designed external wall mounting brackets for electrical distribution cabinets.
- Compatible with ABB TwinLine wall-mounted and floor-standing enclosures.
- Durable steel construction for mechanical mounting applications.
- Provides external mounting points for securing compatible cabinets to walls.
- 121.8 mm bracket height for compatible enclosure mounting arrangements.
- Compact 38.7 mm width and 2 mm depth.
- Suitable for professional electrical enclosure installation and maintenance.
- Genuine ABB STRIEBEL & JOHN enclosure accessory.
- Supplied in a convenient set of 4 brackets.
Key Features
- ABB ZW125P4 external wall mounting bracket set.
- Designed for the ABB TwinLine cabinet system.
- Suitable for compatible wall-mounted and floor-standing cabinets.
- Steel mounting bracket construction.
- Metallic finish.
- 121.8 mm nominal external height.
- 38.7 mm nominal external width.
- 2 mm nominal external depth.
- External mounting arrangement for electrical enclosures.
- Suitable for replacement of compatible cabinet mounting brackets.
- Manufactured in Germany.
- 4 mounting brackets per set.
Reliable Wall Mounting for Electrical Distribution Cabinets
External mounting brackets are important mechanical accessories in electrical distribution cabinet installations. They provide attachment points between compatible electrical enclosures and supporting wall structures, helping ensure that cabinets are positioned and secured appropriately. Correct mounting arrangements are essential for maintaining enclosure stability and supporting safe access to electrical distribution equipment.
The ABB ZW125P4 is designed for the TwinLine enclosure system and provides a set of four steel external mounting brackets. These brackets are suitable for compatible TwinLine wall-mounted and floor-standing cabinets where wall fixing is required. Installation engineers should verify cabinet compatibility, wall construction, suitable fixing hardware and the complete installed cabinet load before mounting. The mounting arrangement must follow the relevant ABB installation instructions.
Typical Applications
- ABB TwinLine electrical distribution cabinet installations.
- Wall mounting of compatible electrical enclosures.
- Compatible TwinLine wall-mounted cabinet assemblies.
- Wall fixing arrangements for suitable TwinLine floor-standing cabinets.
- Commercial low-voltage electrical distribution installations.
- Industrial electrical switchboard construction.
- Electrical enclosure installation and refurbishment.
- Replacement of compatible external cabinet mounting brackets.
- Electrical panel building and system integration.
- Professional electrical distribution cabinet maintenance.
