Why Choose the ABB ZW143P2 Deep Mounting Bracket 2-Piece Pack?

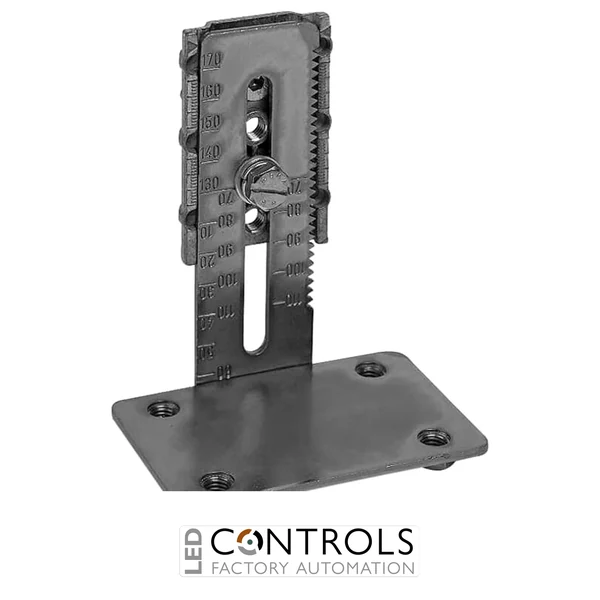

The ABB ZW143P2 is a robust and practical deep mounting bracket designed for the adjustable installation of busbar holders within low-voltage electrical distribution boards and switchgear assemblies. As part of the ABB STRIEBEL & JOHN CombiLine N distribution system accessories range, this mounting accessory provides a reliable solution for electrical panel builders and installers requiring precise positioning of busbar support components.
Specifically designed for ABB WR mounting frames, the ZW143P2 enables stepless forward and backward depth adjustment of ABB ZX152 busbar holders. This adjustable mounting arrangement helps installers position copper busbar support systems accurately within electrical enclosures, accommodating different internal assembly layouts and installation requirements.
With external dimensions of 115 × 100 × 66 mm (W × H × D), the ABB ZW143P2 provides a dedicated mechanical mounting solution for compatible busbar assemblies. Supplied as a pack of 2 brackets with fastening material, it is suitable for professional distribution board construction, switchgear manufacturing and electrical panel installation projects.
Key Advantages
- Purpose-designed deep mounting bracket for ABB WR mounting frames.
- Enables stepless depth adjustment of compatible busbar holders.
- Specifically suitable for ABB ZX152 busbar holders.
- Allows forward and backward positioning of busbar support assemblies.
- 115 × 100 × 66 mm dimensions for defined mounting arrangements.
- Fastening material included for convenient installation.
- Supports accurate alignment of busbar holders within electrical distribution enclosures.
- Helps accommodate different internal mounting depths and assembly configurations.
- Part of the ABB STRIEBEL & JOHN CombiLine N accessories range.
- Pack of 2 brackets suitable for compatible busbar mounting assemblies.
Key Features
- ABB ZW143P2 deep mounting bracket for electrical distribution systems.
- Designed specifically for WR mounting frame installations.
- Stepless forward and backward adjustment of busbar holder mounting depth.
- Compatible with ABB ZX152 busbar holders.
- 115 mm external width.
- 100 mm external height.
- 66 mm external depth.
- Mechanical mounting accessory for busbar support systems.
- Supplied with fastening material.
- Suitable for low-voltage distribution board and switchgear assembly.
- Designed for integration into compatible ABB distribution system structures.
- 2 individual mounting brackets per pack.
Reliable Adjustable Busbar Mounting for Electrical Distribution Systems
Busbar support systems require secure mechanical mounting and accurate positioning within electrical distribution boards. The ABB ZW143P2 is specifically designed to provide stepless depth adjustment for ABB ZX152 busbar holders installed on compatible WR mounting frames. This enables panel builders to adjust the position of the busbar support assembly without being restricted to predetermined mounting steps.
The bracket's adjustable configuration is particularly useful when aligning busbar holders with surrounding electrical equipment, mounting structures and enclosure components. By providing a dedicated mounting arrangement for the ZX152 holder, the ZW143P2 supports consistent assembly and efficient use of available installation space. The included fastening material assists with installation, while correct mounting and busbar clearances should be established in accordance with ABB assembly instructions.
Typical Applications
- Low-voltage electrical distribution boards and sub-distribution assemblies.
- ABB WR mounting frame installations.
- Mounting and positioning of ABB ZX152 busbar holders.
- Adjustable copper busbar support arrangements.
- Commercial and industrial switchgear construction.
- Electrical panel assembly requiring adjustable mounting depth.
- Busbar support system alignment within electrical enclosures.
- ABB STRIEBEL & JOHN CombiLine N distribution assemblies.
- Distribution board refurbishment and busbar system modifications.
- Professional electrical panel-building and switchgear manufacturing.
