Why Choose the ABB ZW349P10 Mounting Angle for 185 mm Busbar Systems?
The ABB ZW349P10 Mounting Angle (ABB order code 2CPX062485R9999) is a purpose-designed mounting accessory for ABB STRIEBEL & JOHN electrical distribution systems. Supplied as a pack of 10 mounting brackets, it provides a practical mounting solution for busbar modules with a 185 mm busbar centre spacing, used in conjunction with the ABB ZX522 busbar holder and compatible WR mounting frames.
Part of ABB's CombiLine interior expansion system, the ZW349P10 is designed to support the installation of busbar equipment within modular electrical distribution assemblies. Its angled mounting profile provides a defined mechanical interface between compatible busbar support components and the WR mounting frame, helping installers achieve consistent positioning during panel assembly.

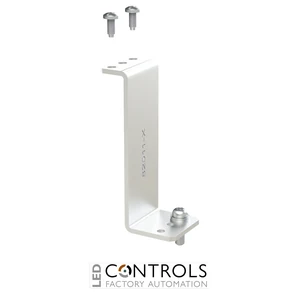

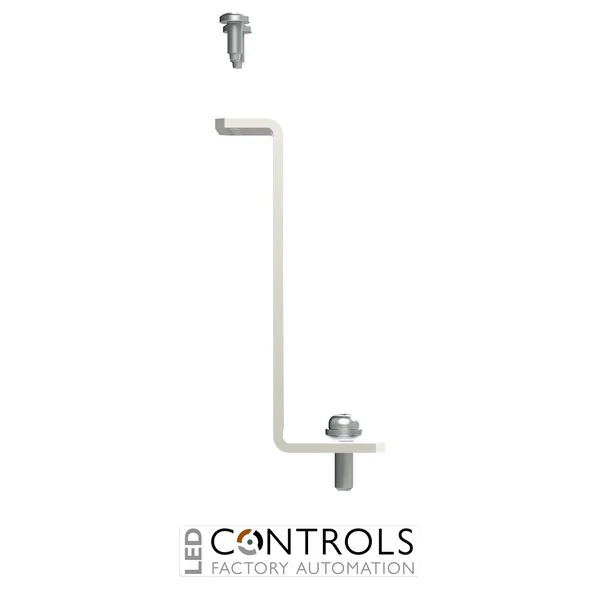

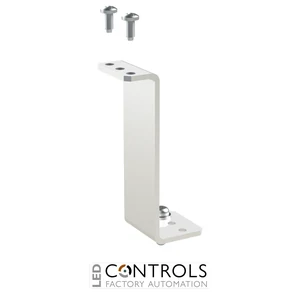

Each mounting angle has nominal external dimensions of 103 × 53 × 37 mm (width × height × depth). The ZW349P10 is supplied in a convenient 10-piece pack, making it particularly suitable for electrical panel builders, switchboard manufacturers and contractors working on multiple busbar mounting positions. It is a mechanical mounting component rather than a current-carrying busbar or electrical switching device.
Key Advantages
- Designed for ABB busbar systems: Provides a compatible mounting solution for specified ABB STRIEBEL & JOHN distribution assemblies.
- 185 mm busbar centre spacing: Specifically intended for busbar module arrangements using this standard spacing.
- ZX522 busbar holder compatibility: Supports installation of the designated ABB busbar holder.
- WR mounting frame integration: Designed for use with compatible ABB WR mounting structures.
- Pack of 10: Provides multiple mounting angles for panel assembly and installation projects.
- Compact angled profile: Facilitates positioning of busbar support components within the distribution assembly.
- Manufacturer-defined compatibility: Helps simplify component selection within the ABB mounting system.
- Suitable for modular construction: Supports systematic assembly of electrical distribution panels.
- Consistent component dimensions: Helps installers reproduce approved mounting arrangements.
- Useful for new installations and modifications: Suitable for compatible distribution panel construction and refurbishment.
- Part of the ABB CombiLine system: Integrates with a wider range of modular distribution components.
- Dedicated mechanical accessory: Provides a mounting function without introducing an additional electrical switching element.
Key Features
- ABB STRIEBEL & JOHN mounting angle.
- Manufacturer type: ZW349P10.
- ABB order code: 2CPX062485R9999.
- Mounting accessory for busbar modules.
- Designed for 185 mm busbar centre spacing.
- For use with ABB ZX522 busbar holders.
- Compatible with ABB WR mounting frames.
- Associated with ML21B–ML33B busbar equipment in ABB's distribution catalogue.
- Part of the interior expansion system.
- Angled mounting bracket construction.
- Nominal width: 103 mm.
- Nominal height: 53 mm.
- Nominal depth: 37 mm.
- Pack quantity: 10 pieces.
- Packaged as one set of 10 mounting angles.
- Suitable for modular electrical distribution assemblies.
- Mechanical mounting function.
- Designed for professional panel building and switchboard assembly.
Technical Specifications
- Manufacturer: ABB
- Brand / product family: ABB STRIEBEL & JOHN
- Product designation: ZW349P10
- ABB order code: 2CPX062485R9999
- Product group: DESUJ Sub Distribution
- Product type: Mounting angle / mounting bracket
- Accessory classification: Electrical distribution system mounting accessory
- System: CombiLine interior expansion system
- Primary application: Mounting of busbar support equipment
- Busbar centre spacing: 185 mm
- Compatible busbar holder: ABB ZX522
- Compatible mounting structure: ABB WR mounting frame
- Associated busbar equipment: ML21B–ML33B
- Nominal external width: 103 mm
- Nominal external height: 53 mm
- Nominal external depth: 37 mm
- Dimensions (W × H × D): 103 × 53 × 37 mm
- Quantity per pack: 10
- Supply unit: Pack
- Packaging length: 75 mm
- Packaging width: 40 mm
- Packaging depth: 135 mm
- Packaging gross weight: 1.385 kg
- Country of origin: Czech Republic
- Commodity code: 73269098
- EAN / GTIN: 4011617624851
- Related single-piece product: ABB ZW349
- Related single-piece order code: 2CPX067951R9999
- Electrical function: None – mechanical mounting accessory
- Installation: Within compatible ABB distribution panel mounting systems
Reliable Mounting Support for ABB 185 mm Busbar Distribution Systems
The ABB ZW349P10 is intended to provide a defined mechanical mounting arrangement for busbar modules within compatible ABB distribution systems. Its principal application is the installation of the ZX522 busbar holder on an ABB WR mounting frame where the busbar module uses a 185 mm centre-to-centre spacing.
Busbar support arrangements are an important part of electrical distribution panel construction. Correct positioning helps maintain the intended geometry of the busbar assembly and supports installation in accordance with the manufacturer's system design. The ZW349P10 forms part of this mechanical mounting arrangement and should be installed using the specified compatible components.
The angled bracket profile provides a compact mounting interface within the enclosure. With nominal dimensions of 103 × 53 × 37 mm, the component is designed for use in the modular interior expansion system rather than as a general-purpose external fixing bracket.
ABB identifies the ZW349P10 for use with the WR mounting frame and the ZX522 busbar holder. Its compatibility with the 185 mm busbar module arrangement makes it relevant to panel builders assembling or maintaining supported busbar distribution equipment.
The product is supplied as a 10-piece pack. This packaging format is useful when multiple mounting positions must be equipped during switchboard construction or when a consistent supply of matching brackets is required across a panel-building project.
For installations requiring only a single mounting angle, ABB also lists the related ZW349 under order code 2CPX067951R9999. The ZW349P10 is the corresponding pack-of-ten variant, allowing the appropriate supply quantity to be selected for the project.
The mounting angle itself does not provide electrical insulation, overcurrent protection, switching or conductor termination. The complete busbar assembly must use the correct busbar holders, mounting frames, insulating components and protective arrangements specified by ABB for the installation.
During assembly, installers should follow the manufacturer's mounting instructions for the ZW348/ZW349/ZX376 accessory family and verify that the selected busbar holder, WR frame and associated distribution components are compatible. Correct mechanical installation is essential for maintaining the intended configuration of the finished electrical distribution assembly.
