Why Choose the ABB ZX248P10 M5 Inlay Nut?

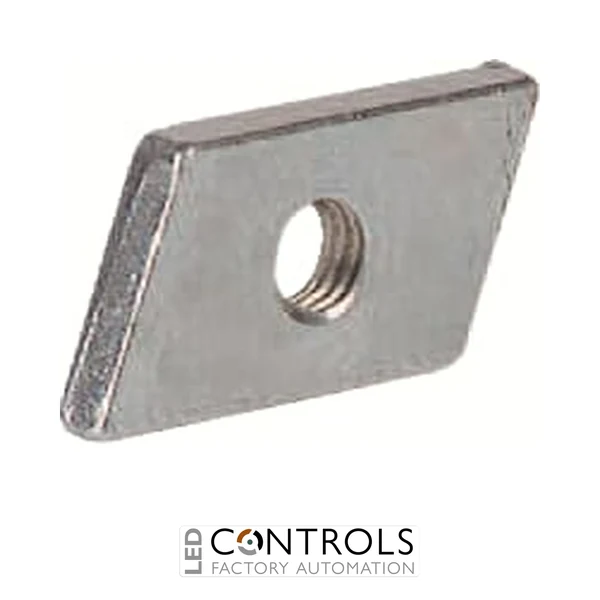

The ABB ZX248P10 is a specialist M5 inlay nut for aluminium profile rails, designed to provide a secure threaded fixing point within compatible electrical distribution assemblies. Identified by ABB order code 2CPX062509R9999, this accessory belongs to the ABB DESUJ Sub Distribution product group and forms part of the ABB Striebel & John range of electrical enclosure installation components.
Featuring a compact 20 × 14 × 4 mm design with an M5 metric internal thread, the ZX248P10 is suitable for aluminium profile rail No. 1 (25 × 14 mm) and profile rail No. 2 (25 × 20 mm). The inlay nut fits into the appropriate profile channel, creating a threaded attachment point for compatible M5 fasteners and mounted components.
Manufactured from galvanised steel and supplied as a pack of 10 inlay nuts, the ABB ZX248P10 is a practical choice for electrical contractors, switchboard manufacturers and maintenance engineers. Its dedicated profile rail compatibility makes it particularly useful for mounting internal fittings and equipment within ABB electrical distribution and enclosure systems.
Key Advantages
- M5 metric internal thread provides a defined fixing point for compatible M5 screws.
- Pack of 10 inlay nuts supports electrical panel assembly and maintenance projects.
- 20 × 14 × 4 mm dimensions suit specified aluminium profile rail channels.
- Compatible with profile rails No. 1 and No. 2 in the ABB installation system.
- Galvanised steel construction provides a protective surface finish.
- Designed for mechanical fastening within compatible electrical distribution assemblies.
- Provides a convenient threaded connection point without requiring a permanently fixed nut on the rail.
- Supports organised mounting of suitable enclosure fittings and internal equipment.
- Useful for new installations, equipment modifications and replacement work.
- Part of the ABB DESUJ Sub Distribution accessory range.
Key Features
- ABB ZX248P10 M5 inlay nut.
- ABB order code 2CPX062509R9999.
- DESUJ Sub Distribution product group.
- ABB Striebel & John interior fitting accessory.
- 10 inlay nuts per pack.
- M5 metric internal thread.
- 20 mm length.
- 14 mm width.
- 4 mm thickness.
- Steel construction with galvanised surface protection.
- Suitable for aluminium profile rail No. 1, 25 × 14 mm.
- Suitable for aluminium profile rail No. 2, 25 × 20 mm.
- Designed to be inserted into compatible profile rail channels.
- Provides an internal threaded fixing point for suitable mounting hardware.
- Suitable for professional electrical enclosure and distribution board assembly.
Secure M5 Fastening for Aluminium Profile Rail Systems
Aluminium profile rails are commonly used within electrical enclosure assemblies to support mounting structures and internal equipment. Correctly matched fastening accessories are essential for attaching components without compromising the intended installation arrangement. The ABB ZX248P10 M5 inlay nut provides a dedicated threaded connection point within compatible aluminium profile channels.
The ZX248P10 is specifically dimensioned for profile rail No. 1 (25 × 14 mm) and profile rail No. 2 (25 × 20 mm). Its 20 × 14 × 4 mm form allows it to be positioned within the designated rail channel, where it can accept a compatible M5 fixing screw. This arrangement supports practical component attachment during electrical panel construction and modification.
With a galvanised steel finish and convenient 10-piece packaging, the ZX248P10 is suitable for professional installation projects requiring multiple threaded fastening points. The correct screw length, tightening torque, component load and rail compatibility should be confirmed against the relevant ABB technical documentation before installation.
Typical Applications
- ABB aluminium profile rail No. 1 mounting arrangements.
- ABB aluminium profile rail No. 2 mounting arrangements.
- Electrical distribution board interior fitting systems.
- Low-voltage switchgear and electrical enclosure assemblies.
- Mounting of compatible components using M5 threaded fasteners.
- Electrical control cabinet construction.
- Switchboard and electrical panel manufacturing.
- Mechanical fastening within compatible aluminium rail channels.
- Electrical enclosure refurbishment and modification.
- Replacement of matching M5 profile rail inlay nuts.
- Professional electrical installation and maintenance projects.
